Audible Warning Device

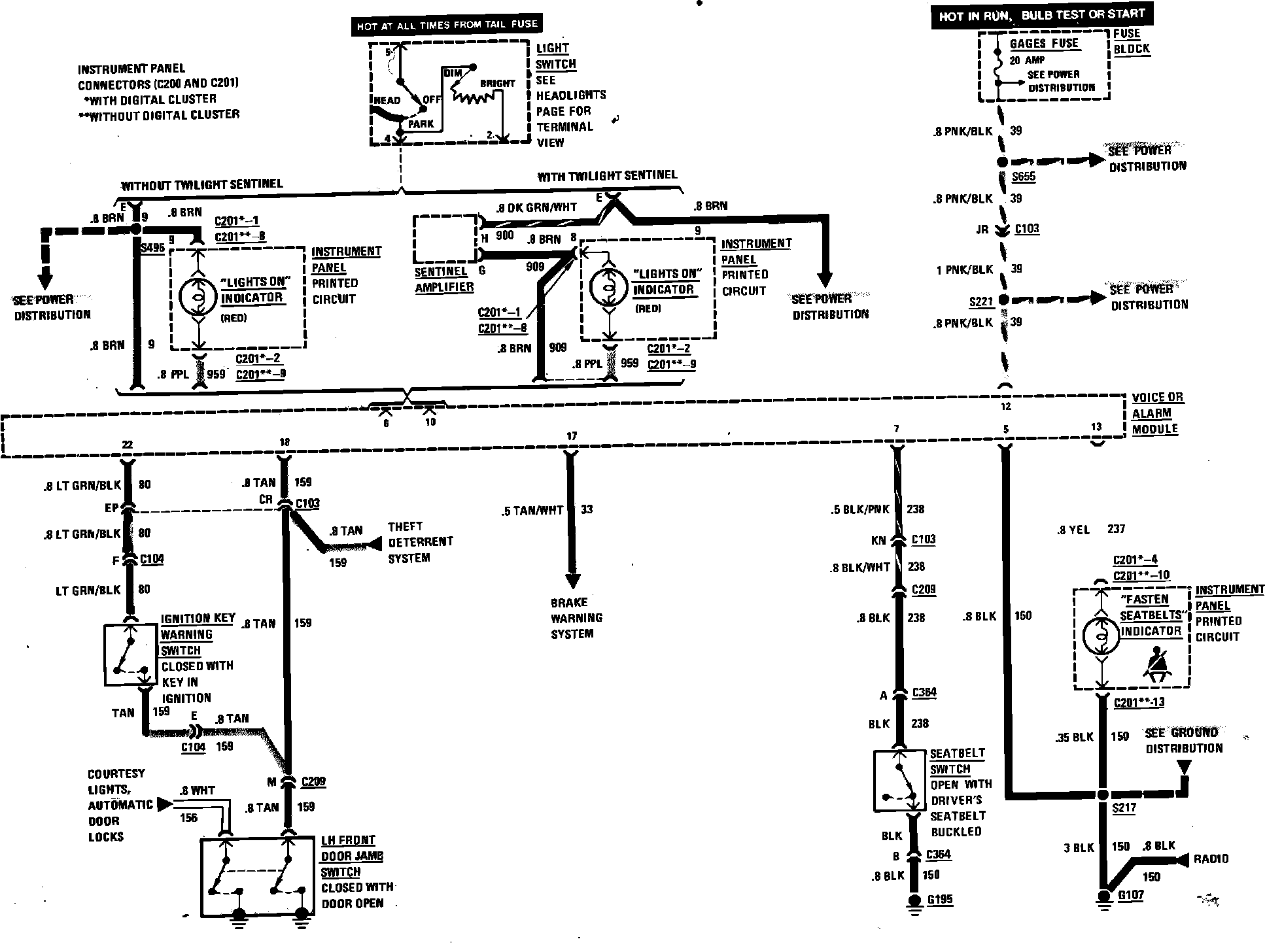

Voice Alarm Information System Wiring Circuit:

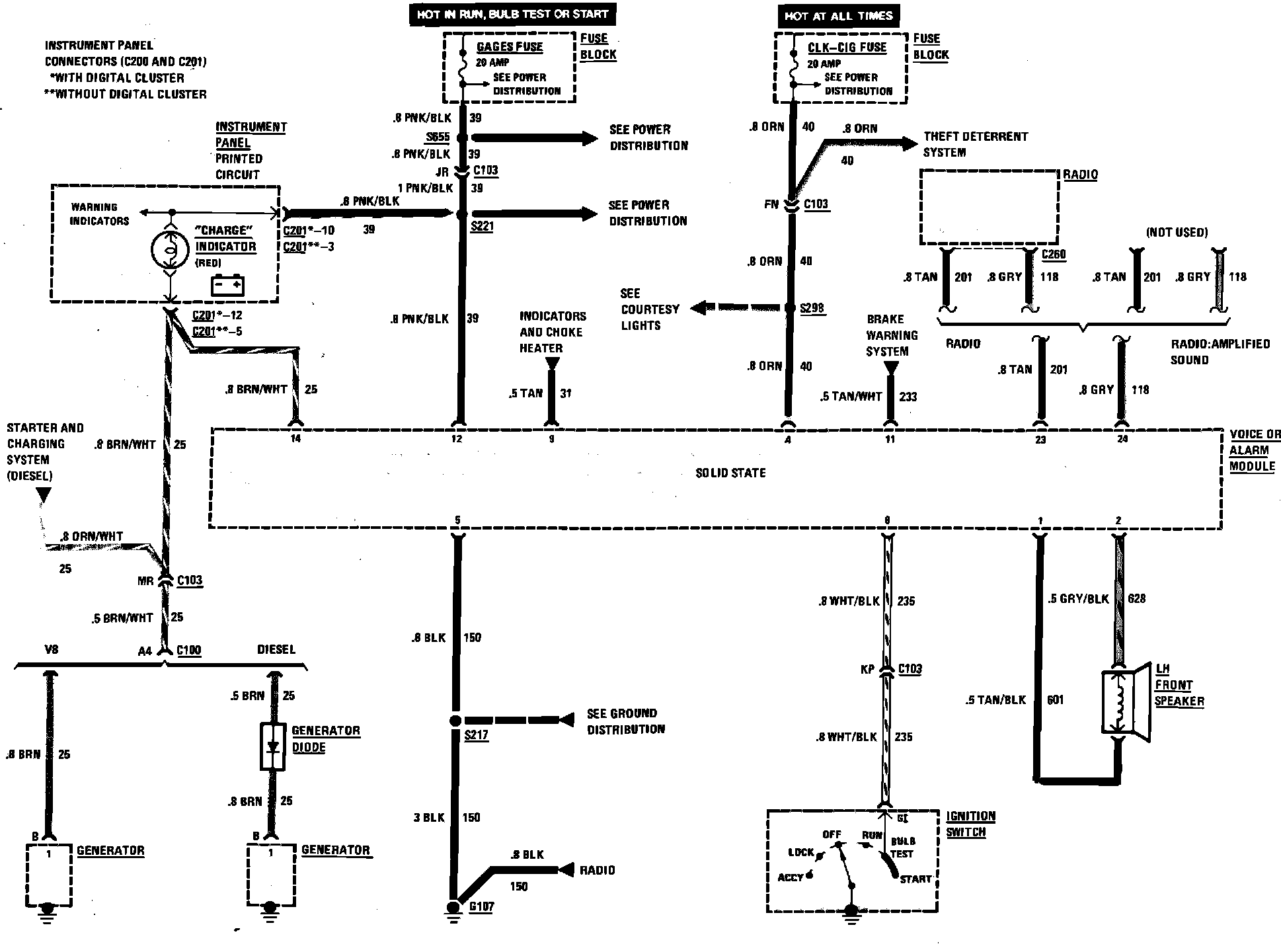

Voice Alarm Information System Wiring Circuit:
Voice Alarm Information System Wiring Circuit:
