Home >> Oldsmobile >> 1985 >> Toronado V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Panel >> With Standard Cluster

With Standard Cluster

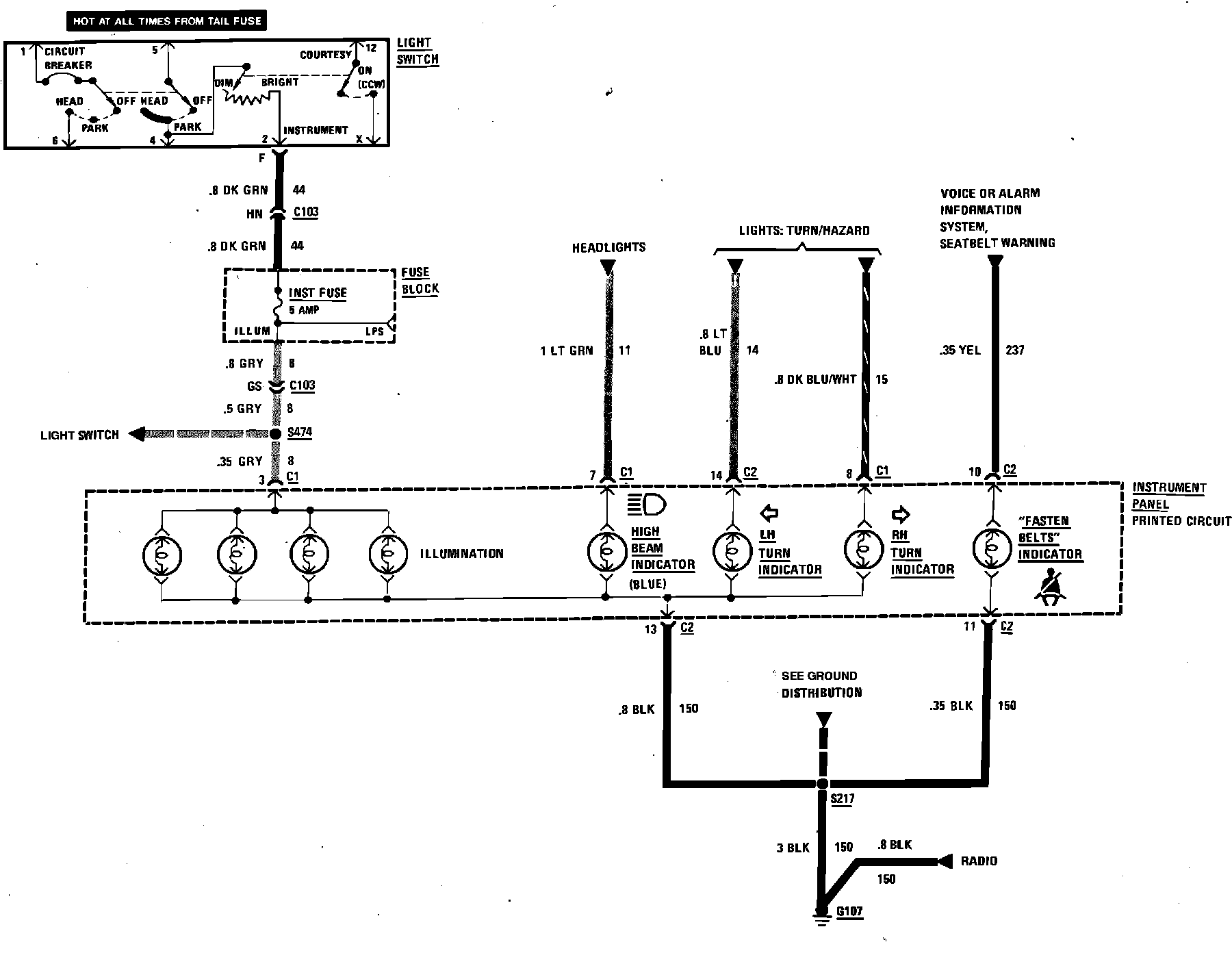

Instrument Panel Wiring Circuit With Standard Cluster:

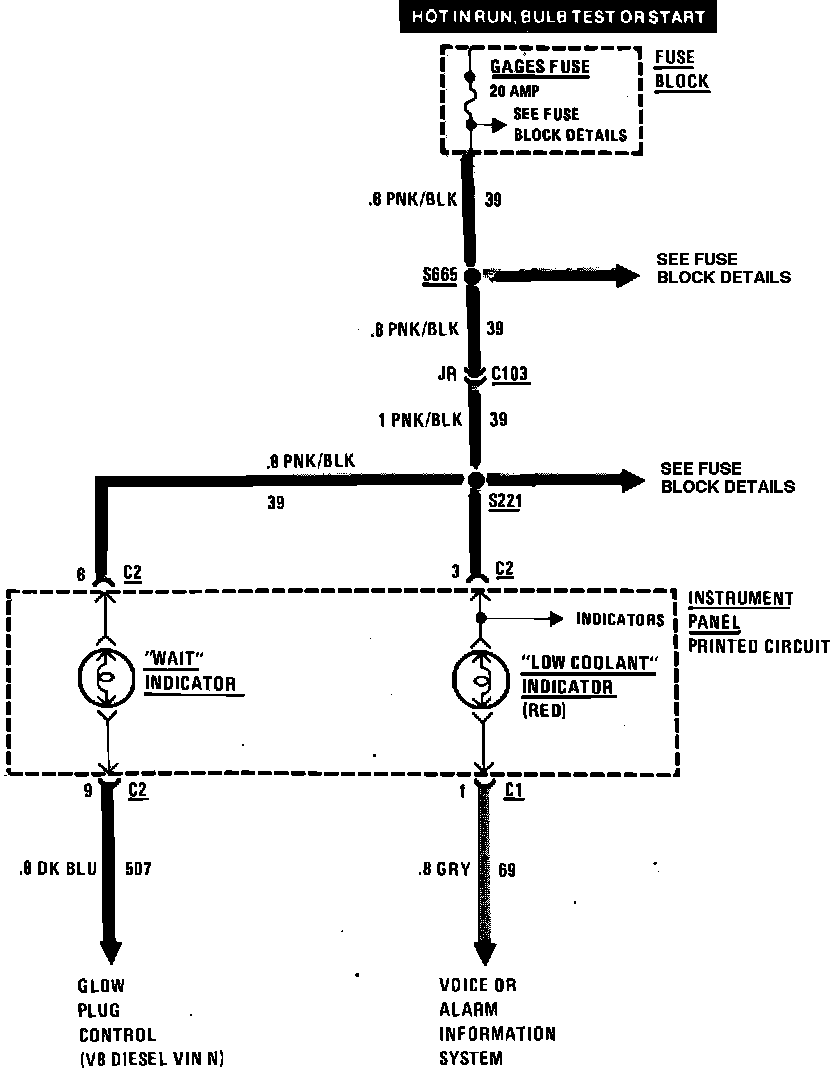

Instrument Panel Wiring Circuit With Standard Cluster:

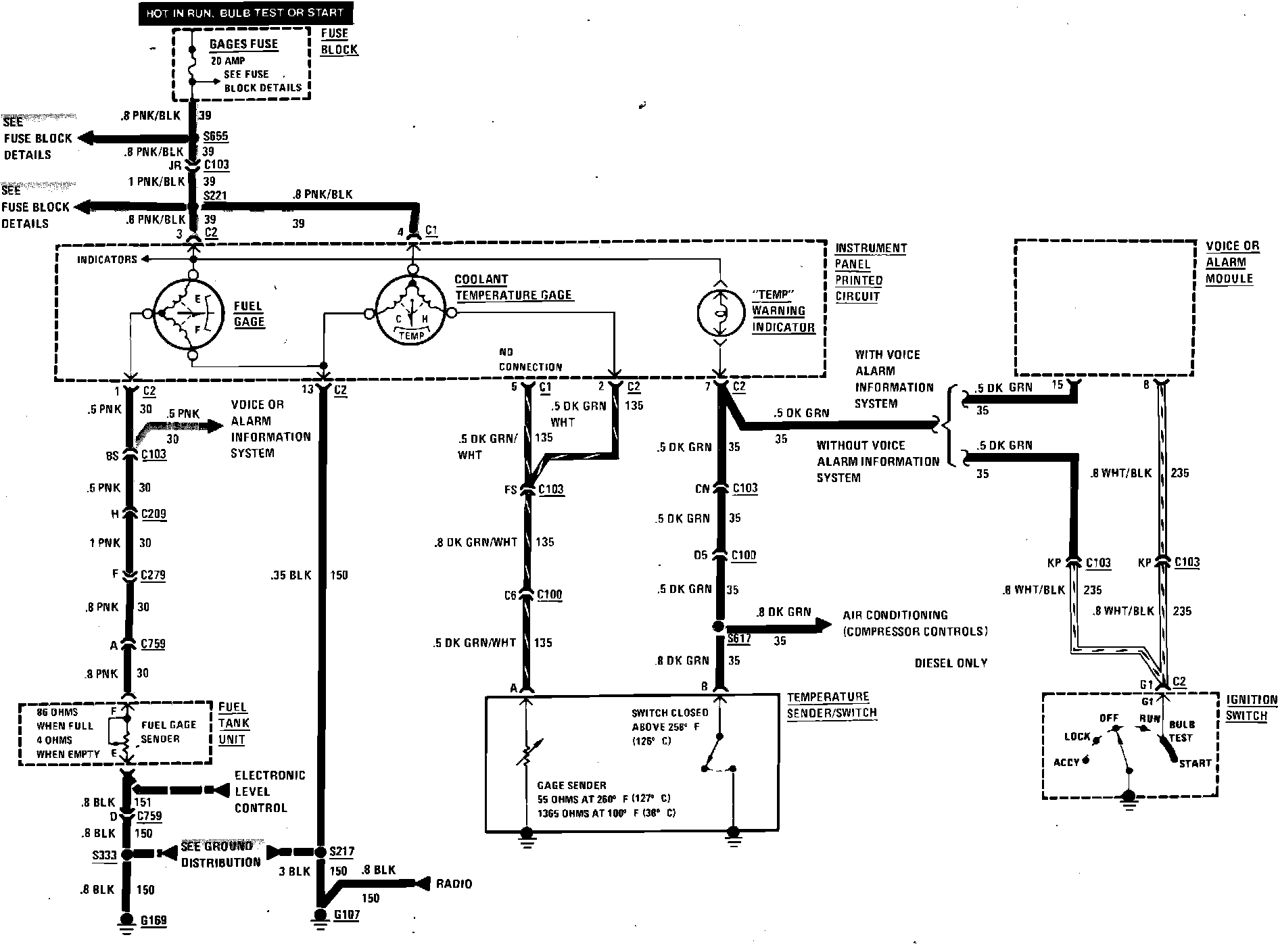

Instrument Panel Wiring Circuit With Standard Cluster:

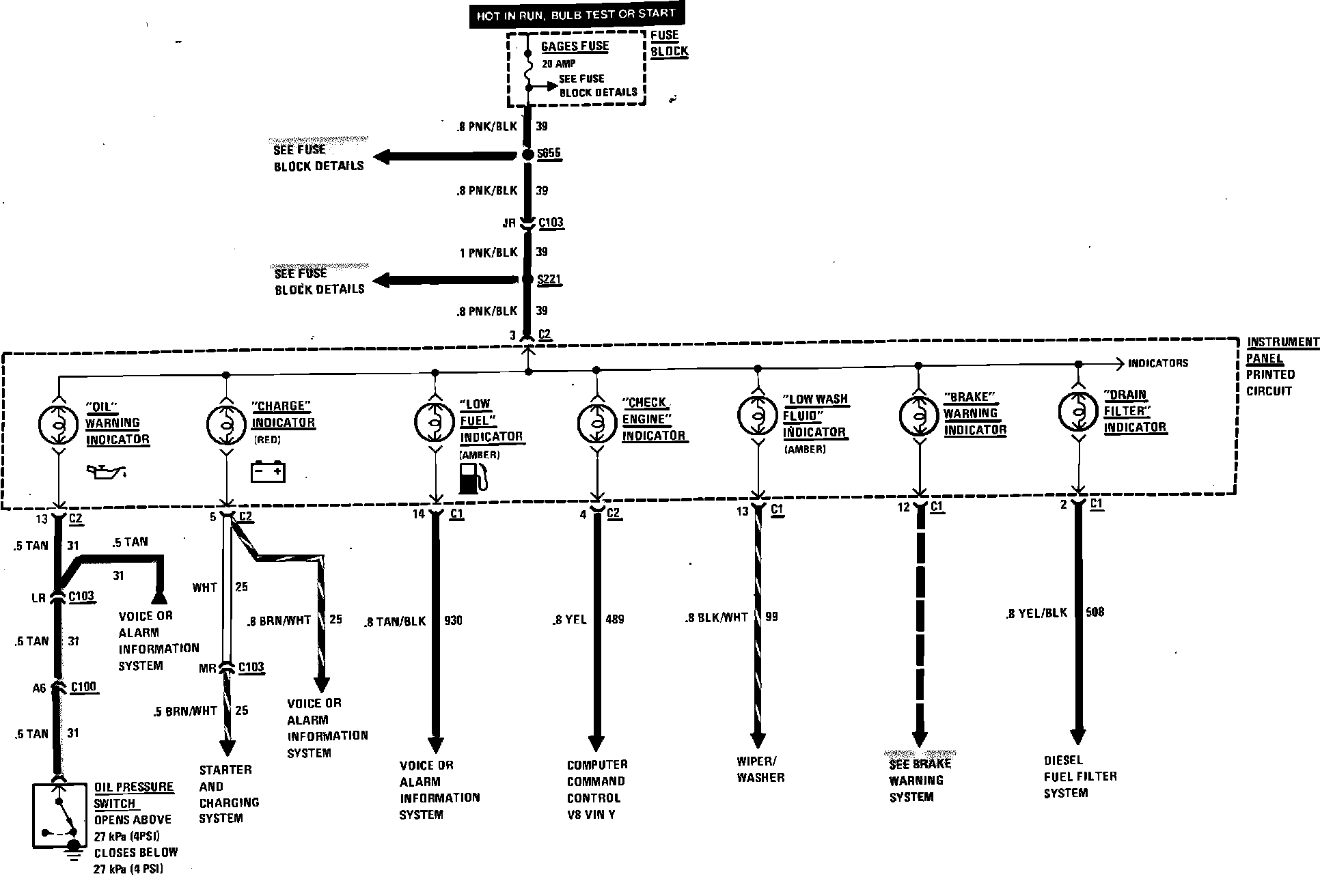

Instrument Panel Wiring Circuit With Standard Cluster:
