Radio, Stereo, and Compact Disc

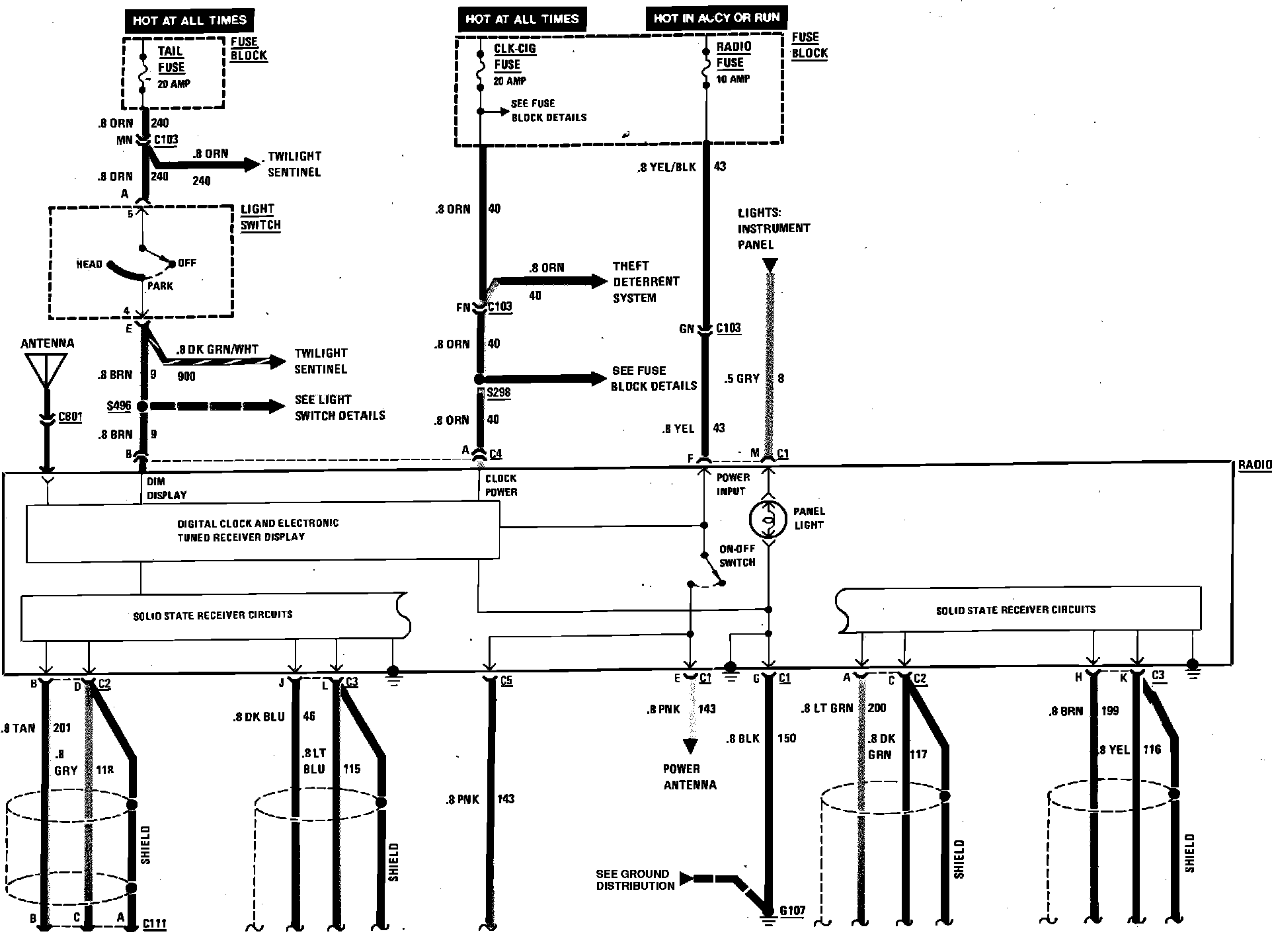

Amplified Door Mounted Speaker Wiring Circuit:

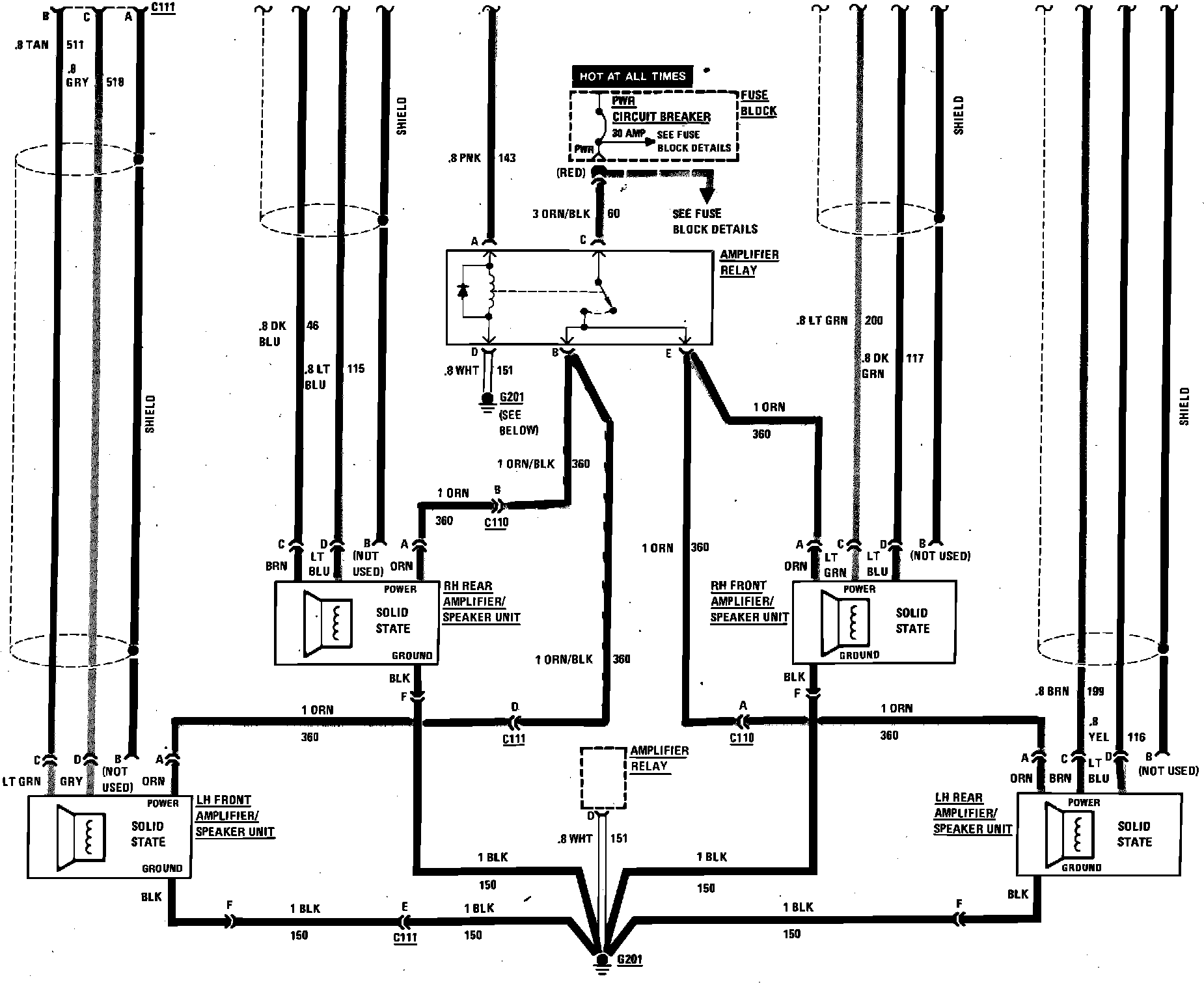

Amplified Door Mounted Speaker Wiring Circuit:
