Home >> Oldsmobile >> 1985 >> Toronado V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> With All Weather Air Conditioning

With All Weather Air Conditioning

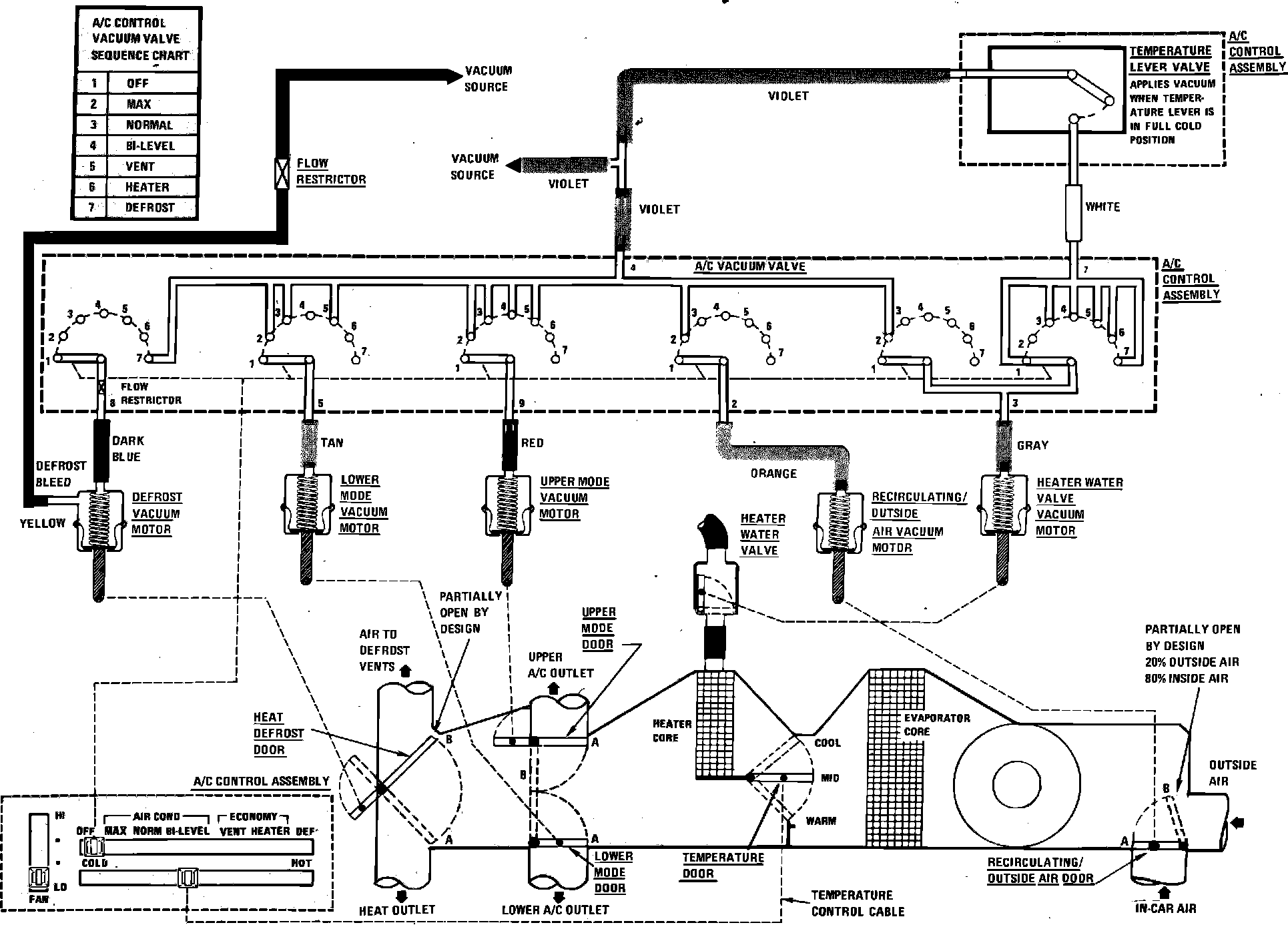

Air Conditioning Vacuum Circuit With All Weather Air Conditioning:
