Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1985
>>
Toronado V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
With Tempmatic Air Conditioning
With Tempmatic Air Conditioning

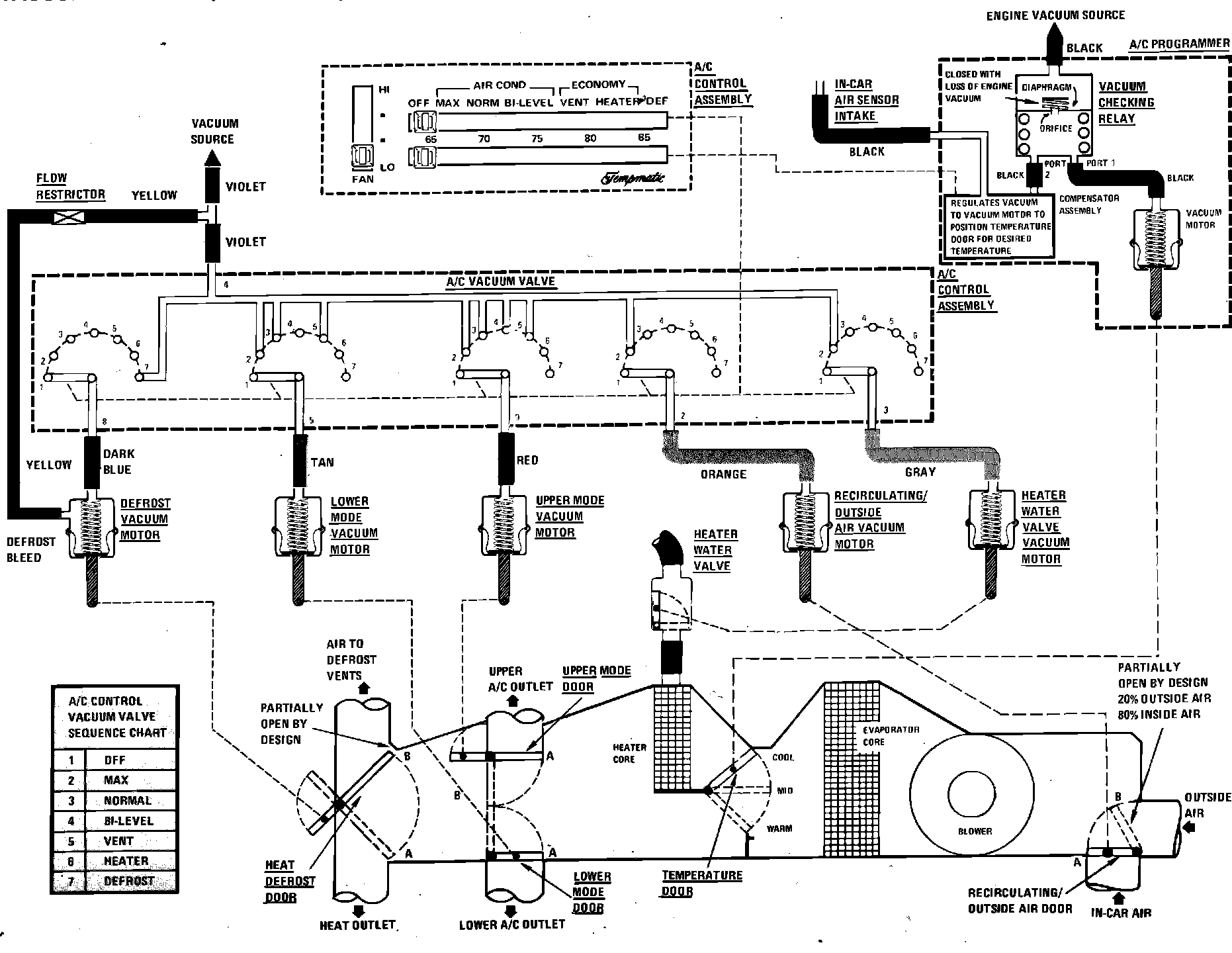

Air Conditioning Vacuum Circuit With Tempmatic Air Conditioning:
