Clock

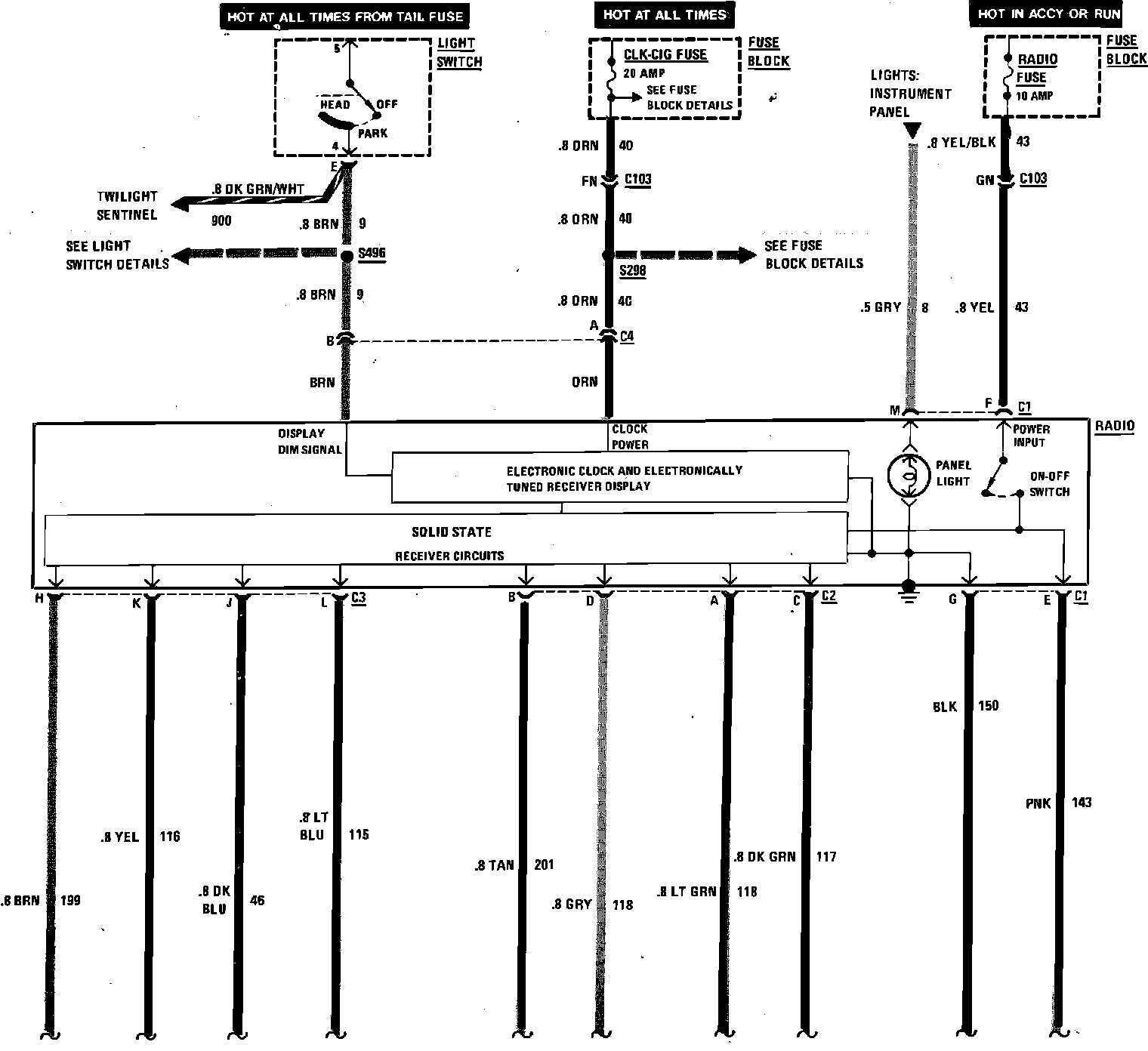

Radio (Less Delco Bose) & Digital Clock Wiring Circuit:

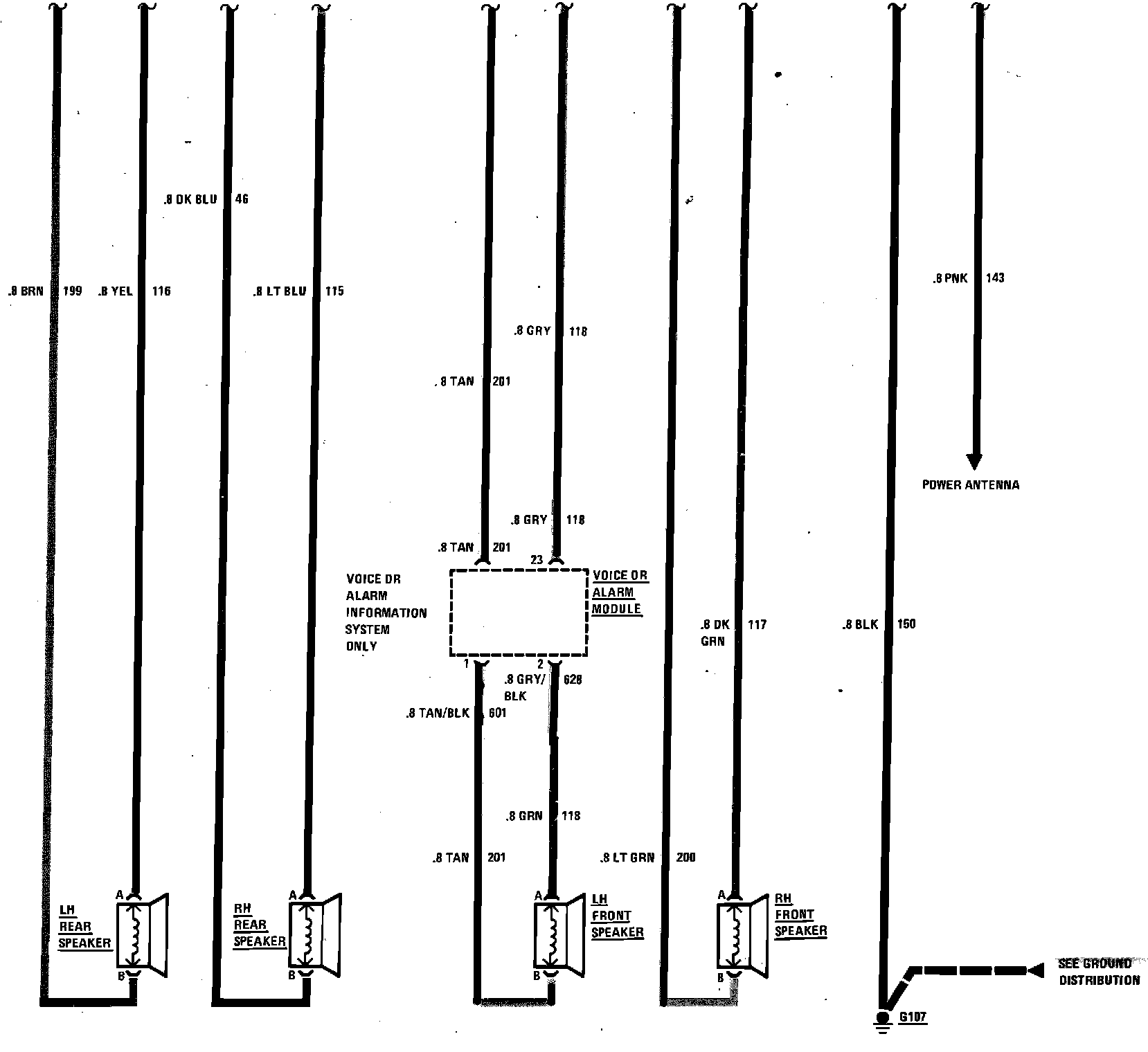

Radio (Less Delco Bose) & Digital Clock Wiring Circuit:
