Oil Pressure Sender

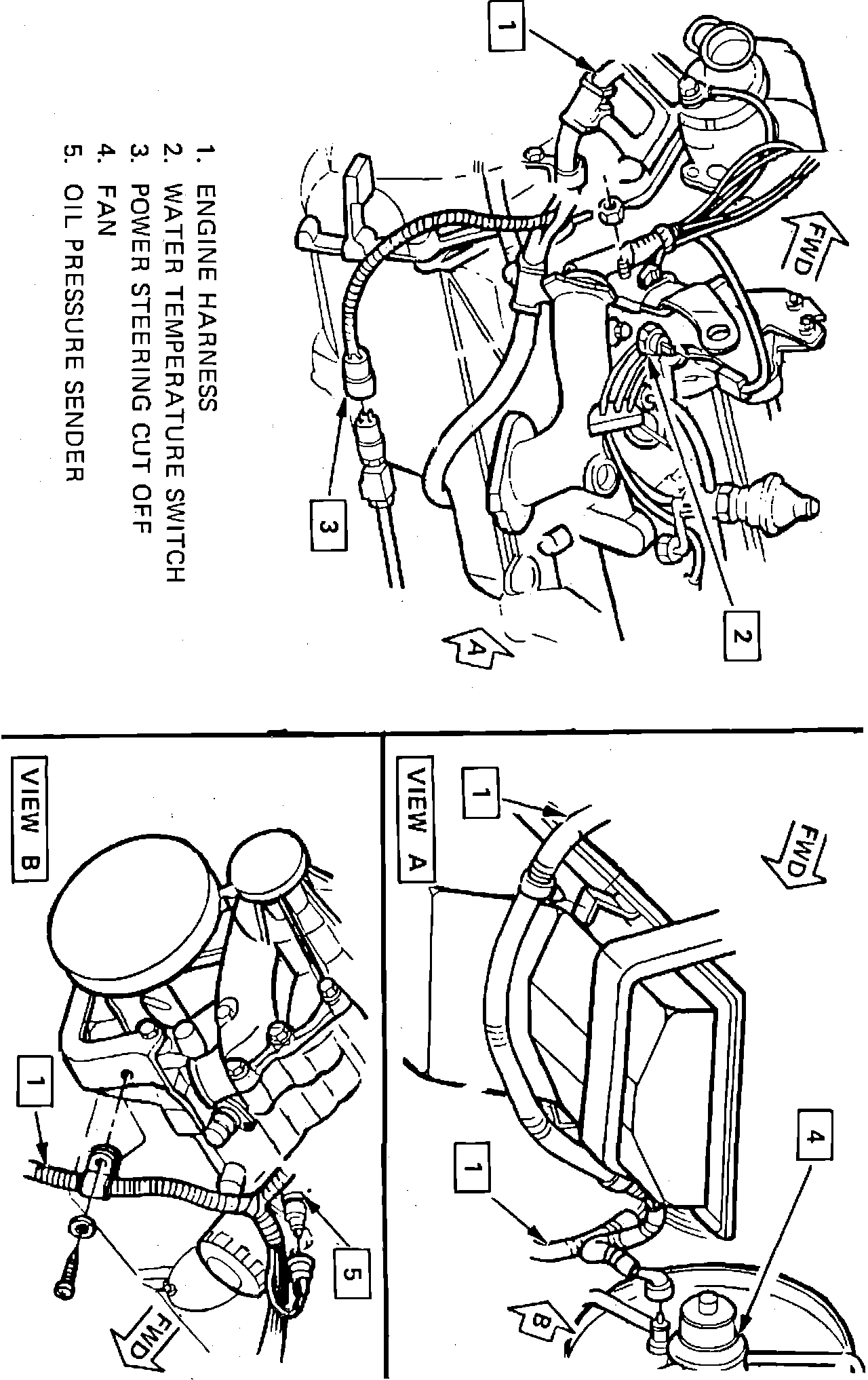

Engine Wire Harness Rear View.:




Above Oil Filter

Applicable to: V6-173, VIN X Engine
