Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1986
>>
Ciera Cruiser V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

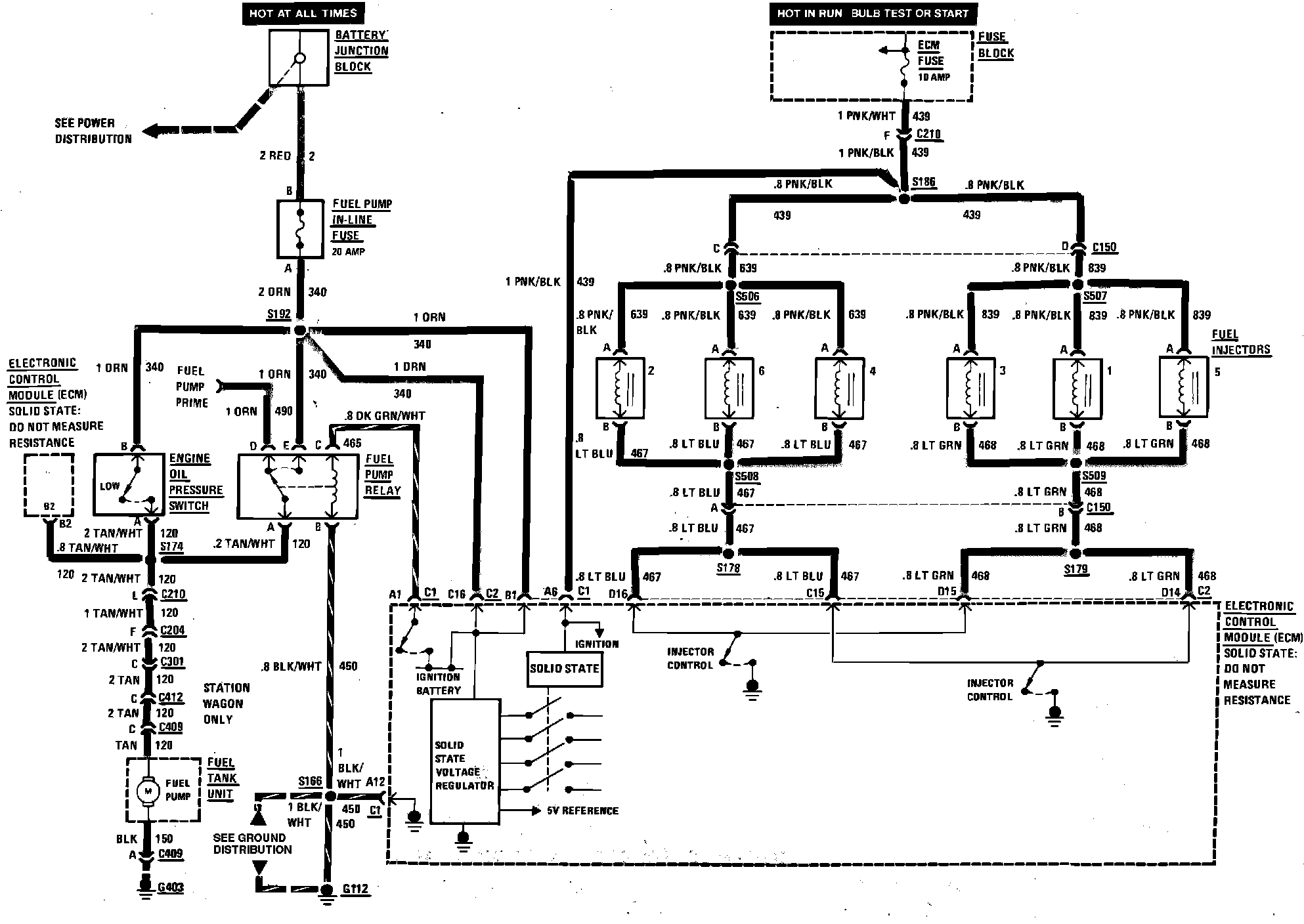

Multi-Point Fuel Injection Wiring Circuit (Fuel Control & Fuel Injectors) VIN W:
