License Plate Lamp
License Plate Lamp

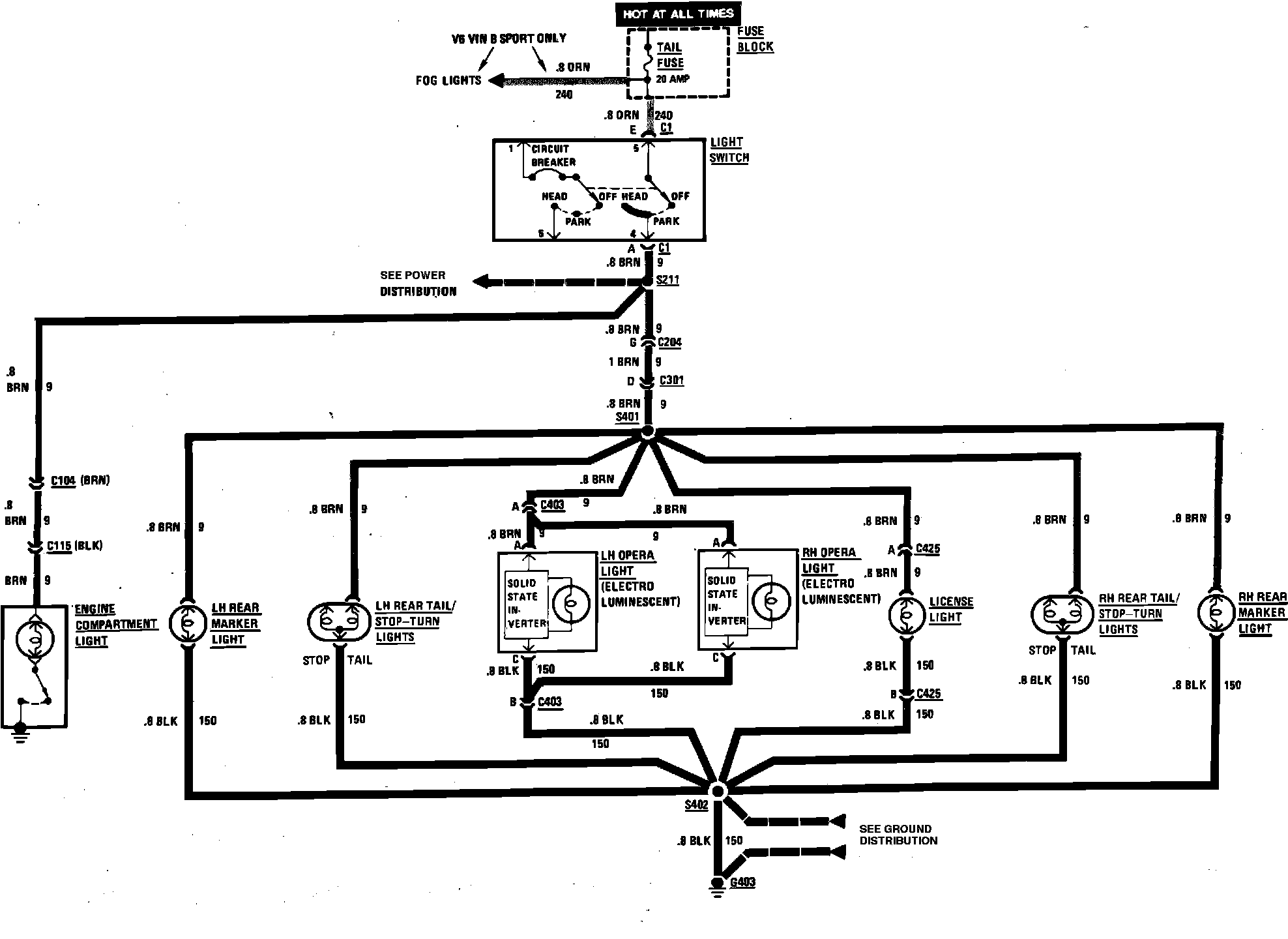

License Plate, Opera, Rear Marker, Tail & Underhood Lamp Wiring Circuit:
