Malfunction Indicator Lamp
Malfunction Indicator Lamp

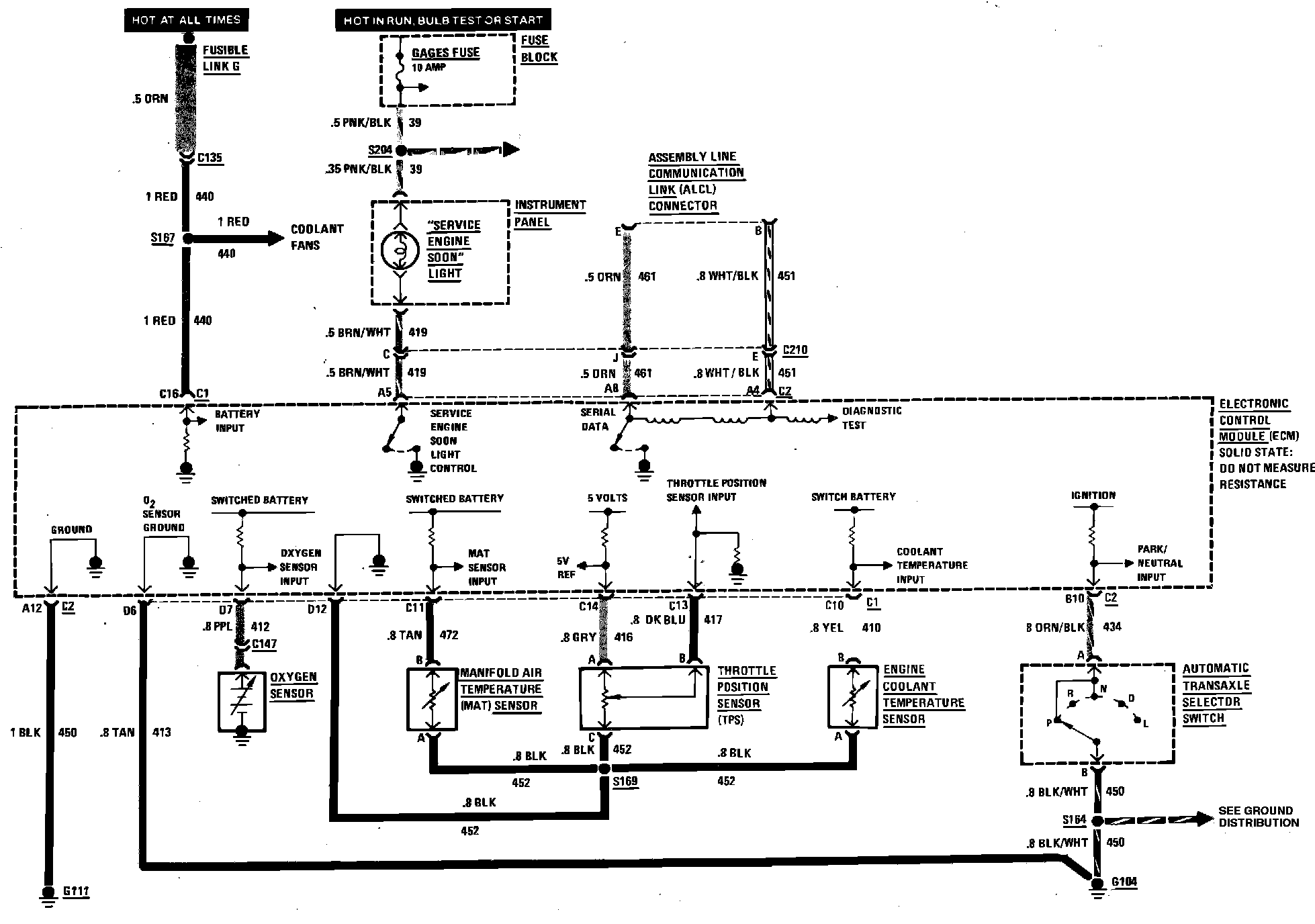

Sequential Fuel Injection Wiring Circuit (Auto. Trans. Selector Switch, Engine Data Sensors & Service Engine Soon Lamp):
