With A/C Less Heavy Duty Cooling

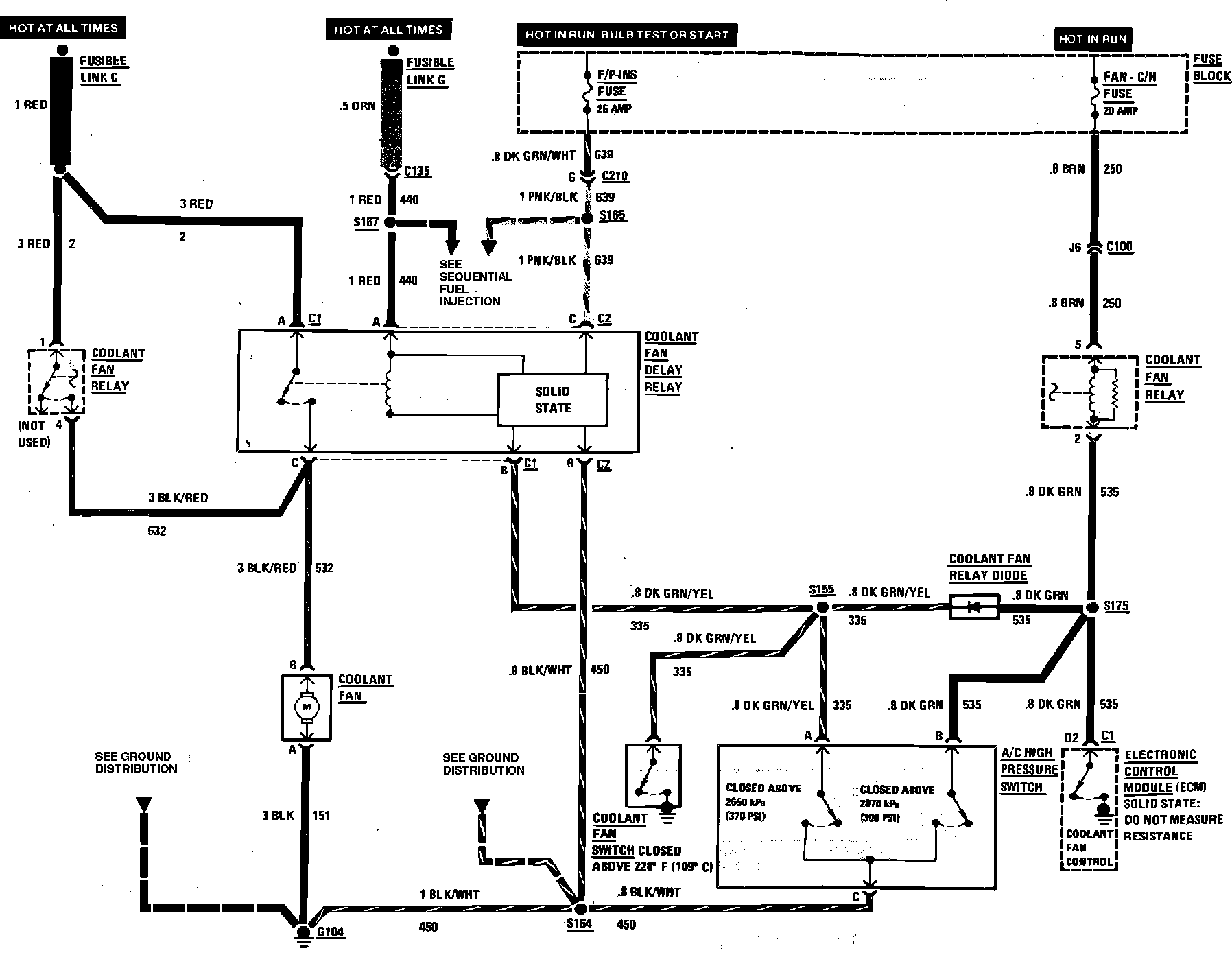

Engine Cooling Fan Wiring Circuit (With A/C Less Heavy Duty Cooling):
