Air Flow Meter, Emission Controls & Spark Control
Air Flow Meter, Emission Controls & Spark Control

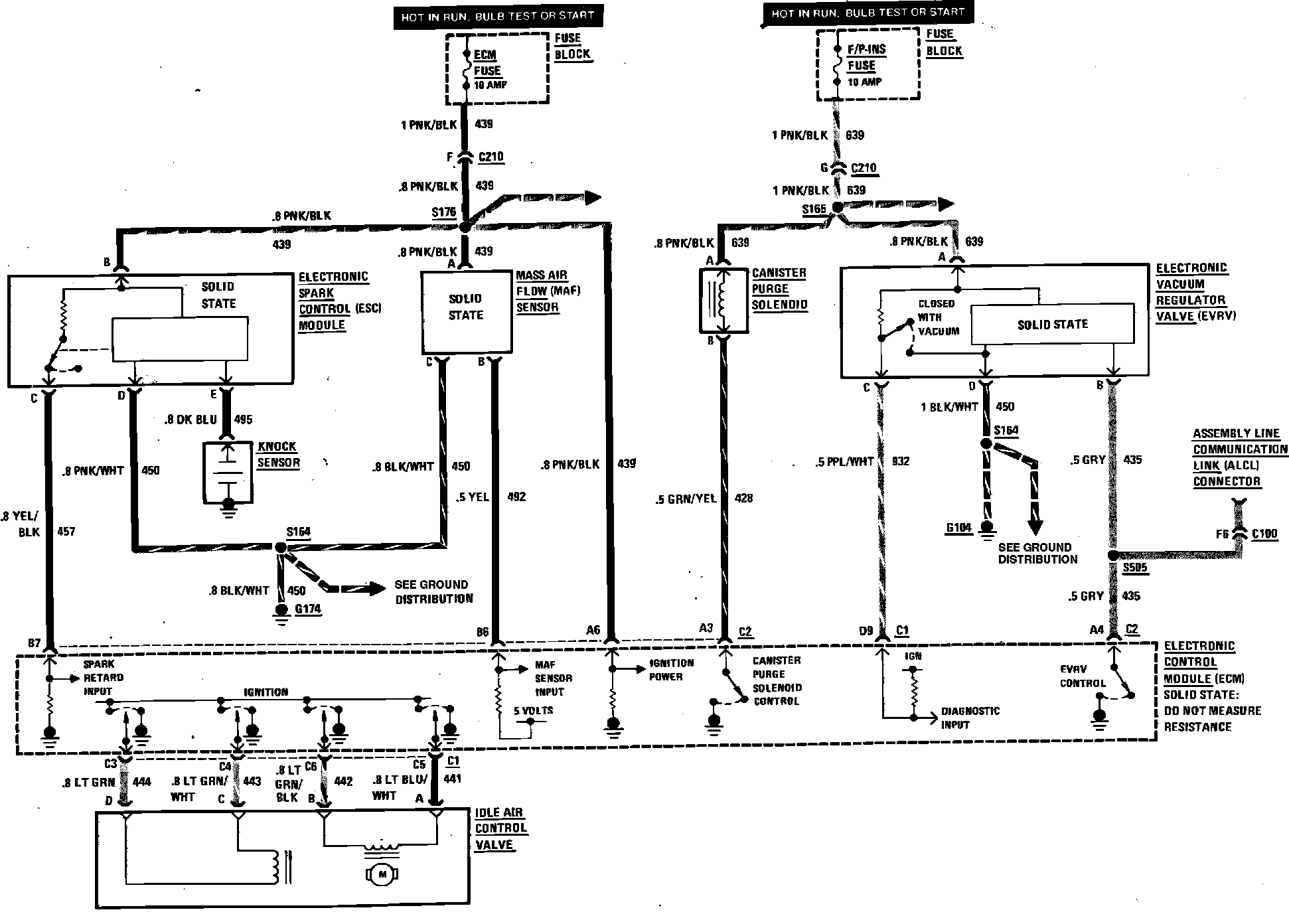

Sequential Fuel Injection Wiring Circuit (Air Flow Meter, Emission Controls & Spark Control):
