Starting and Charging

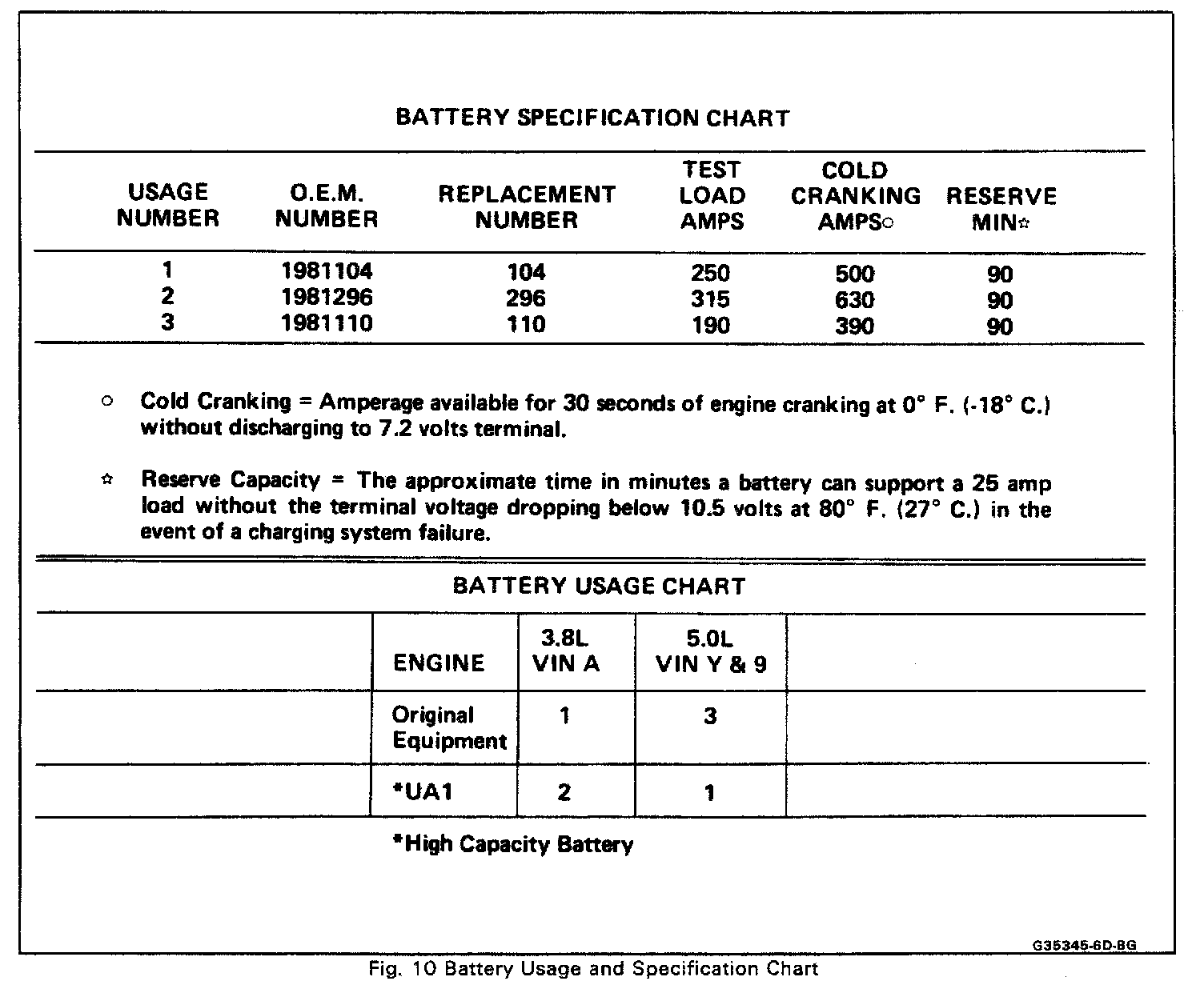

BATTERY SPECIFICATIONS





ALTERNATOR SPECIFICATIONS





ALTERNATOR TORQUE SPECIFICATIONS

I Of III:





II Of III:





III Of III:





STARTER SPECIFICATIONS





STARTER TORQUE SPECIFICATIONS
