Headliner - Loose At Rear
88olds10SUBJECT HEADLINER LOOSE AT REAR (REAR WINDOW NUMBER: 88-T-58
AREA)
CORP. REF. NO.: 801602
DATE: May 1988
MODELS/YEARS ALL 1986-88 DELTA 88 MODELS
SECTION: 10

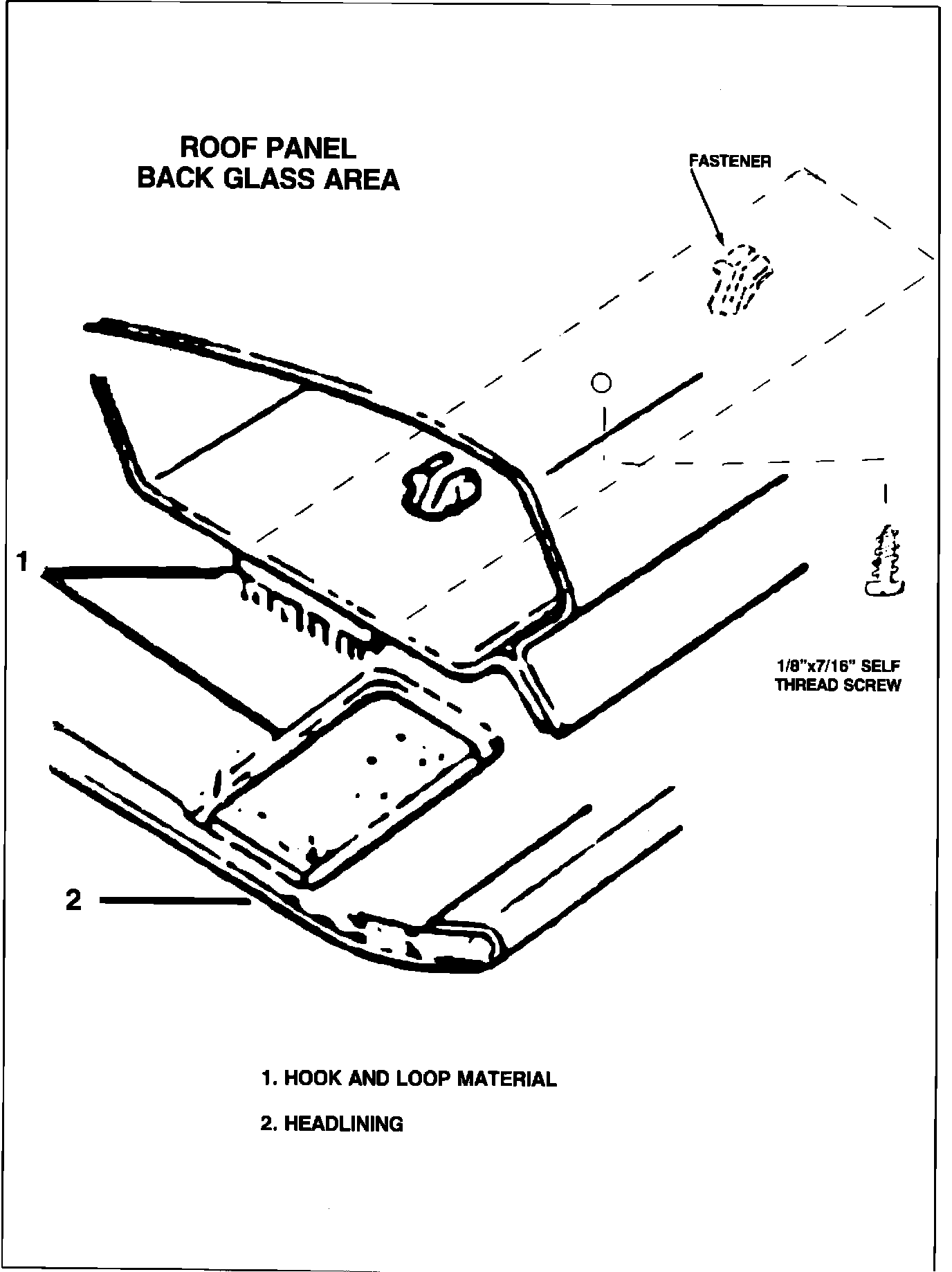

FIGURE 1:
Some Delta 88 models may exhibit a condition of the headliner losing retention to roof underside at the rear window area. This condition may be caused by one or more of the three (3) hook fasteners losing retention from the roof crossbow (box section) at the rear window area (see Illustration, Figure 1).
Repair the above condition as follows:
1. Remove headliner assembly per Body Service Manual, Section 8C.
2. Prepare a drill using a 1/8" drill bit with a stop spacer over the bit allowing only 1/4" of the bit to be exposed (to ensure the bit doesn't contact the roof underside).
3. Remove hook portion of fastener (which will be attached to pile portion) from headliner.
4. Reinstall hook fastener (3) (push in) to roof crossbow.
5. Drill through center of each hook fastener through the roof crossbow.
6. Install 1/8" X 7/16" self threading screw through each fastener per illustration.
7. Reinstall headliner.
WARRANTY INFORMATION
Labor Operation Number: C3128
Labor Hours: Use published time
Trouble Code: 92
Allow additional time of .1 hours to drill and install screws, show as Other Labor Hours.
