Powermaster Brakes - Diagnostic Flow Chart
90olds07SUBJECT POWERMASTER BRAKES (DIAGNOSTIC
INFORMATION)
MODELS/YEARS 1986 CUSTOM CRUISER
NUMBER: 86-T-06D
CORP.REF.NO: 035002R
DATE: May 1990
SECTION: 5

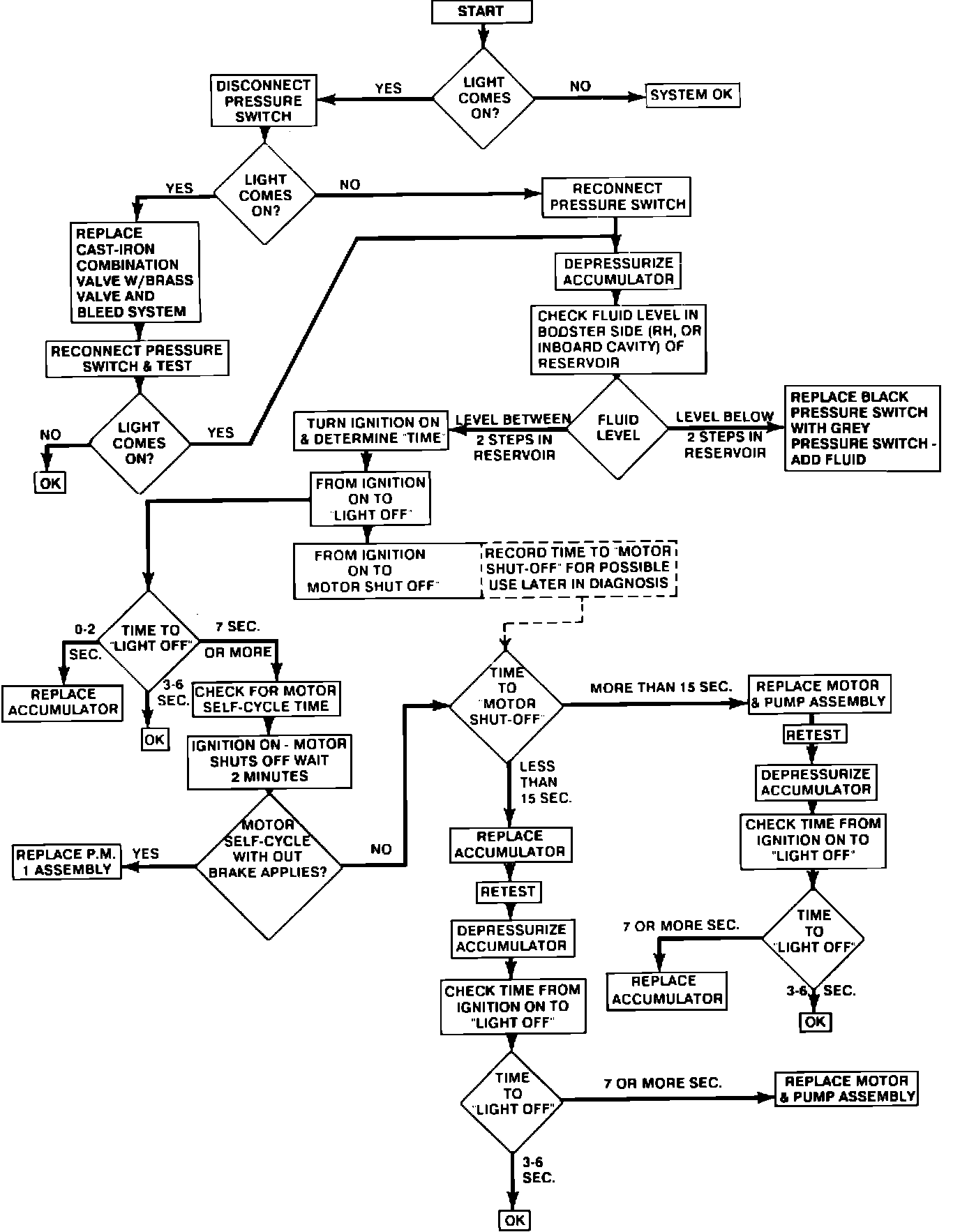

The diagnostic flow chart on the back of this bulletin is being issued to supplement Dealer Technical Bulletin 86-T-06C, (Corporation Number 035002). This chart should help in understanding the logic behind the diagnostic procedures described in 86-T-06C.
