Home >> Oldsmobile >> 1986 >> Cutlass V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Housing Assembly HVAC

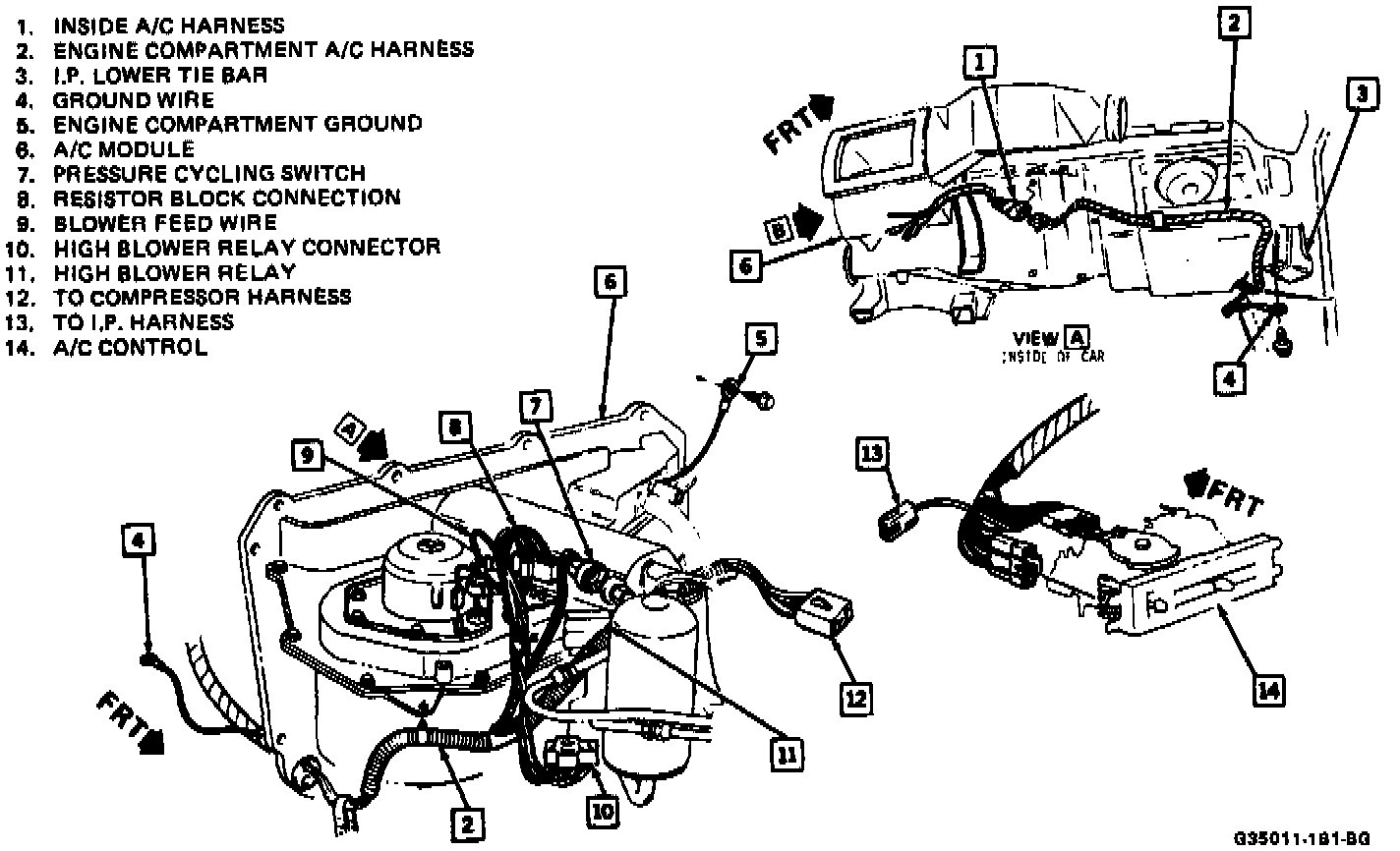

Housing Assembly HVAC

A/C Wiring:
