System Operation Check

A/C System Check:

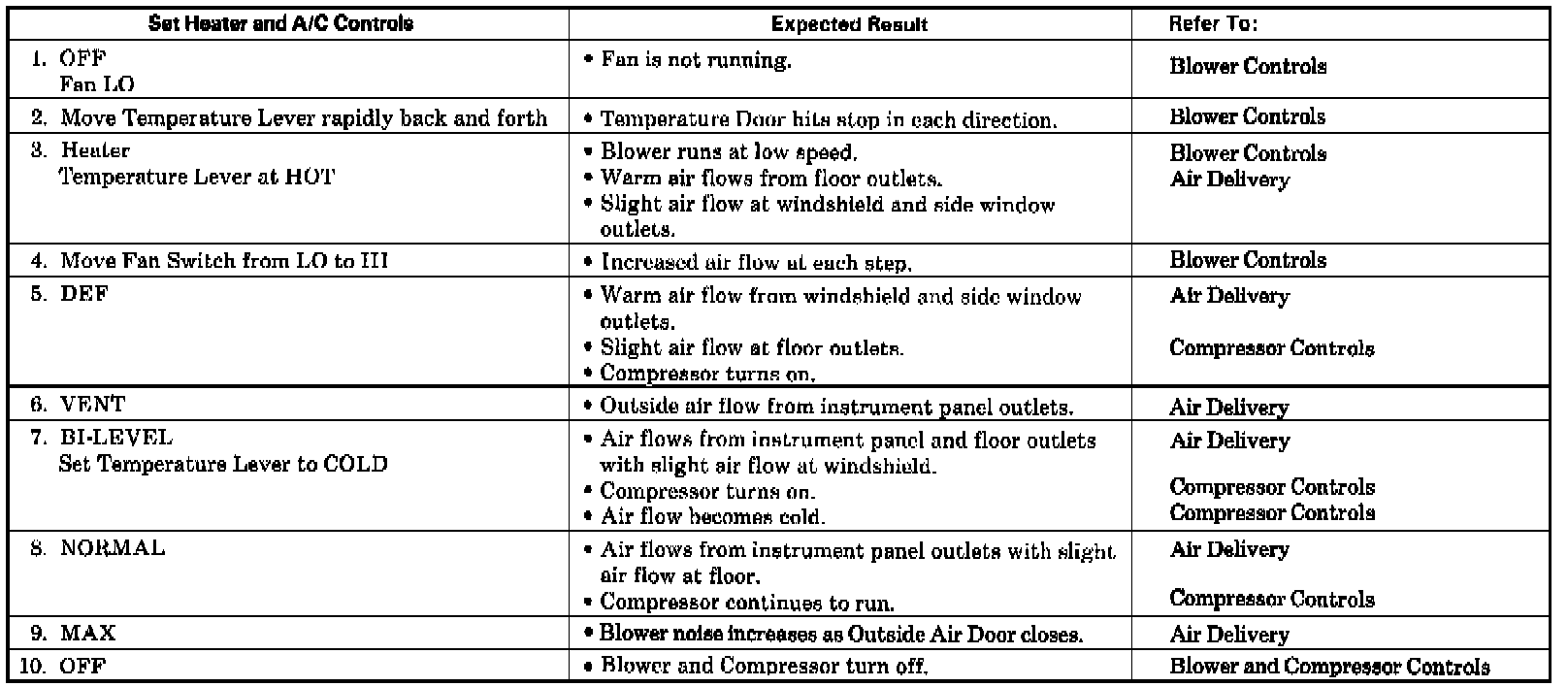

System Check Table - C60 Air Conditioning
^ Complete this procedure with the temperature outside the car above 60°F (16°C) and with the engine running at idle.

This provides an overall check of the Heater and Air Conditioning System. All of the functions can be performed without the use of tools or disassembly. For diagnosis of other results not in the System Check Table, refer to Testing and Inspection under the appropriate system / component.

NOTE If all of the steps in the System Check Table can be completed as described, the Heating and Air Conditioning System is operating normally.
