Home >> Oldsmobile >> 1986 >> Cutlass V8-307 5.0L VIN 9 4-bbl HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element

Heated Glass Element

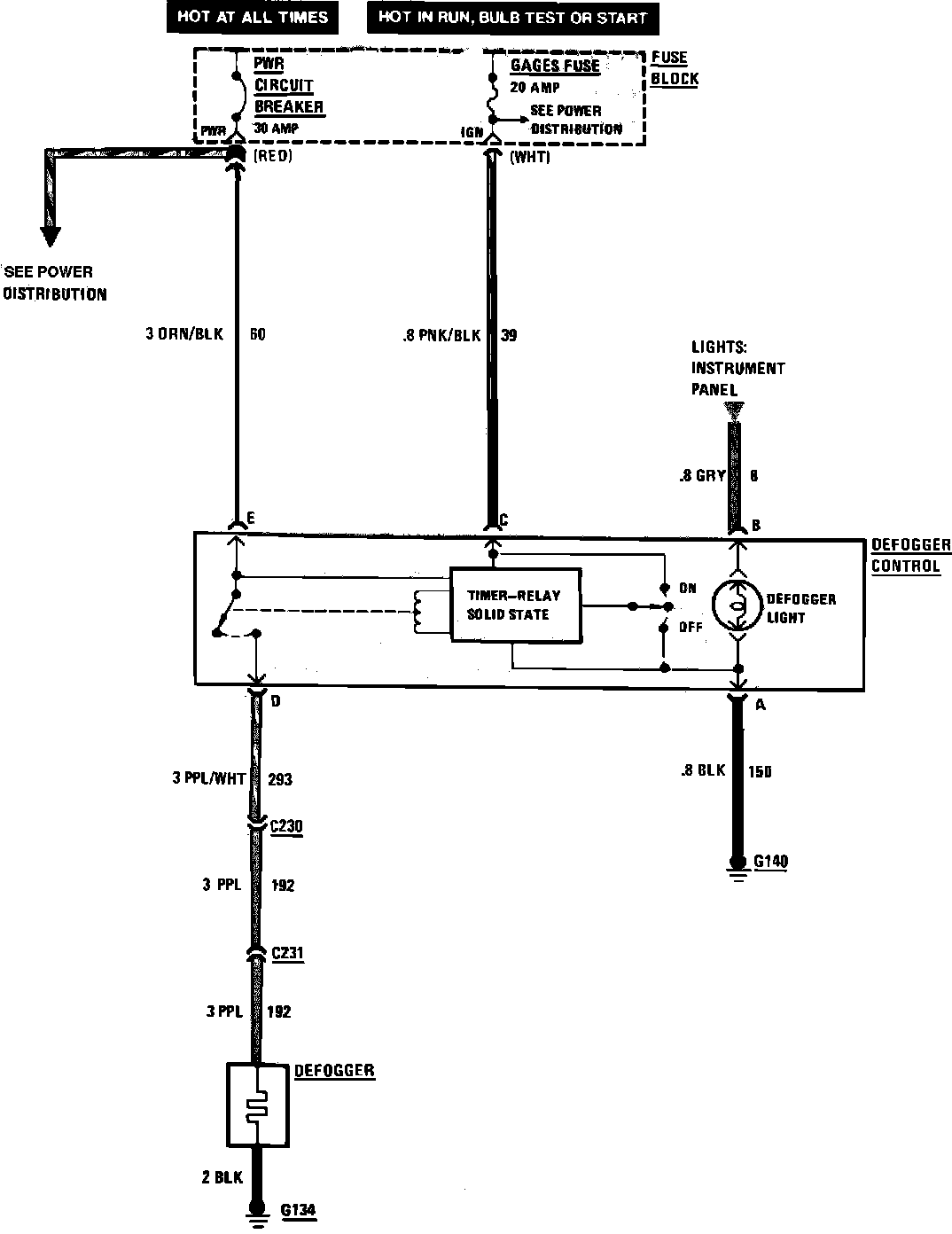

Rear Window Defogger Wiring Circuit:
