EGR/RVB/ILC Solenoid
EGR/RVB/ILC Solenoid

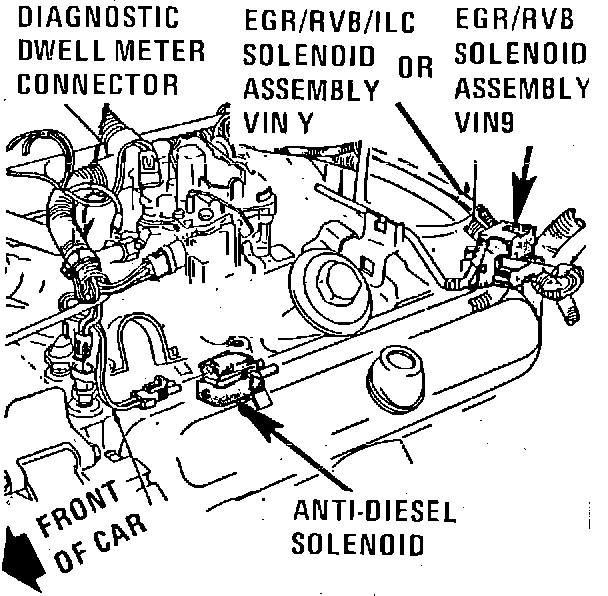

Top Front Of Engine.:
Top LH Side Of Engine Behind Carburetor
Applicable to: 1986 Cutlass Supreme (V8-307/5.0L)
