Blower Motor
>>
With Electronic Climate Control
With Electronic Climate Control

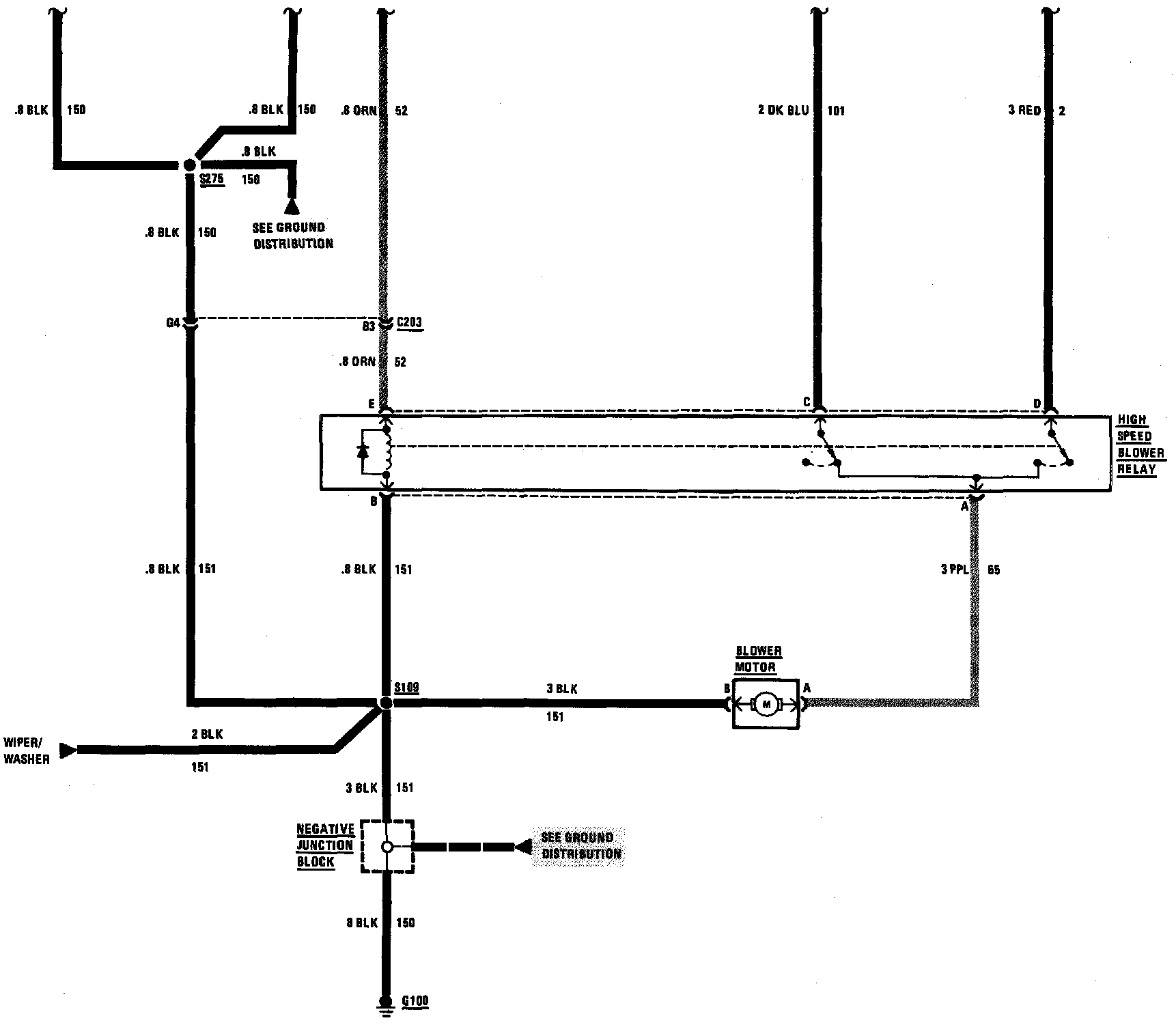

A/C Blower Controls Wiring Diagram With Climate Control Part 1:

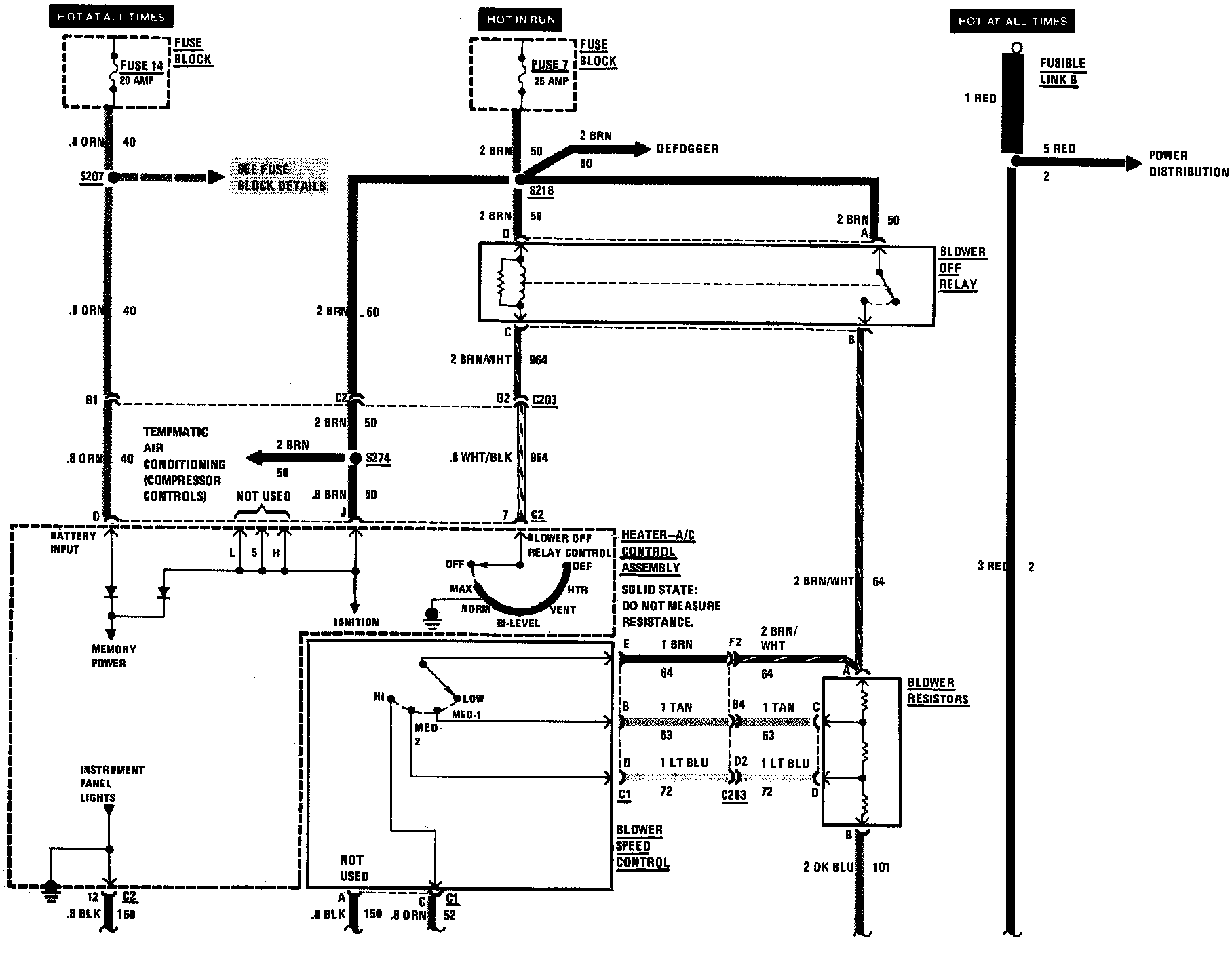

A/C Blower Controls Wiring Diagram With Climate Control Part 2:
