Compressor HVAC
>>

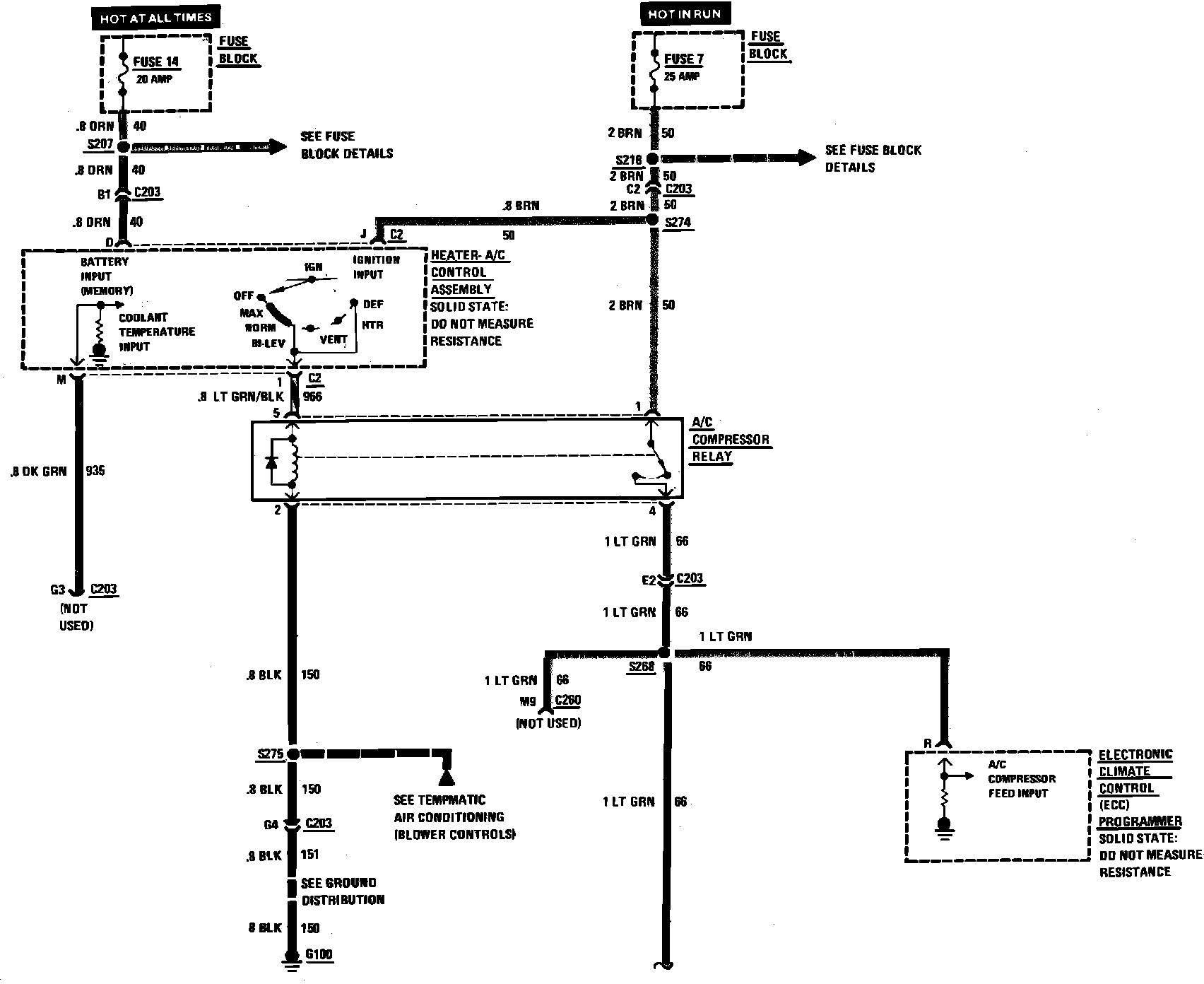

With Electronic Climate Control
With Electronic Climate Control

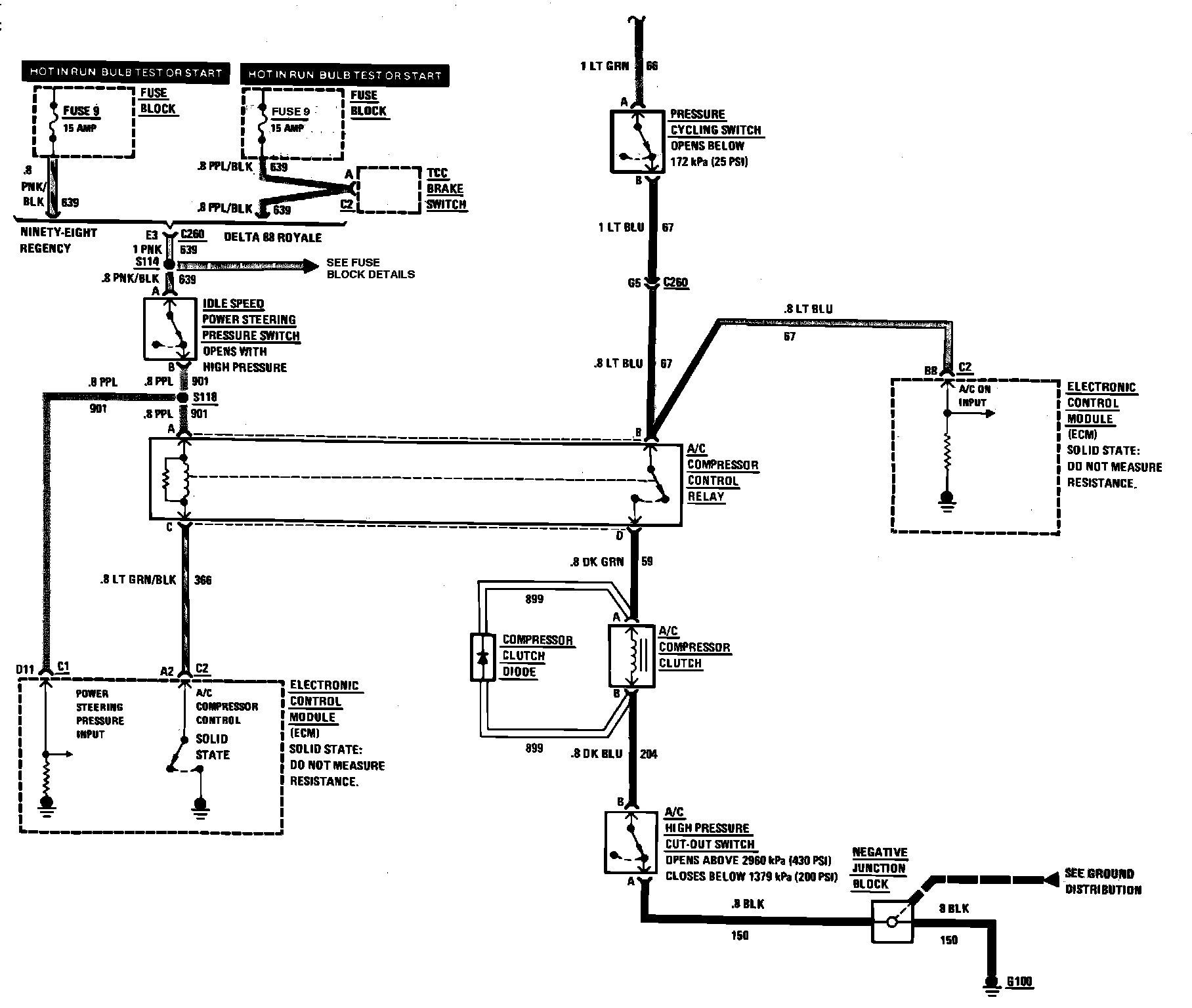

Air Conditioning Compressor Control Wiring Circuit (W/Tempmatic A/C):
Air Conditioning Compressor Control Wiring Circuit (W/Tempmatic A/C):
