Compressor HVAC
>>
Without Electronic Climate Control
Without Electronic Climate Control

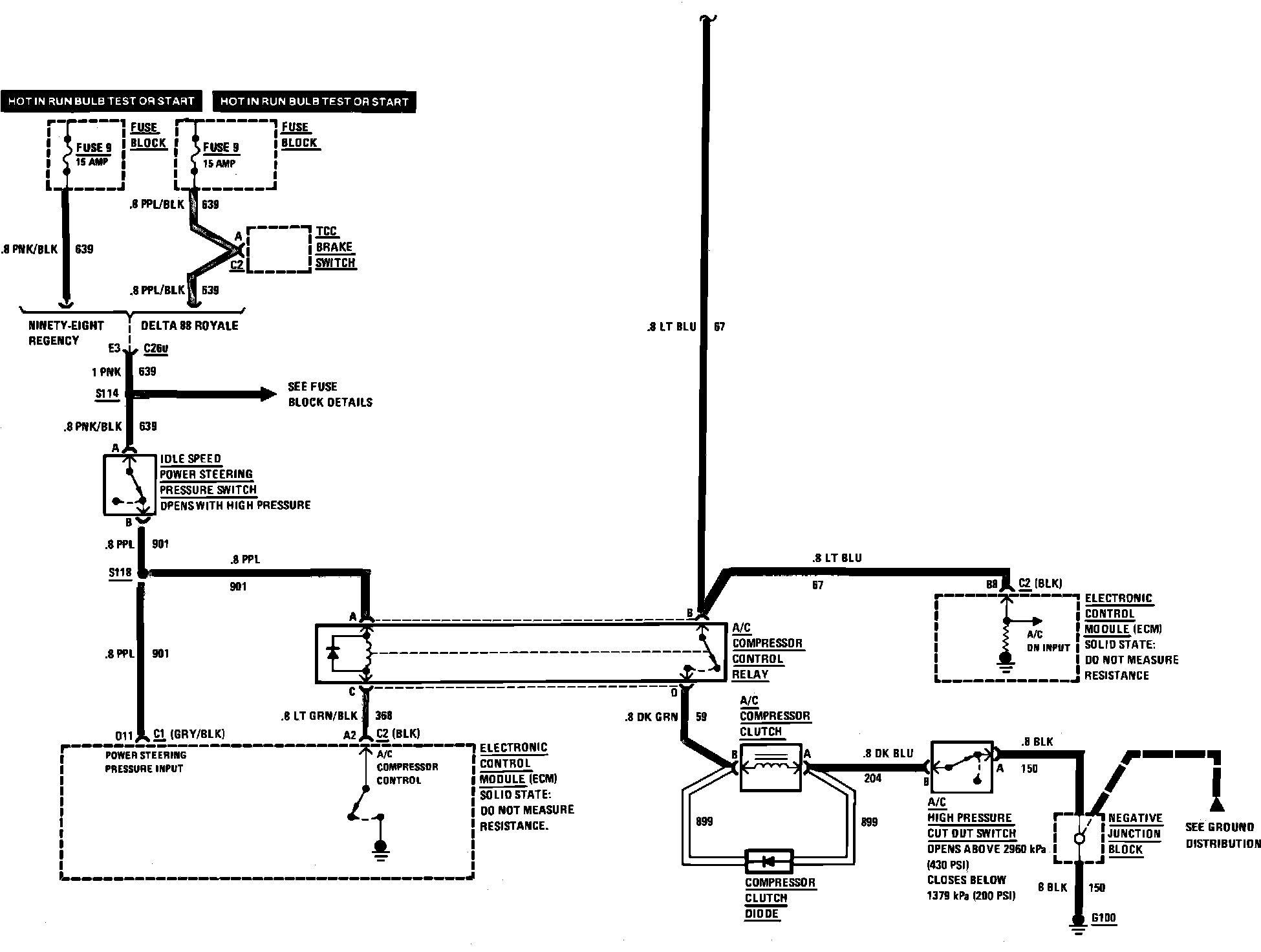

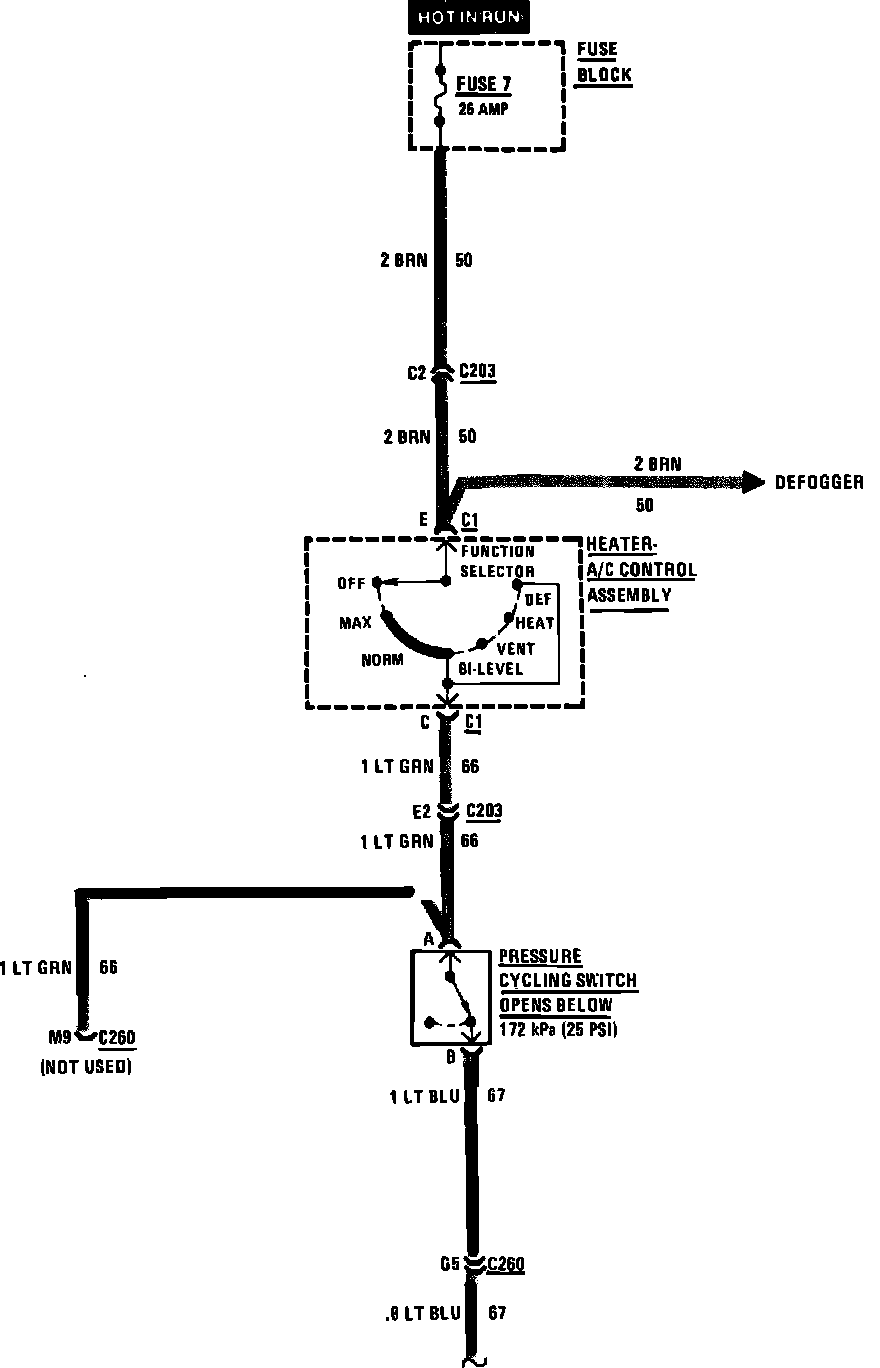

Air Conditioning Compressor Control Wiring Circuit (W/Four Season A/C):
Air Conditioning Compressor Control Wiring Circuit (W/Four Season A/C):
