Home >> Oldsmobile >> 1986 >> Delta 88 V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> W/Four Seasons A/C

W/Four Seasons A/C

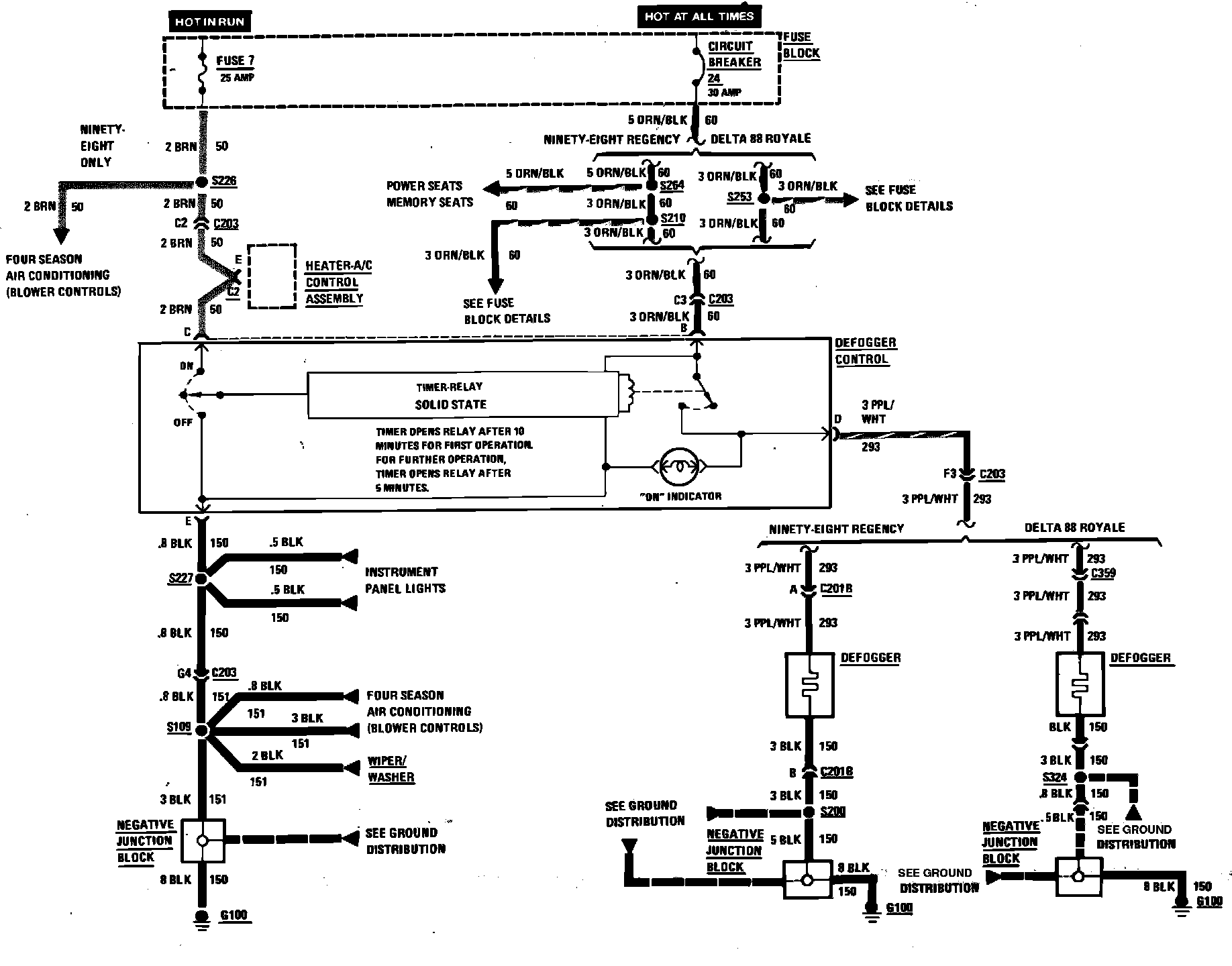

Defogger Wiring Circuit (W/Four Seasons A/C):
