Trunk Lamp
Trunk Lamp

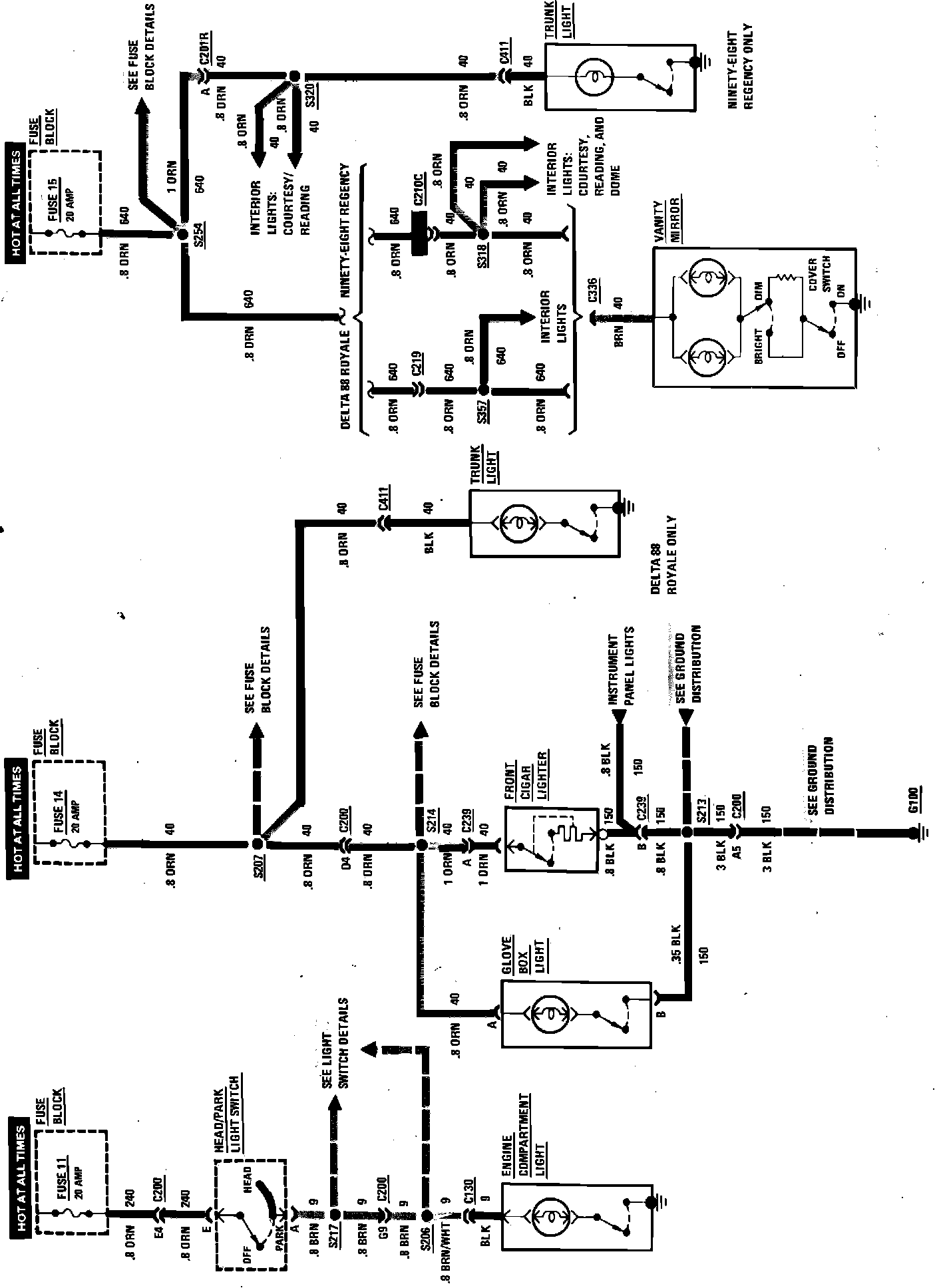

Cigar Lighter (Front), Engine Compartment Lamp, Glove Box Lamp, Trunk Lamp & Vanity Mirror Lamp Wiring Circuit:
