Connector Views

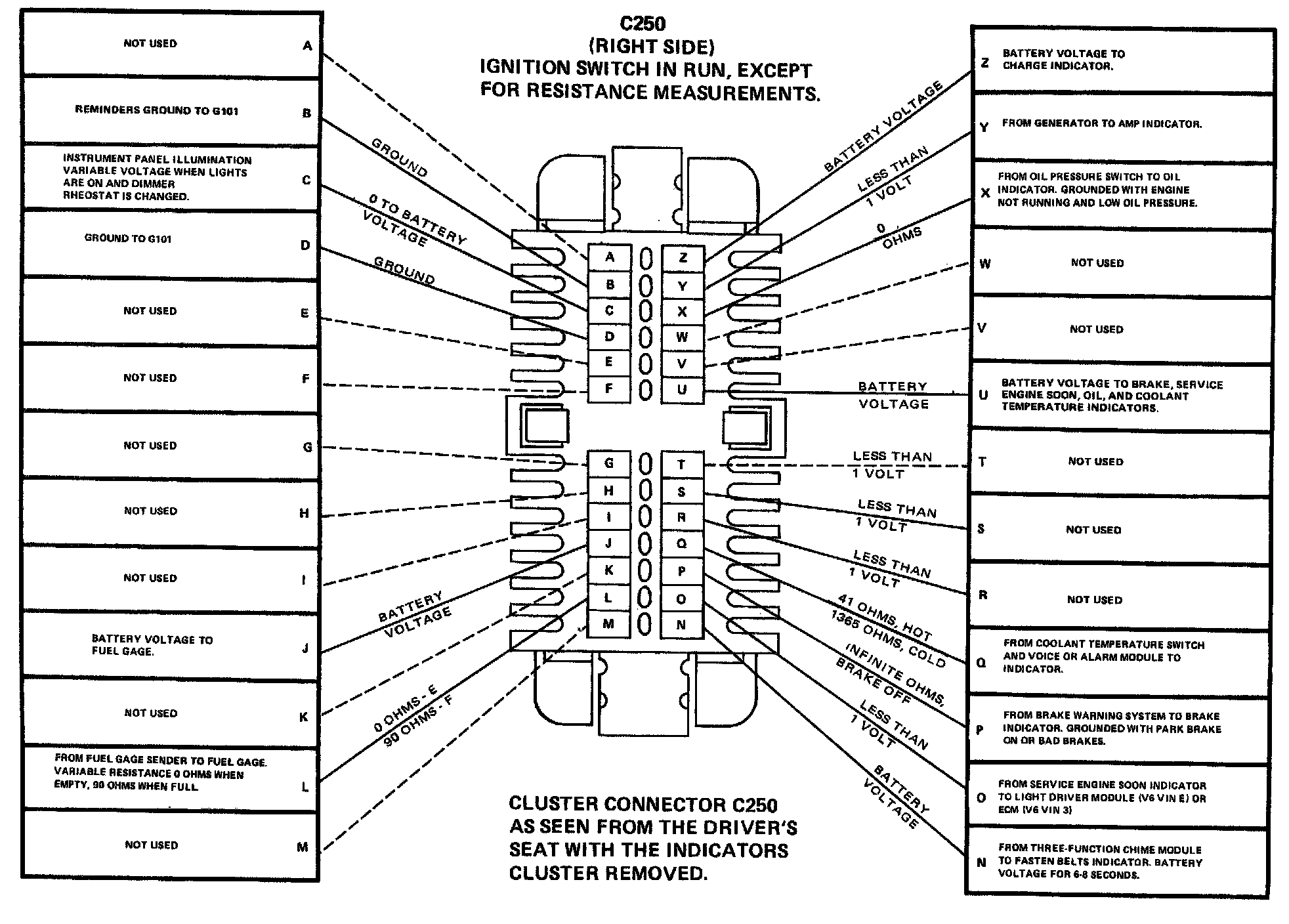

Standard Cluster, Connector C250:



Standard Cluster, Connector C251:



Digital Cluster, Connector C250:

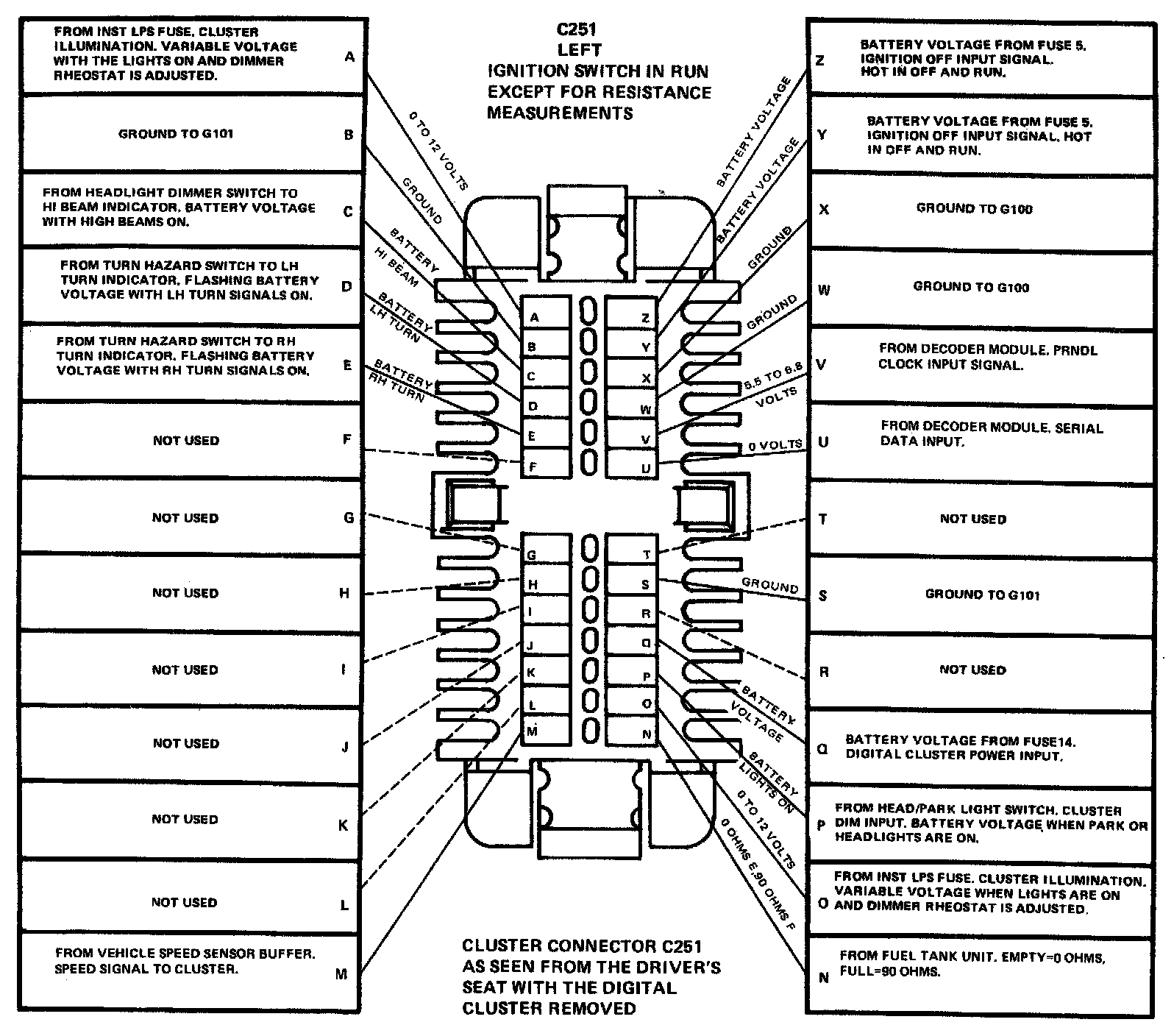

Digital Cluster, Connector C251:
