Instrument Panel Gauges

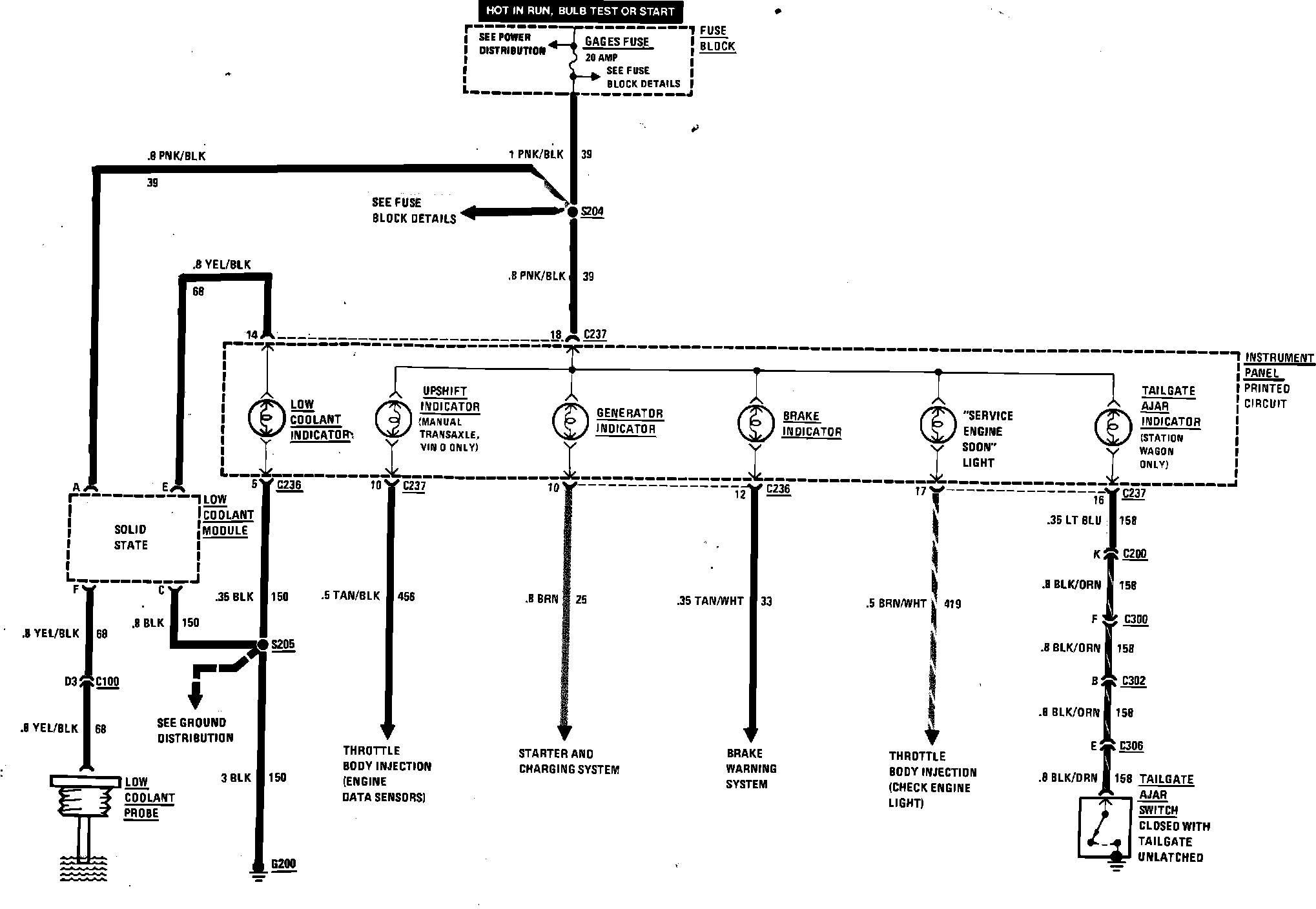

Instrument Panel Gauges Wiring Circuit (Part 1 Of 4):

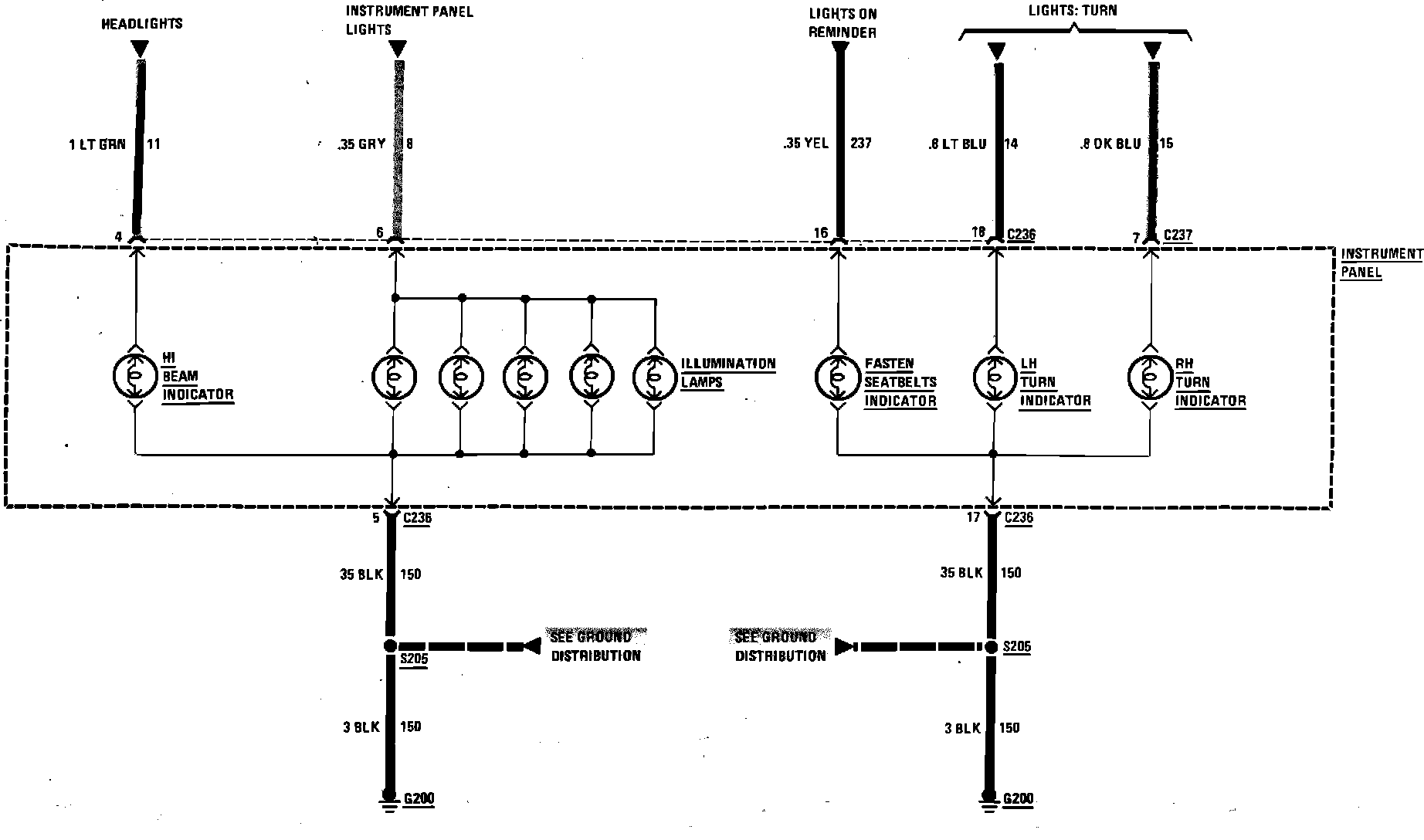

Instrument Panel Gauges Wiring Circuit (Part 2 Of 4):

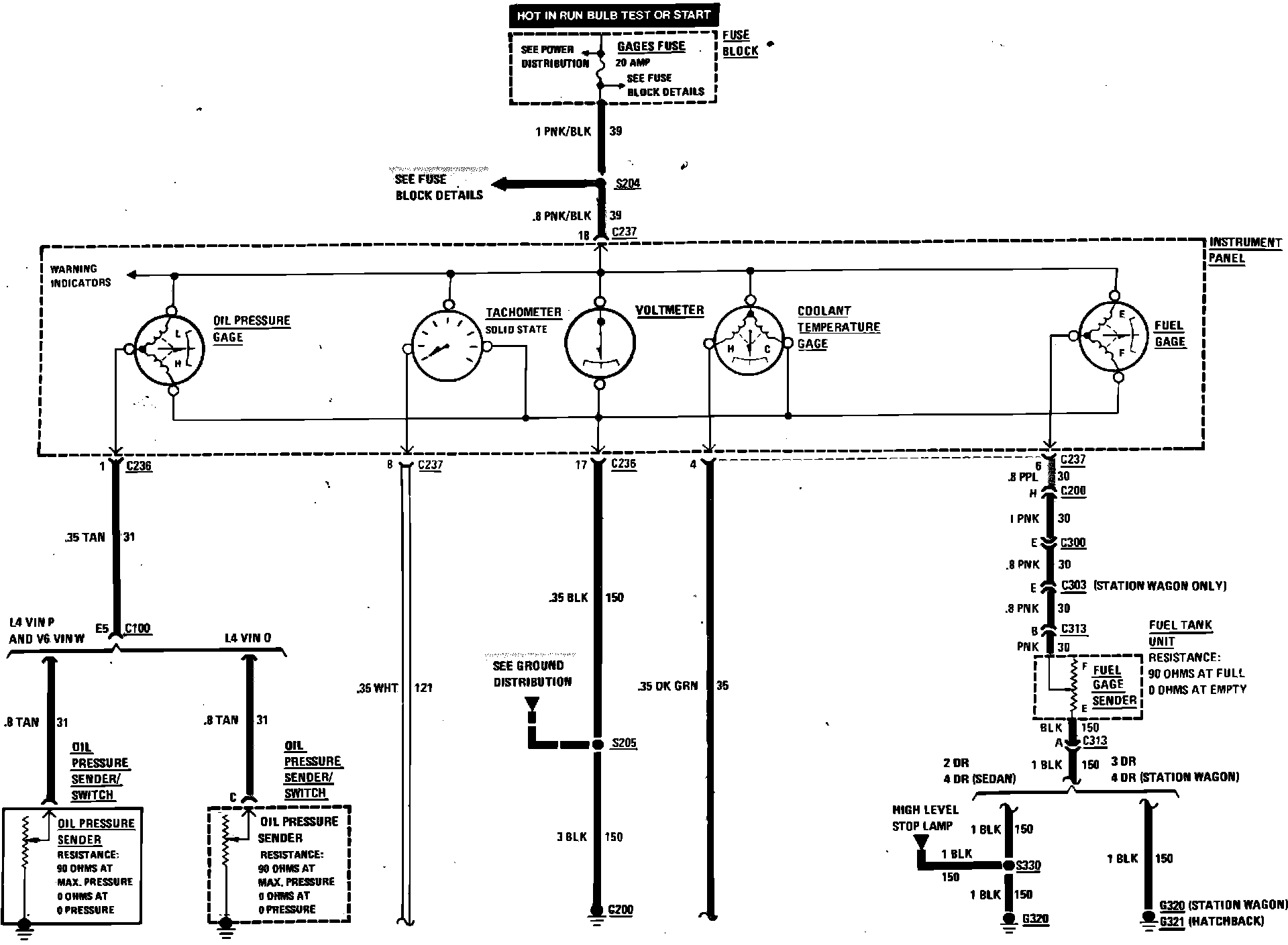

Instrument Panel Gauges Wiring Circuit (Part 3 Of 4):

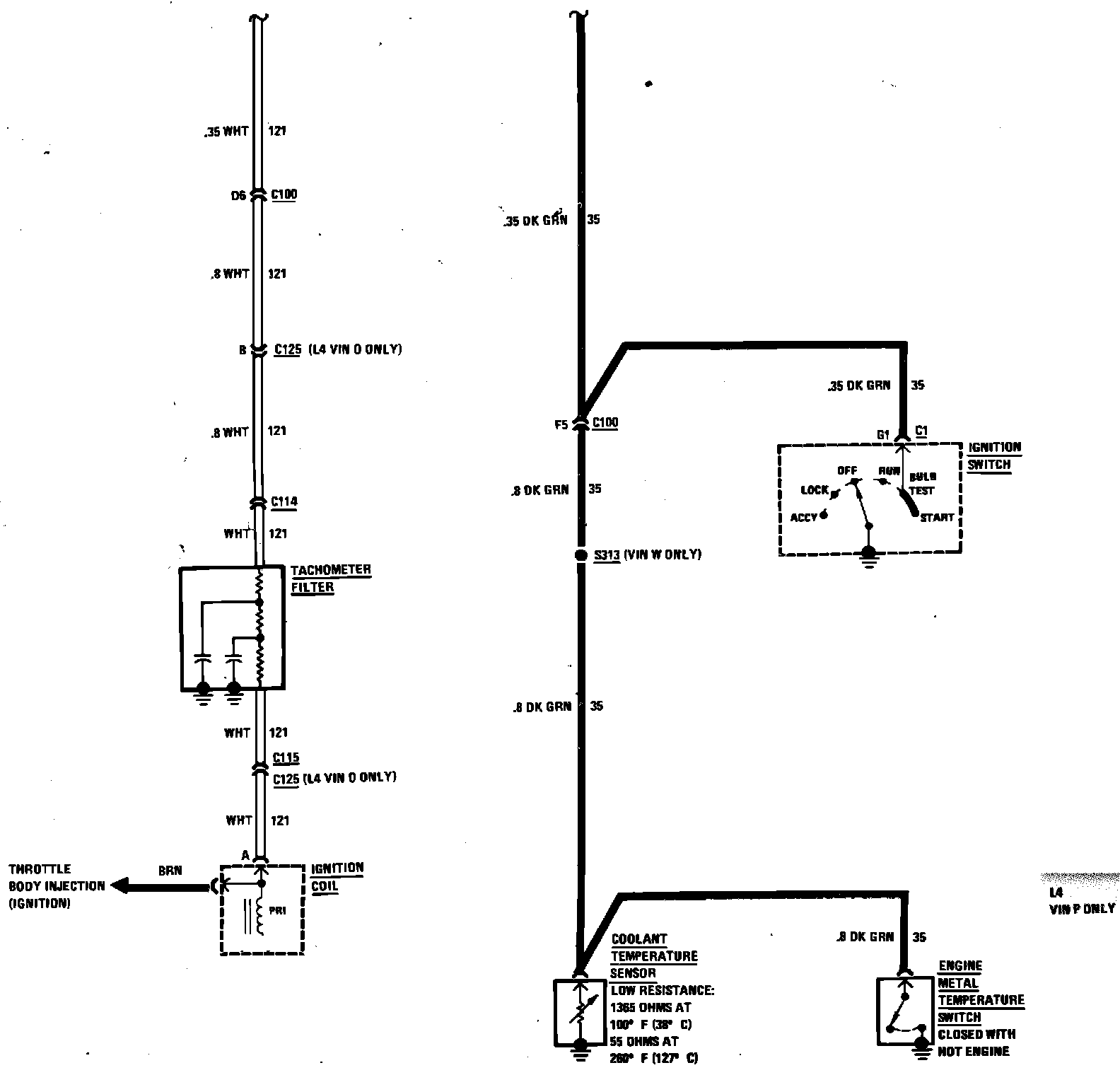

Instrument Panel Gauges Wiring Circuit (Part 4 Of 4):
