RH Horn Capacitor
RH Horn Capacitor

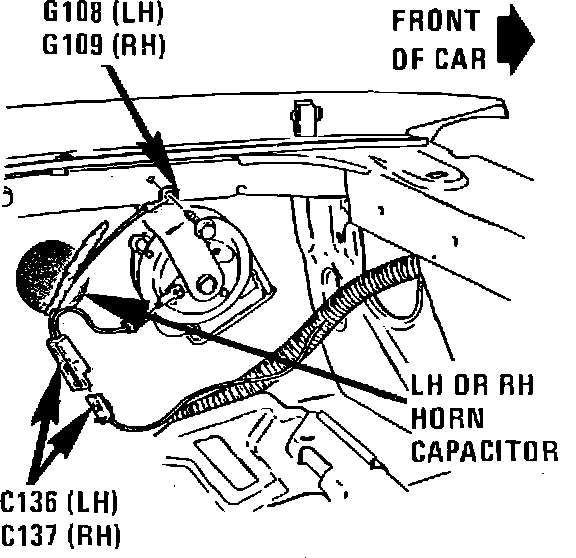

LH Front Corner Of Engine Compartment Shown, RH Similar:
In Jumper Harness, RH Front Corner Of Engine Compartment
Applicable to: 1986 88 & 98 w/Electronic Instrument Cluster
