Brake Warning Indicator
>>
Brake Indicator Less Voice Information System
Brake Indicator Less Voice Information System

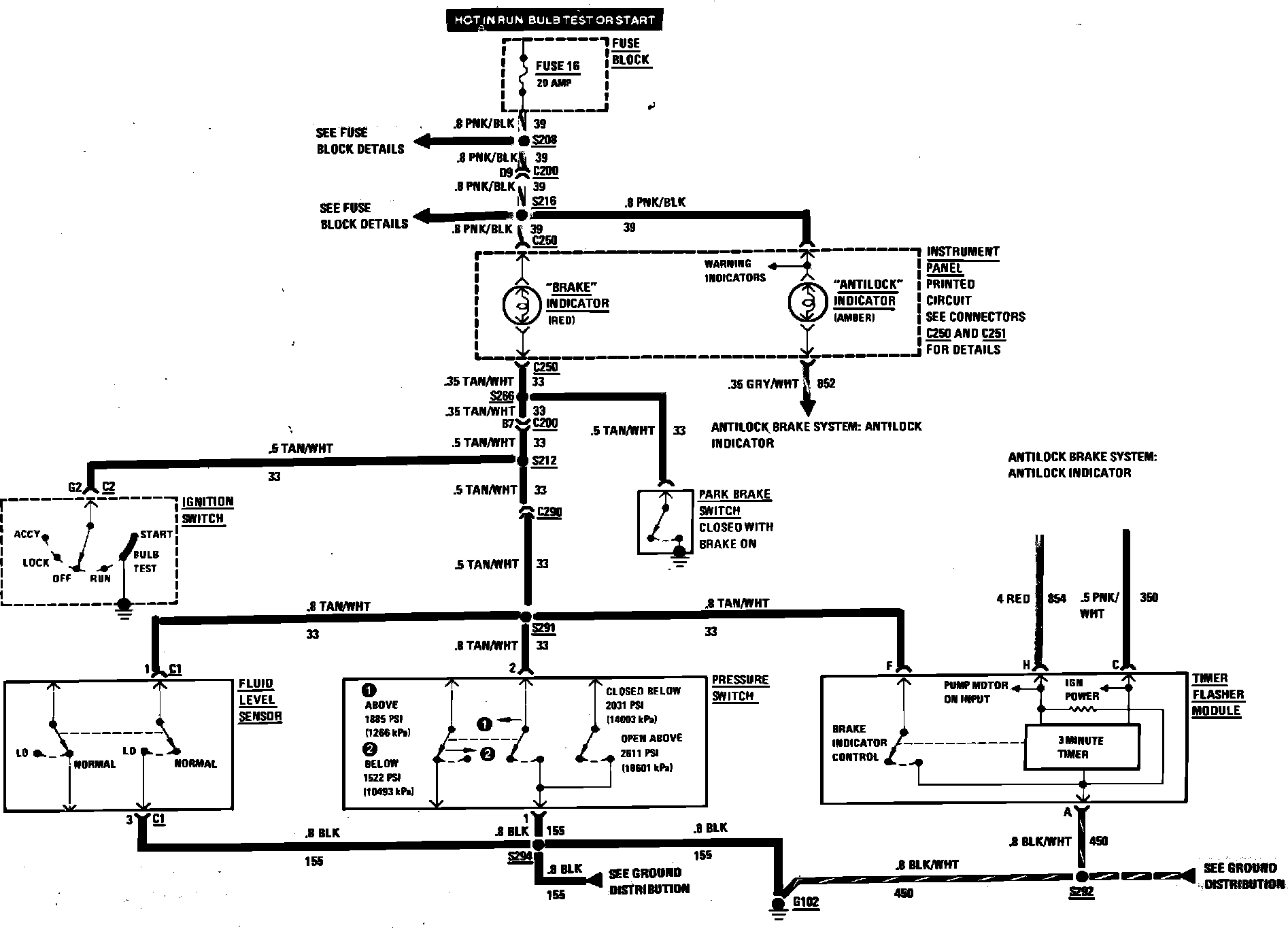

Anti-Lock Brake System Brake Indicator Wiring Circuit Less Voice Information System:
