Home
>>
Oldsmobile
>>
1986
>>
Ninety-Eight V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
With Voice Information System
With Voice Information System

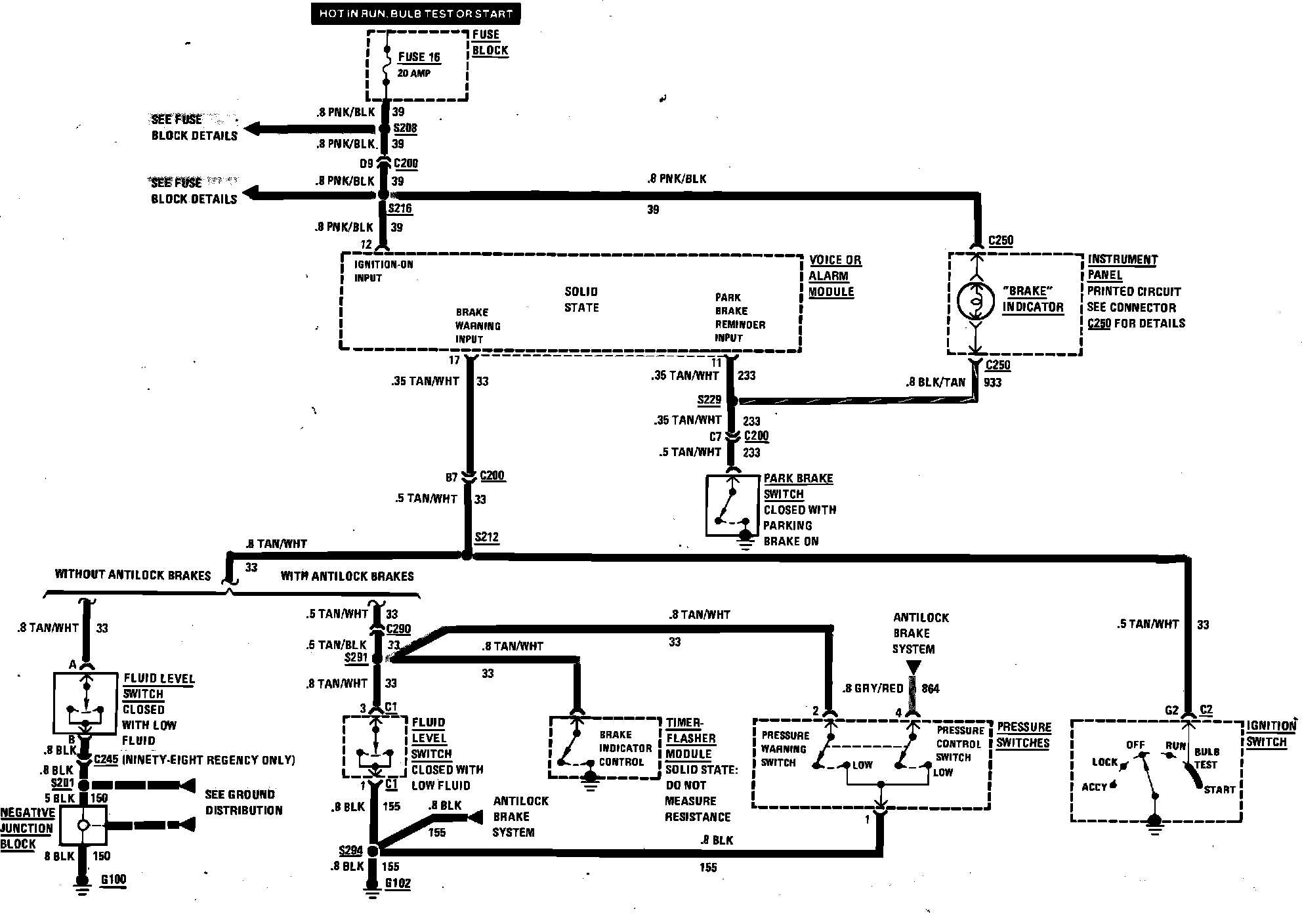

Brake Warning System Wiring Circuit With Voice Information System:
