Coolant Level Indicator Lamp
Coolant Level Indicator Lamp

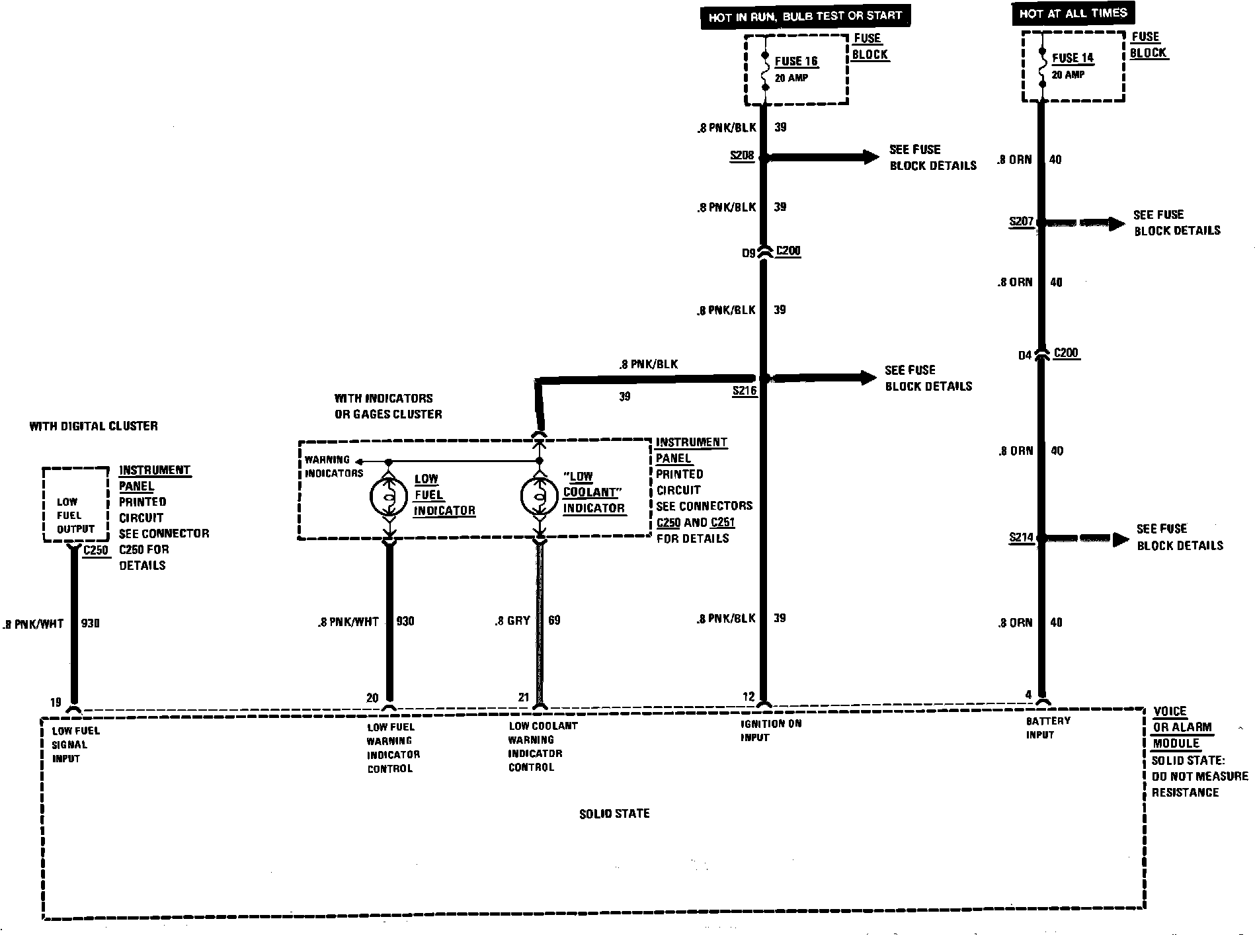

Alarms & Warning System Wiring Circuit (With Voice Information System):
Alarms & Warning System Wiring Circuit (With Voice Information System):
