Home >> Oldsmobile >> 1986 >> Ninety-Eight V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> W/Tempmatic A/C

W/Tempmatic A/C

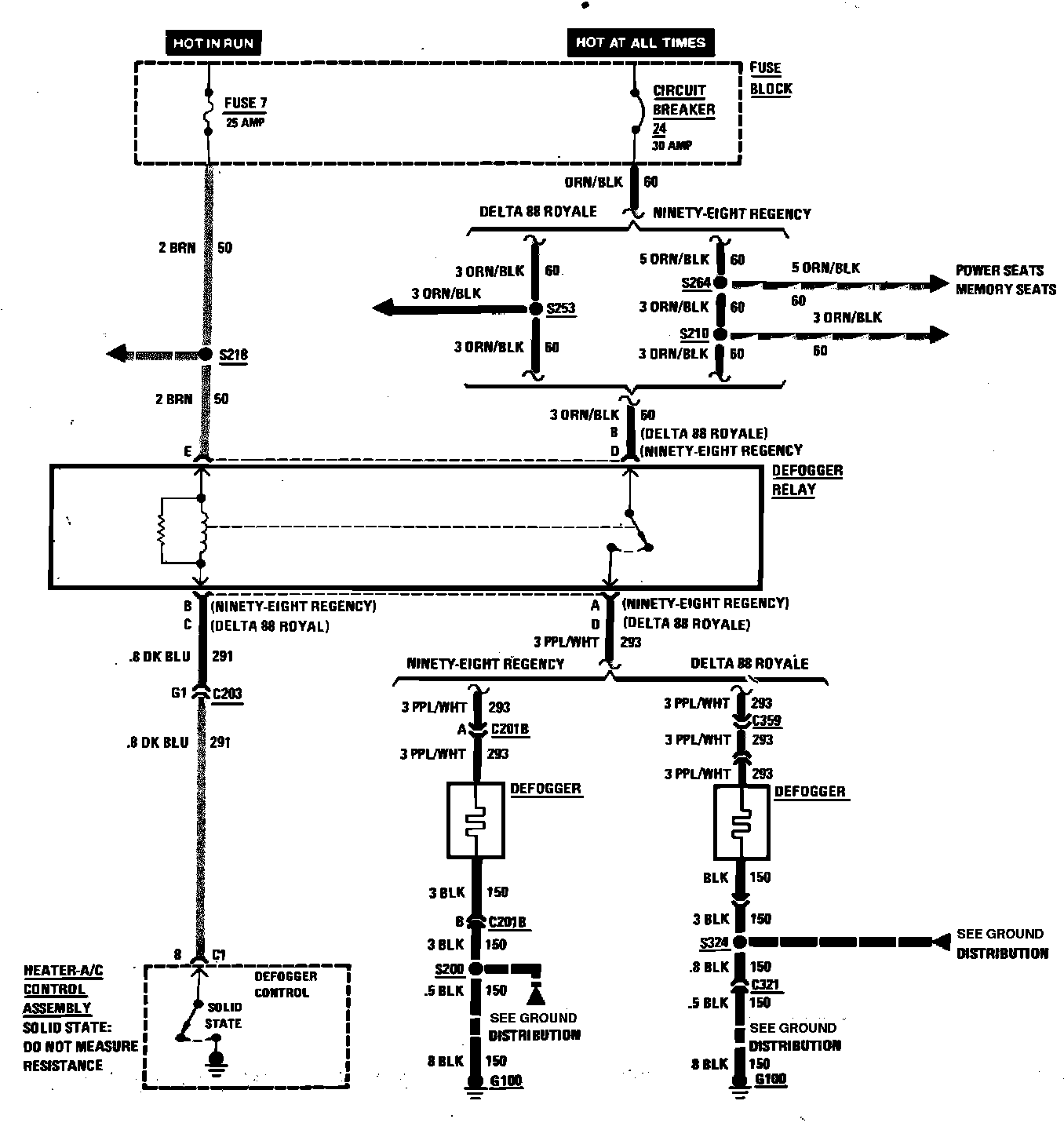

Defogger Wiring Circuit (W/Tempmatic A/C):
