With Electronic Tuning

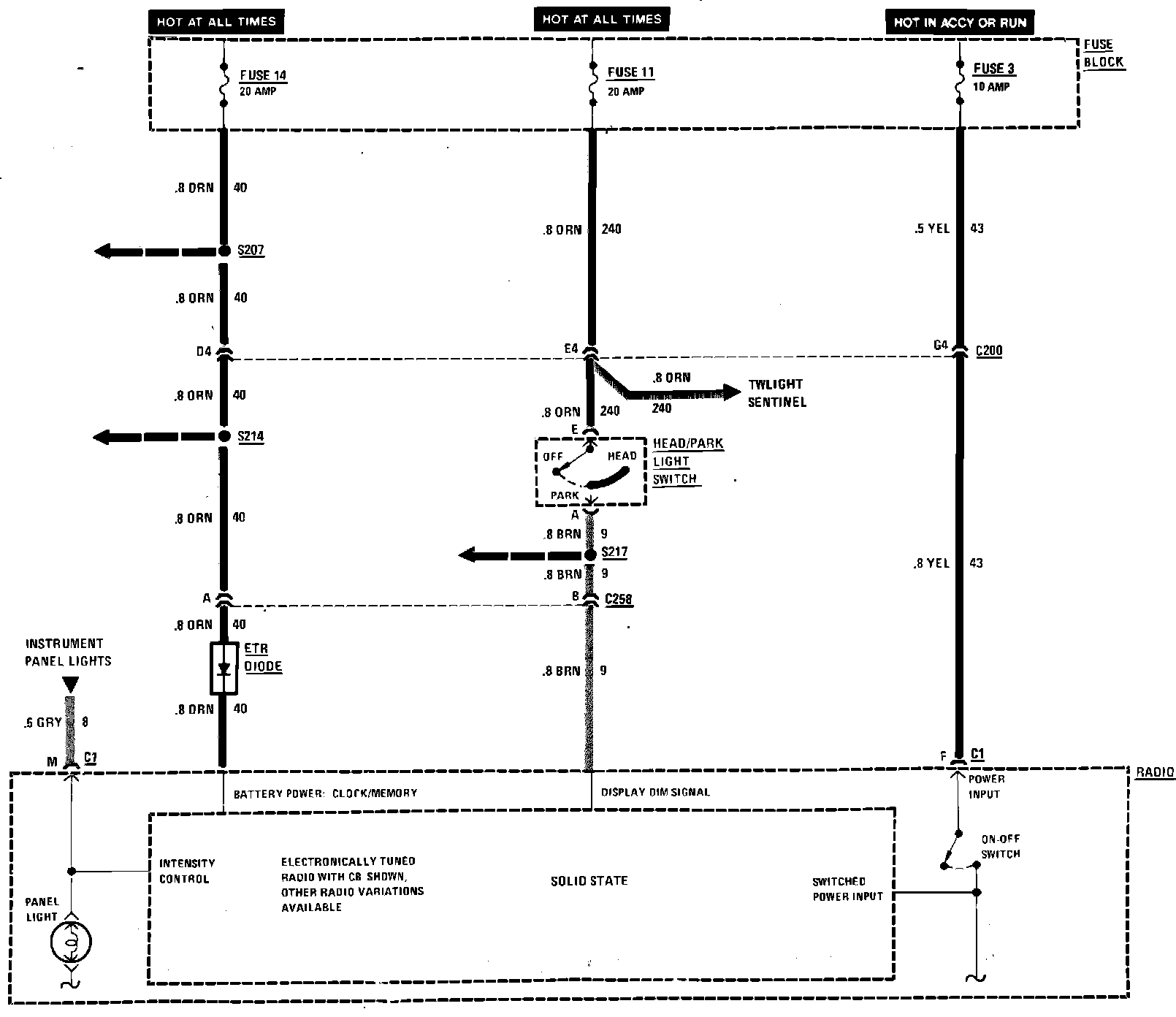

Radio Wiring Circuit (Part 1 of 2). With Electronic Tuning:

Radio Wiring Circuit (Part 2 of 2). With Electronic Tuning:
