Oldsmobile
>>
1986
>>
Ninety-Eight V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
88 (Part 2 of 2)
88 (Part 2 of 2)

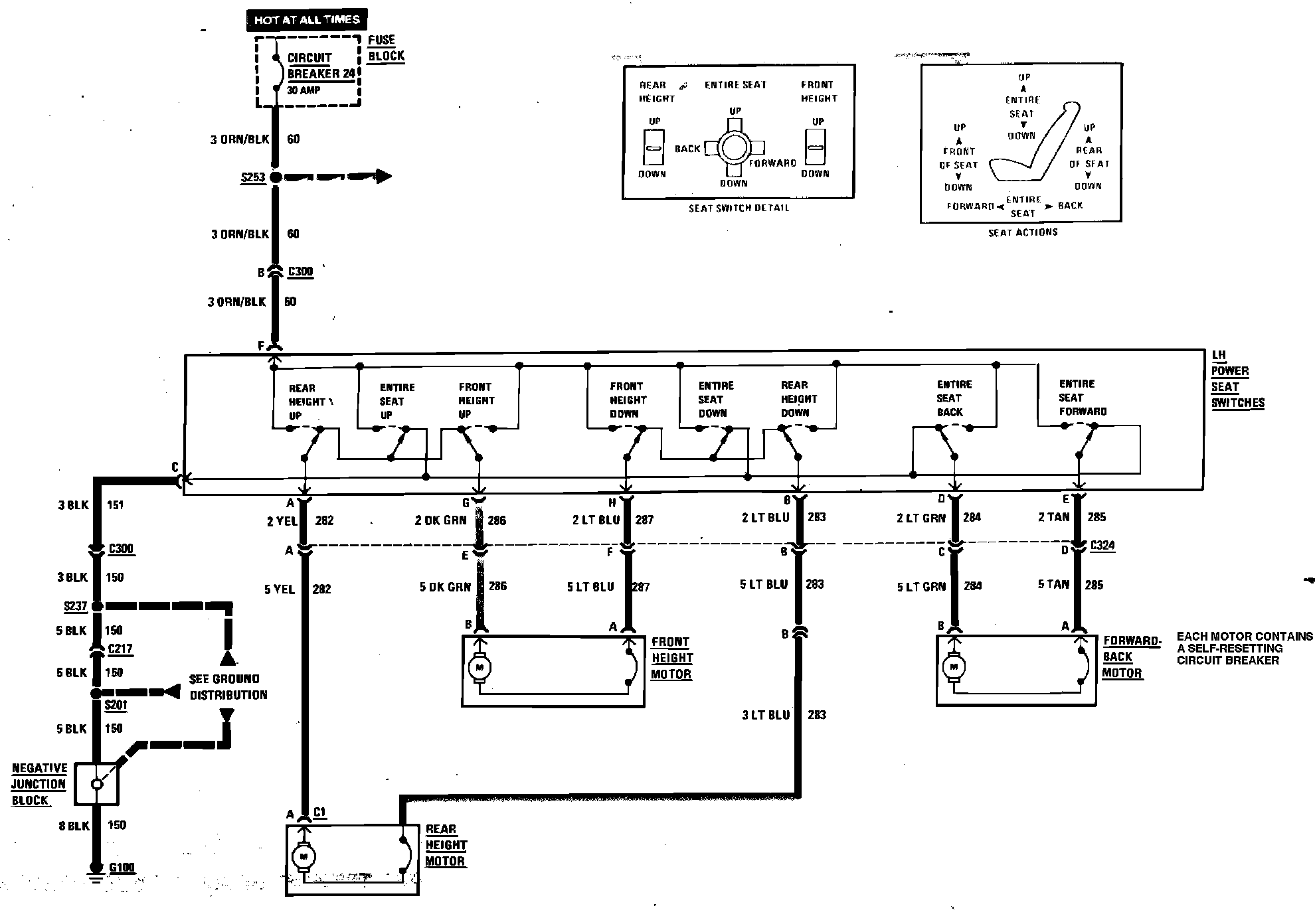

Power Seats Wiring Circuit (Part 2 of 2):
