(Part 2 of 3)

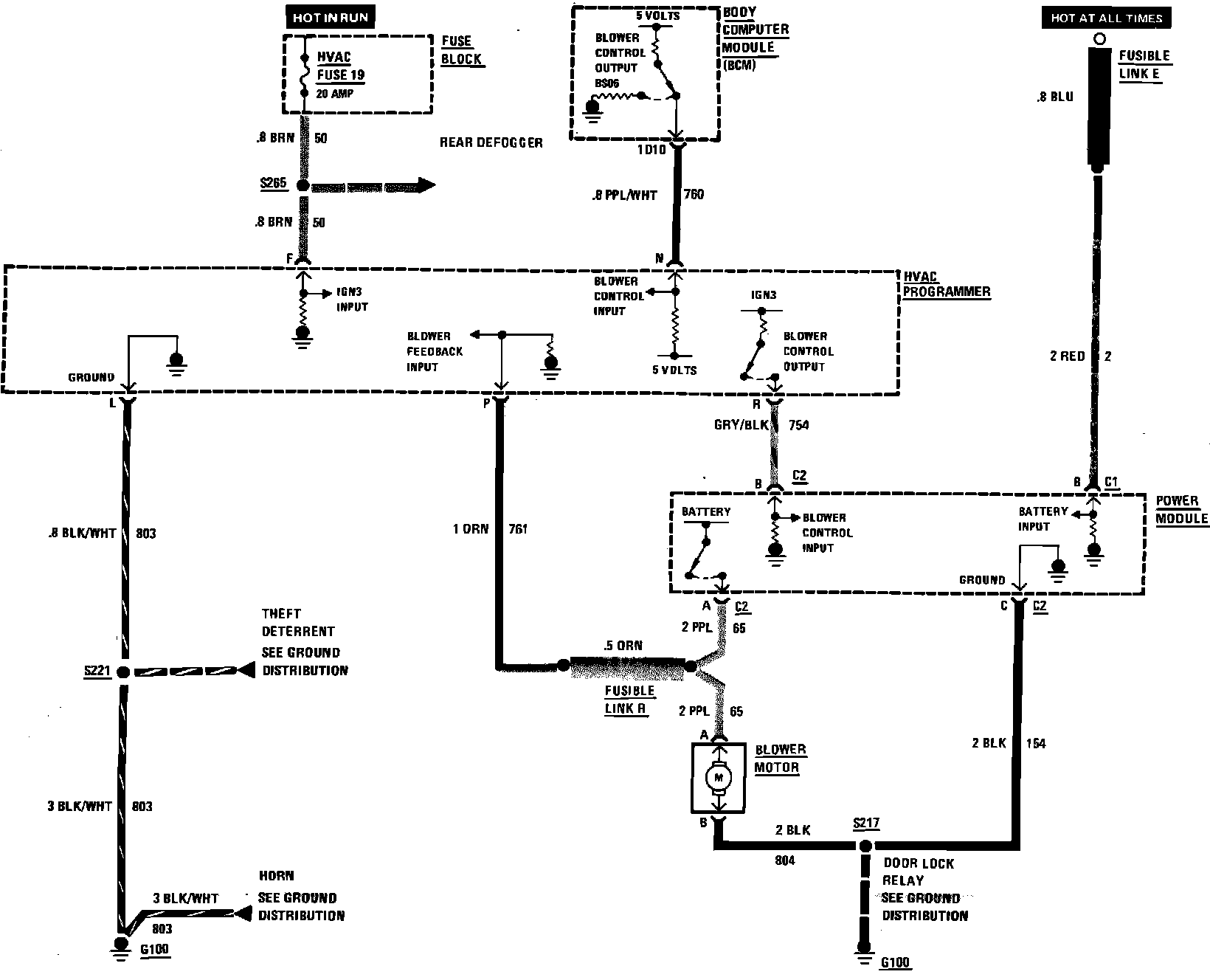

Air Conditioning Blower & Compressor Control Wiring Circuit (Part 2 Of 3). W/Electronic Climate Control:
