Instrument Panel, Gauges and Warning Indicators
>>
Key Reminder Switch
Key Reminder Switch

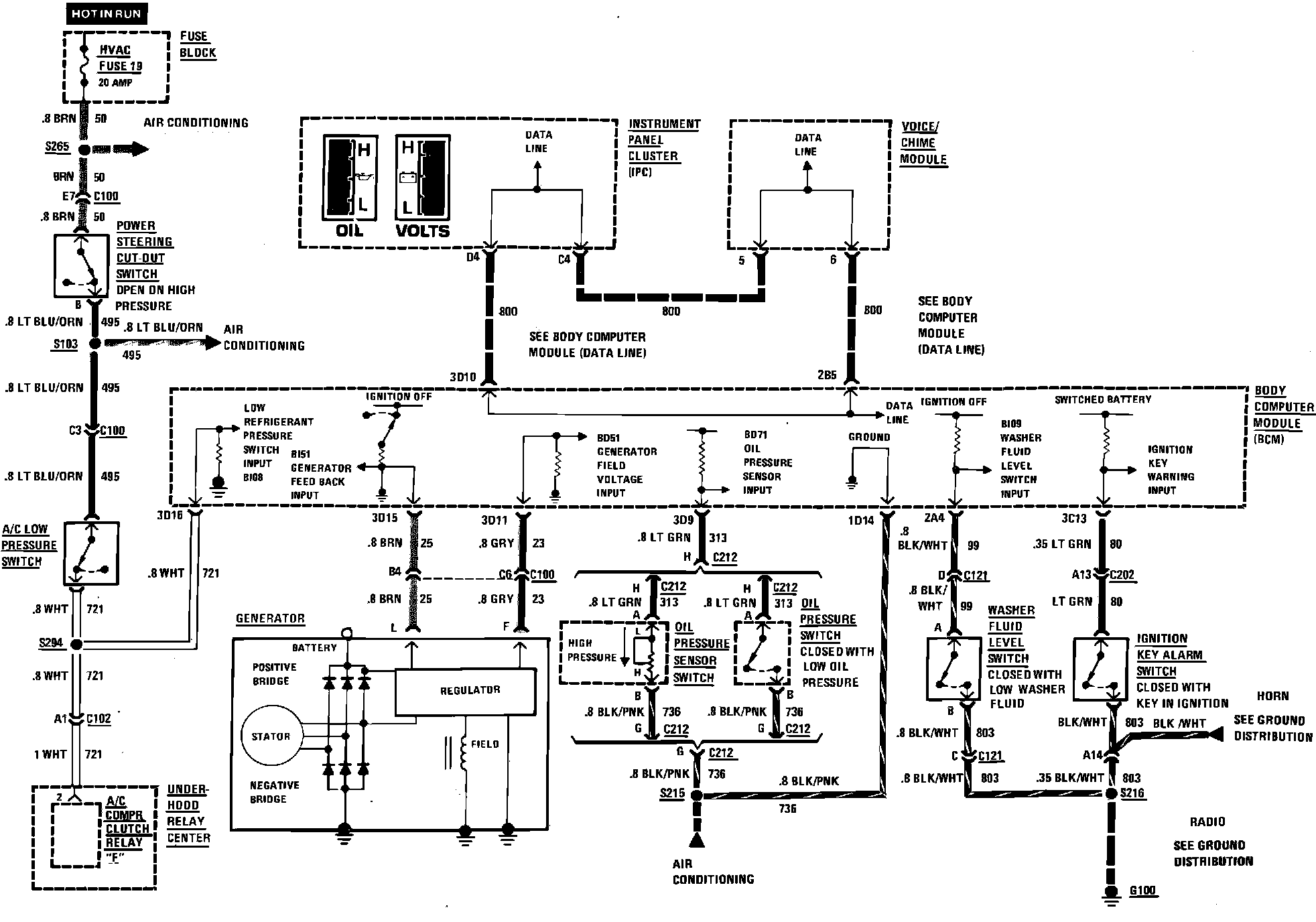

Warning Alarms Wiring Circuit (Ignition Key & Washer Fluid Level):
