Odometer

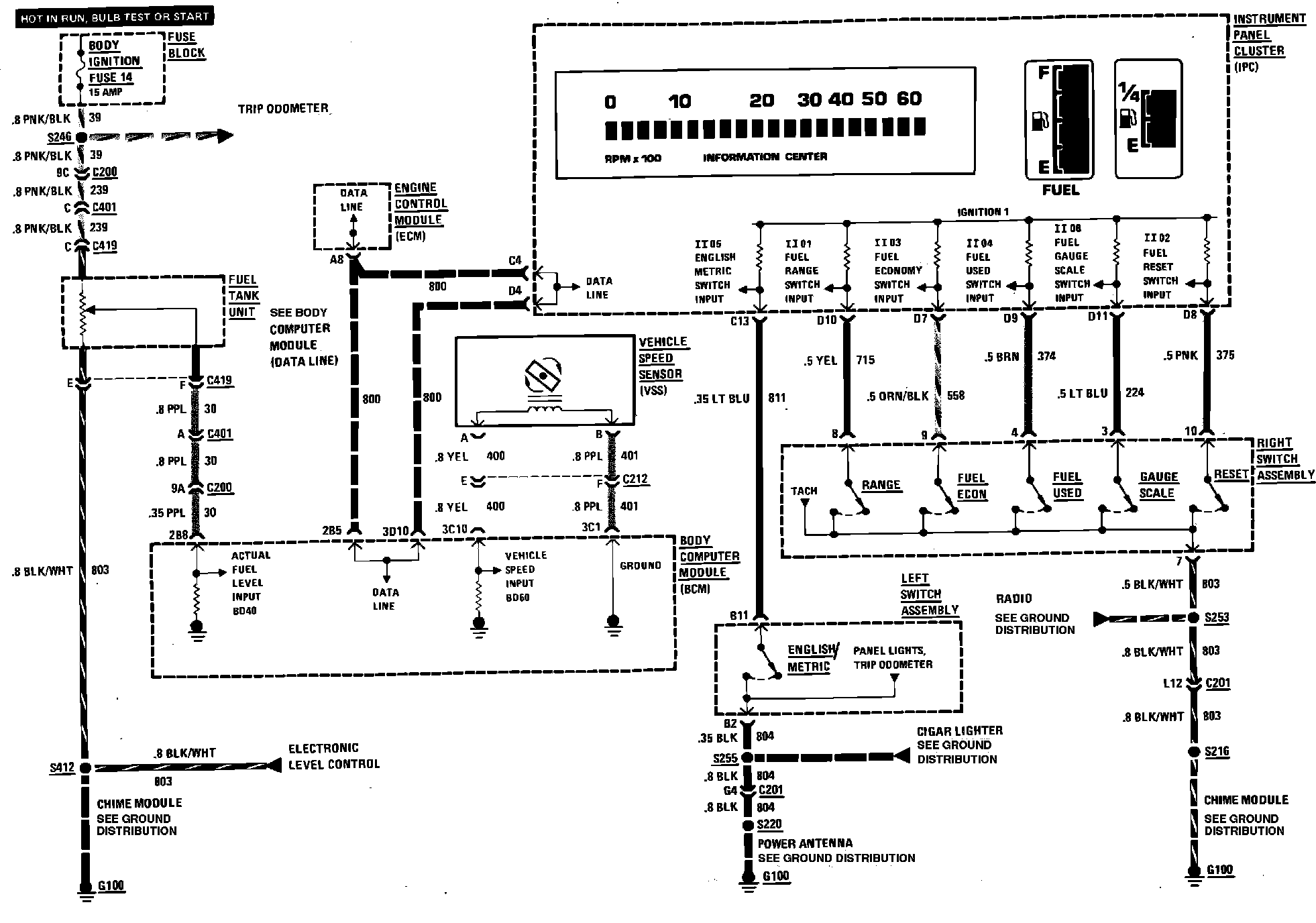

Instrument Cluster Wiring Circuit (Fuel Gauge & Trip Monitor):

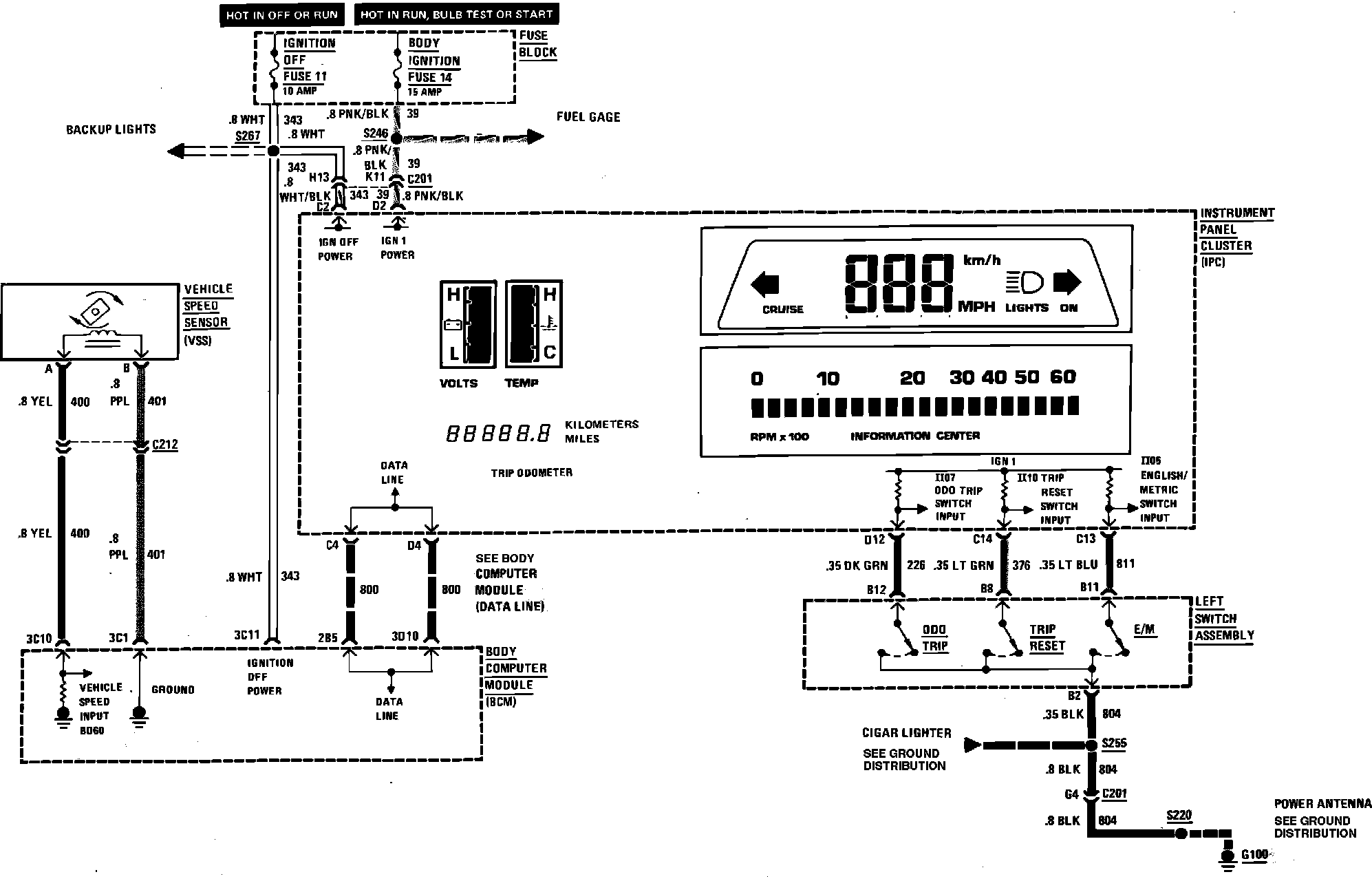

Instrument Cluster Wiring Circuit (Odometer, Speedometer & Trip Odometer):
