Temperature Switch (Warning Indicator)
Temperature Switch (Warning Indicator)

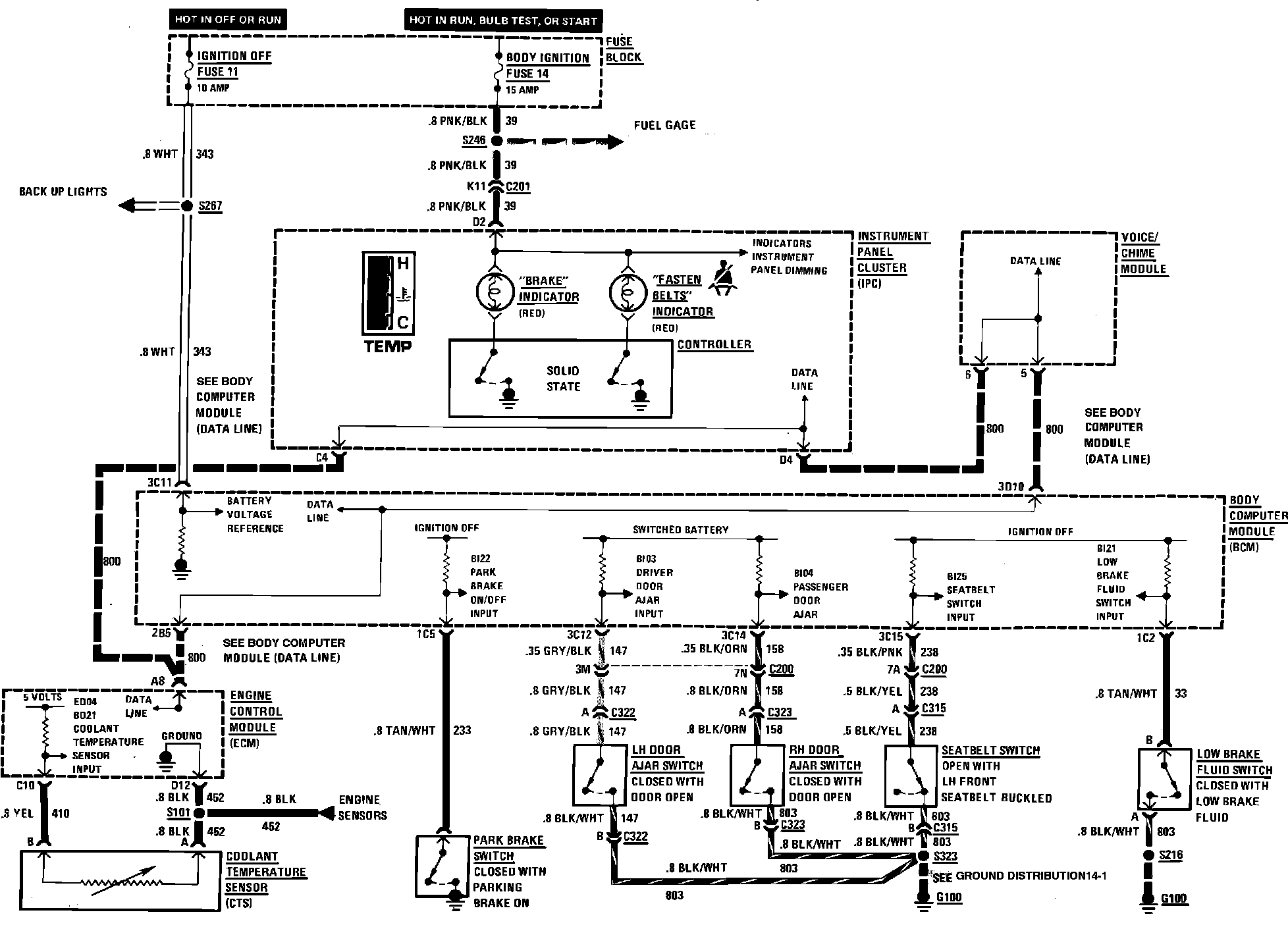

Warning Alarms Wiring System Wiring Circuit (Brake Fluid, Park Brake, Seat Belt, Temperature Gauge & Volt Meter):
