Parking Lamp

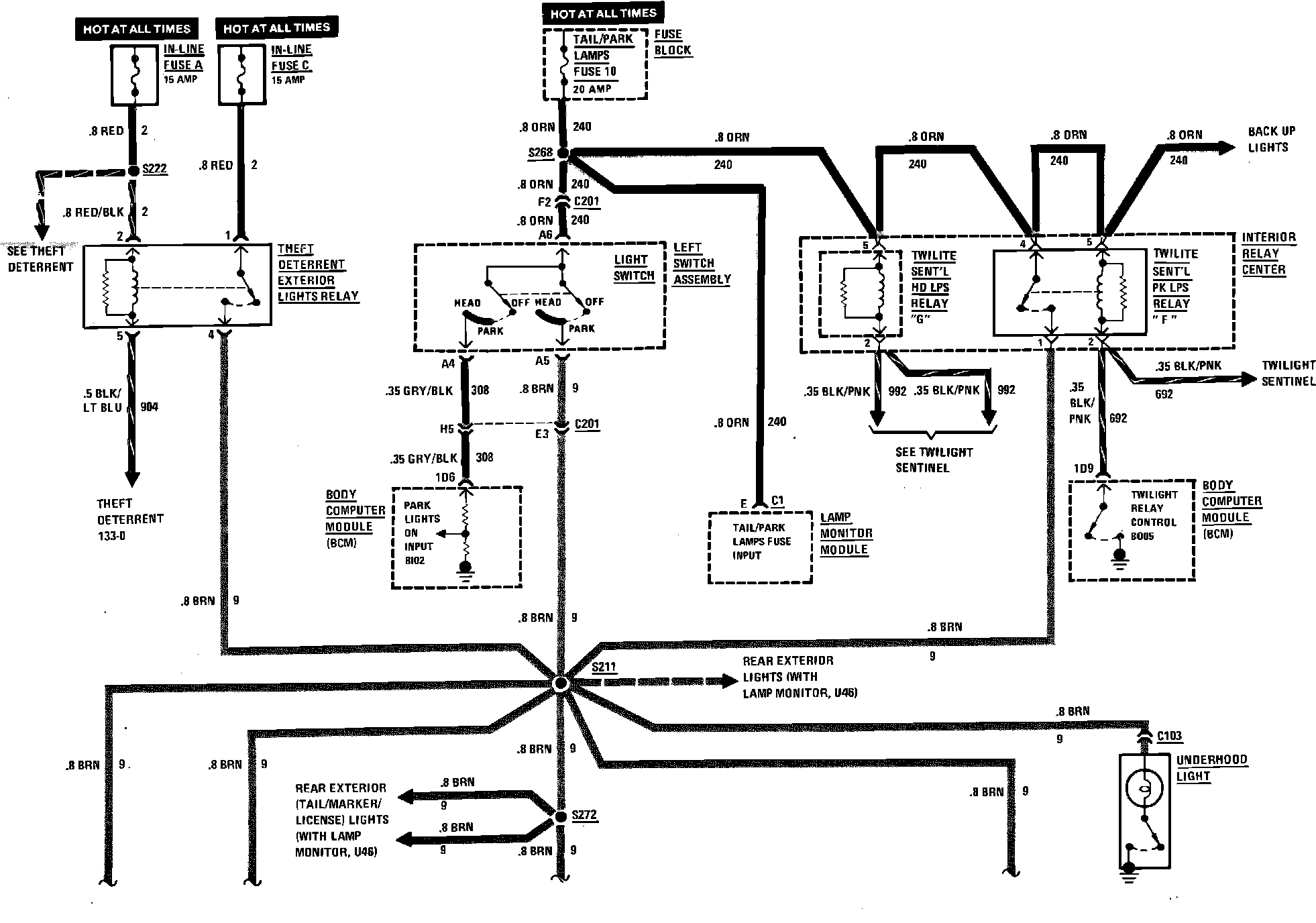

Exterior Lighting W/Lamp Monitor Wiring Circuit (Console Shift Illumination, Cornering, Front Marker, Front Park & Underhood, Part 1 Of 2):

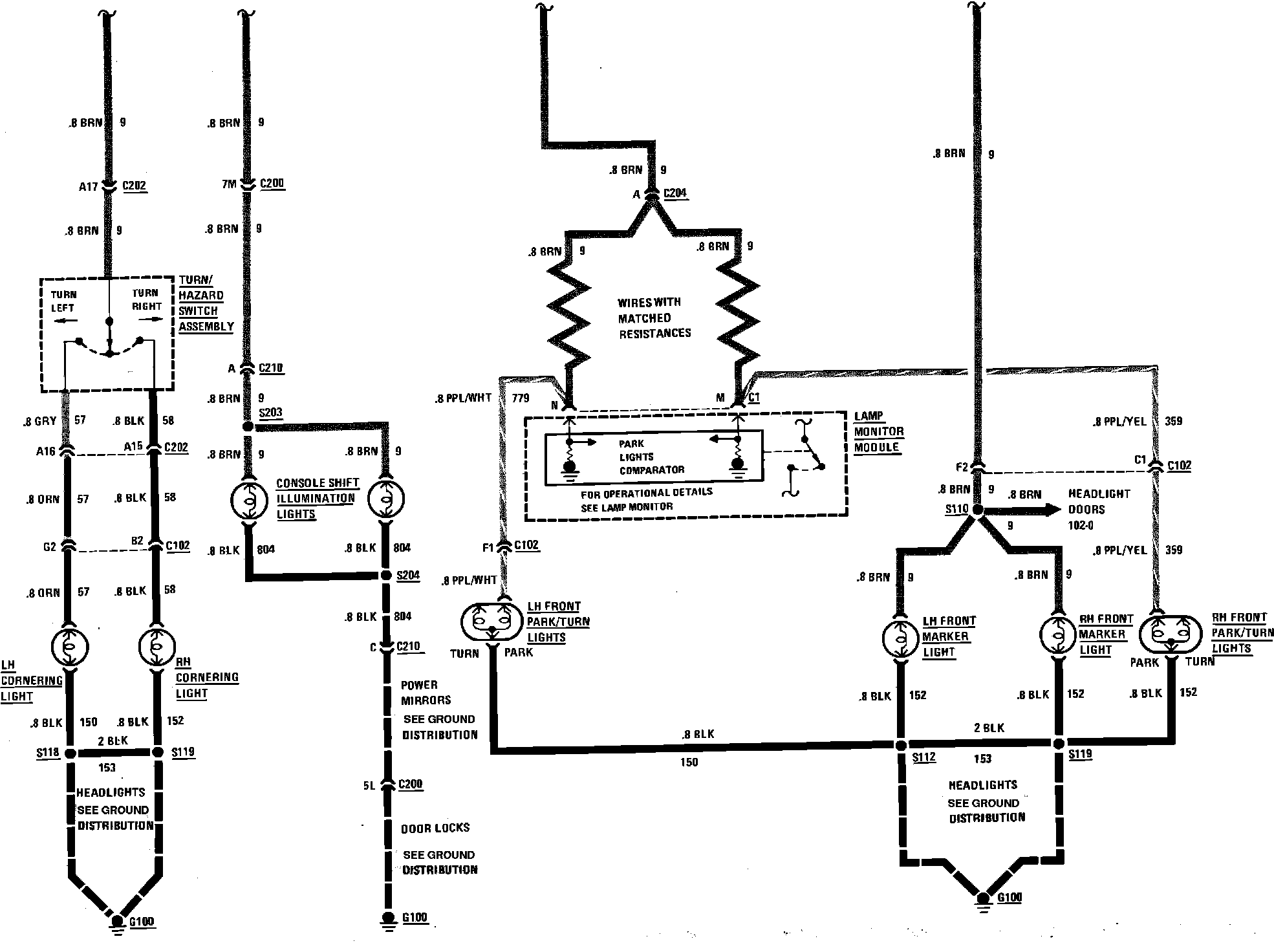

Exterior Lighting W/Lamp Monitor Wiring Circuit (Console Shift Illumination, Cornering, Front Marker, Front Park & Underhood, Part 2 Of 2):
