Radio Remote Tape Player
Radio Remote Tape Player

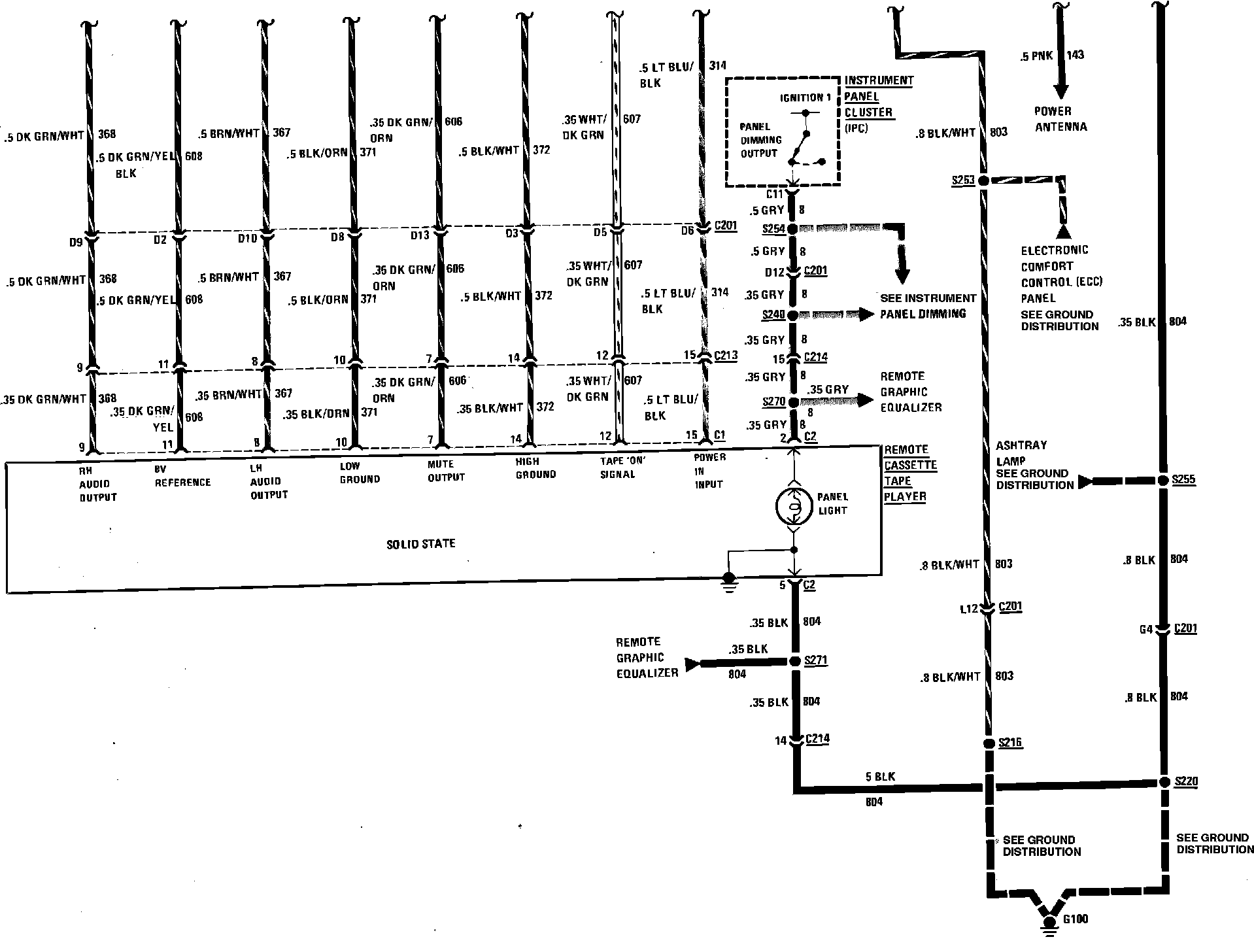

Radio Remote Tape Player Wiring Circuit (Part 1 Of 2):

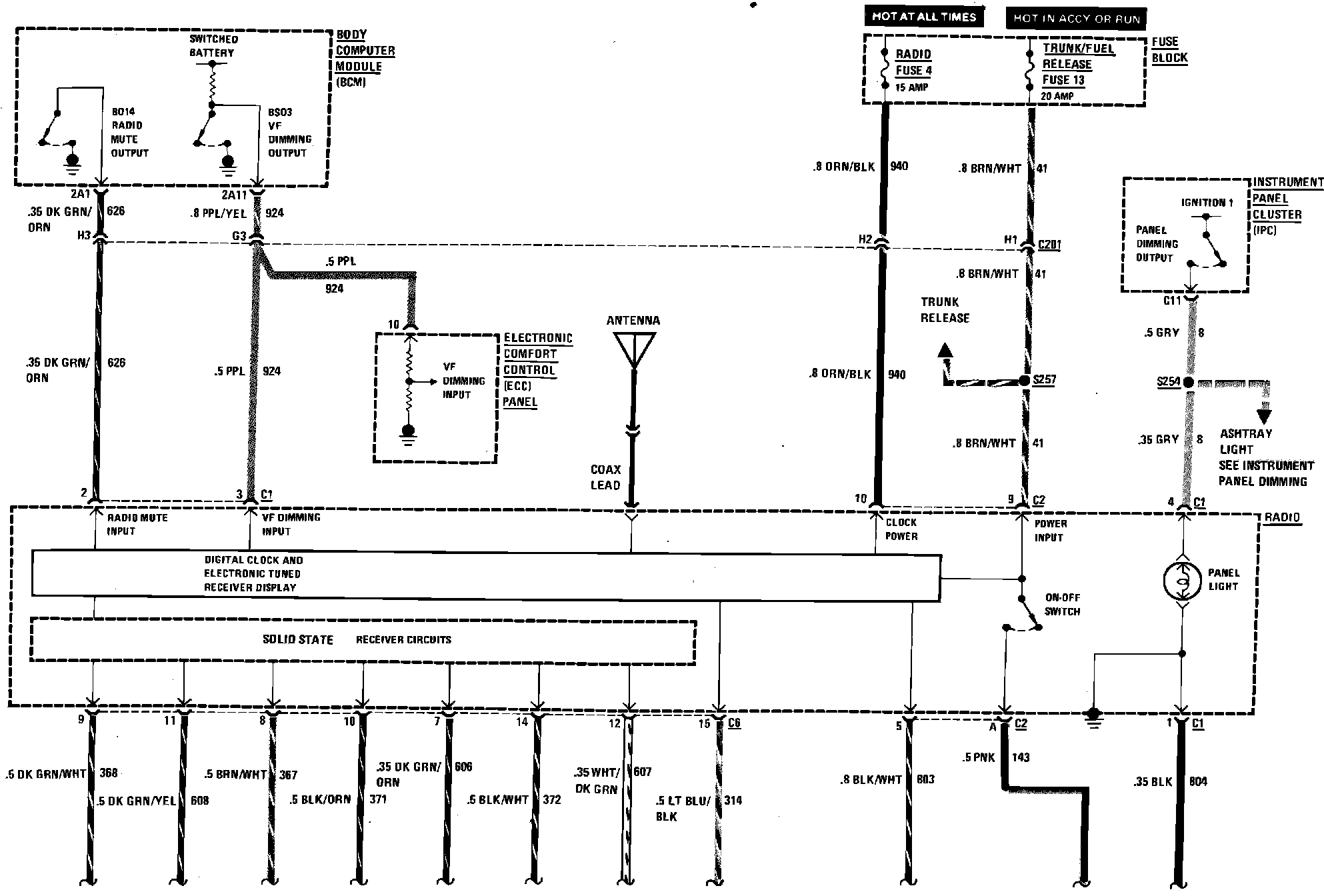

Radio Remote Tape Player Wiring Circuit (Part 2 Of 2):
