Ground, Power & System Monitor
Ground, Power & System Monitor

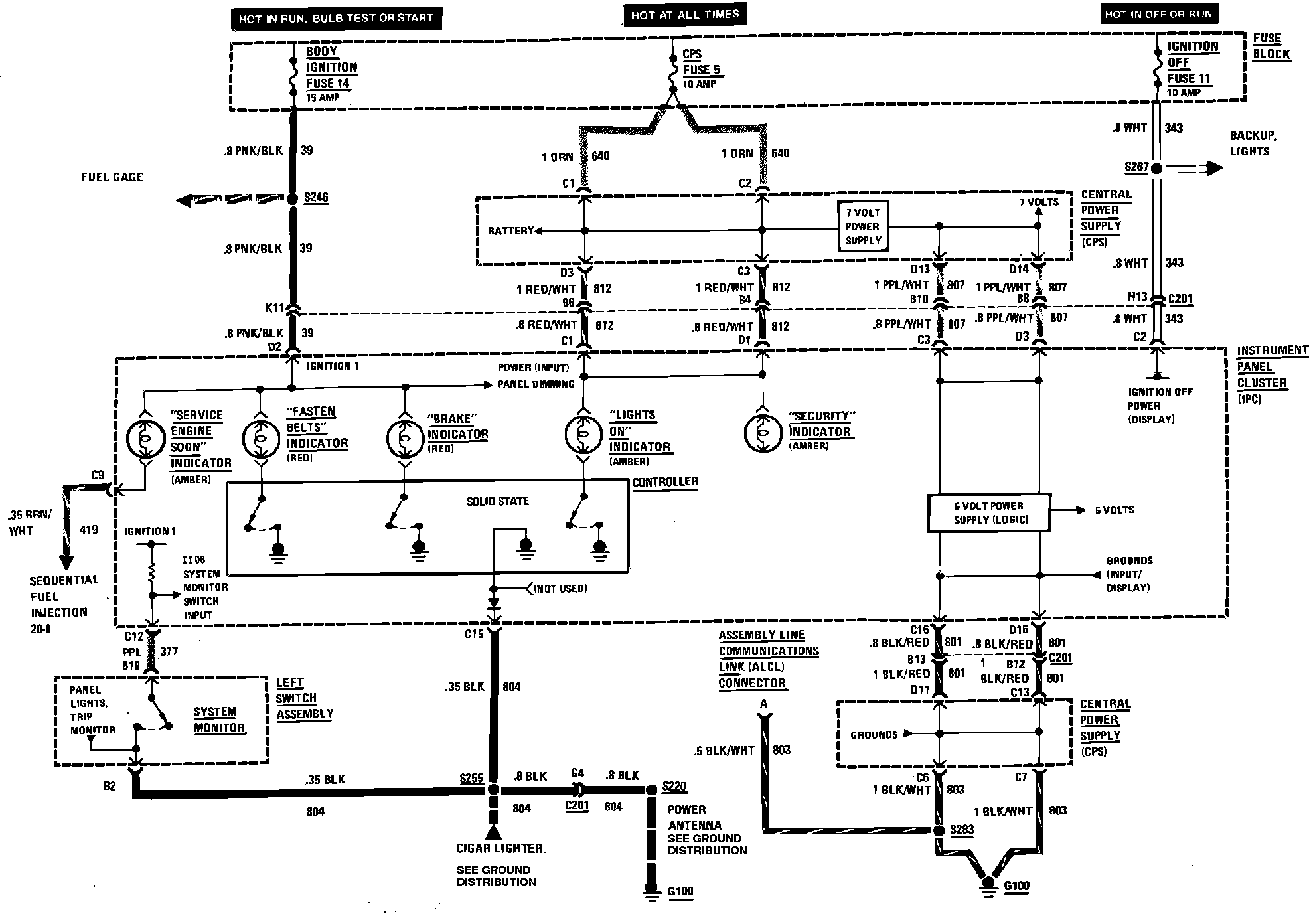

Instrument Cluster Wiring Circuit (Ground, Power & System Monitor):
