Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1986
>>
Toronado V6-231 3.8L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

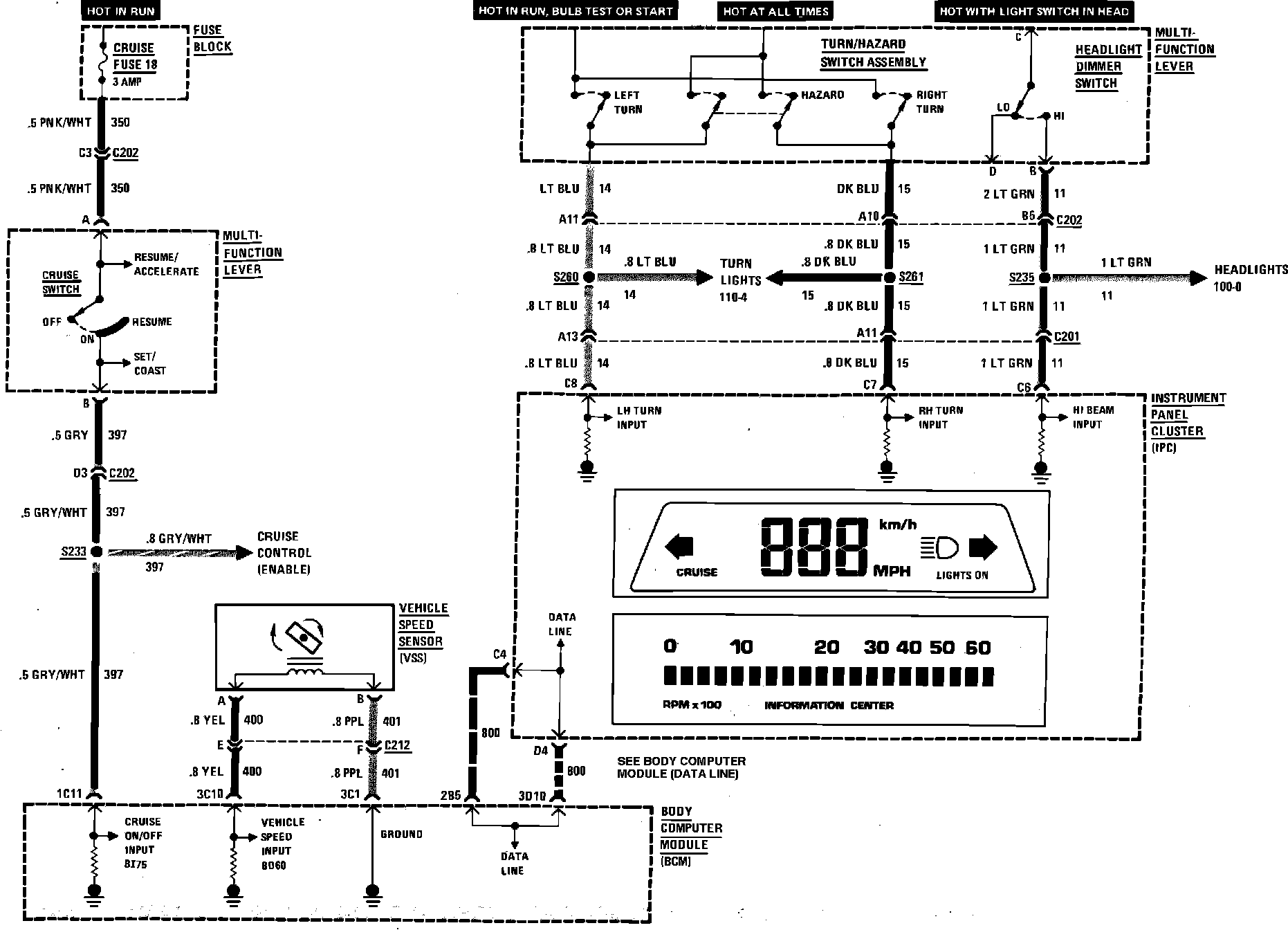

Instrument Cluster Wiring Circuit (Indicators):
