Warning Alarms System
Warning Alarms System

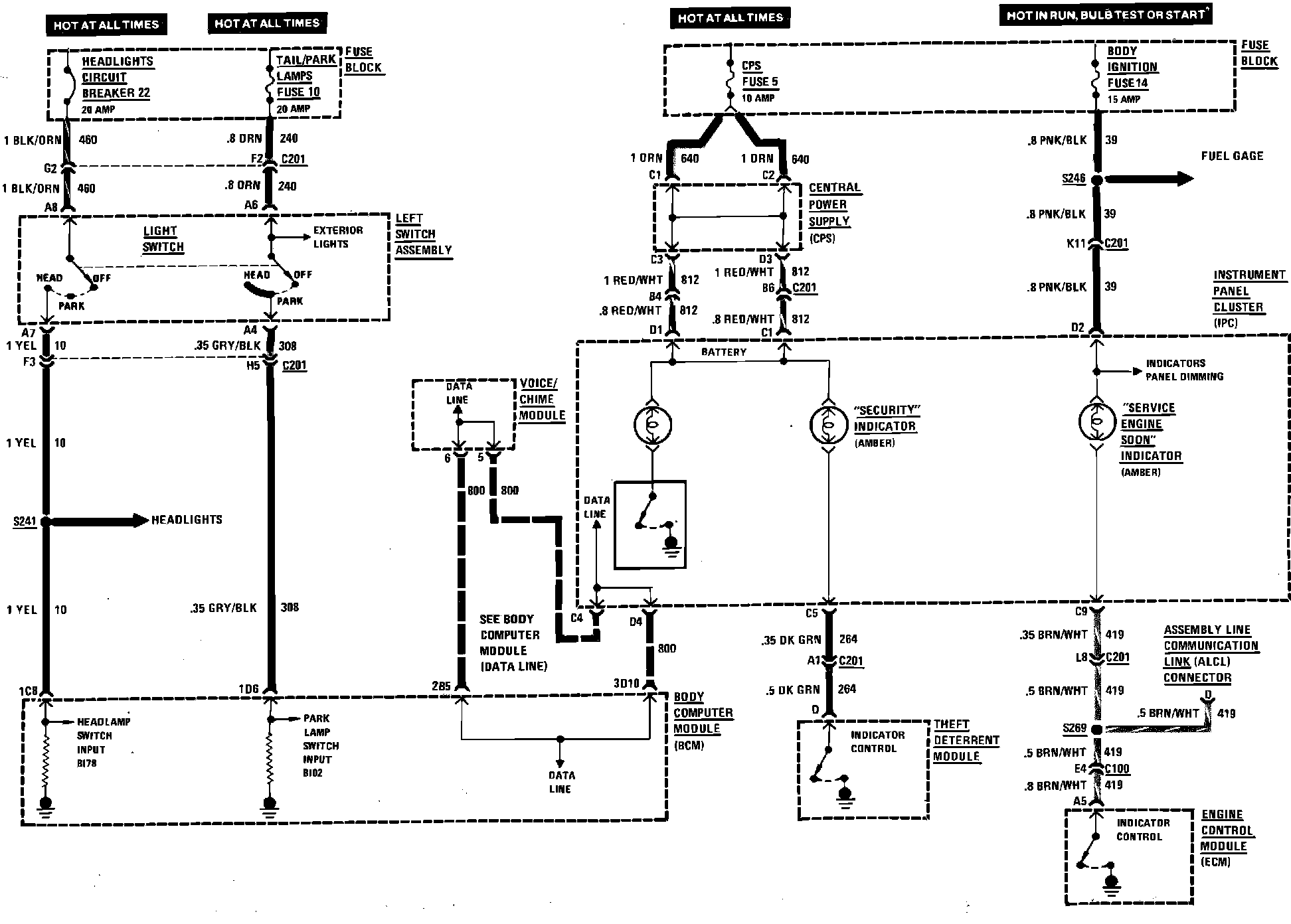

Warning Alarms Wiring Circuit (Instrument Cluster Indicators):
