Home >> Oldsmobile >> 1986 >> Toronado V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

BCM Wiring Diagram (Part 1 of 2):



BCM Wiring Diagram (Part 2 of 2):

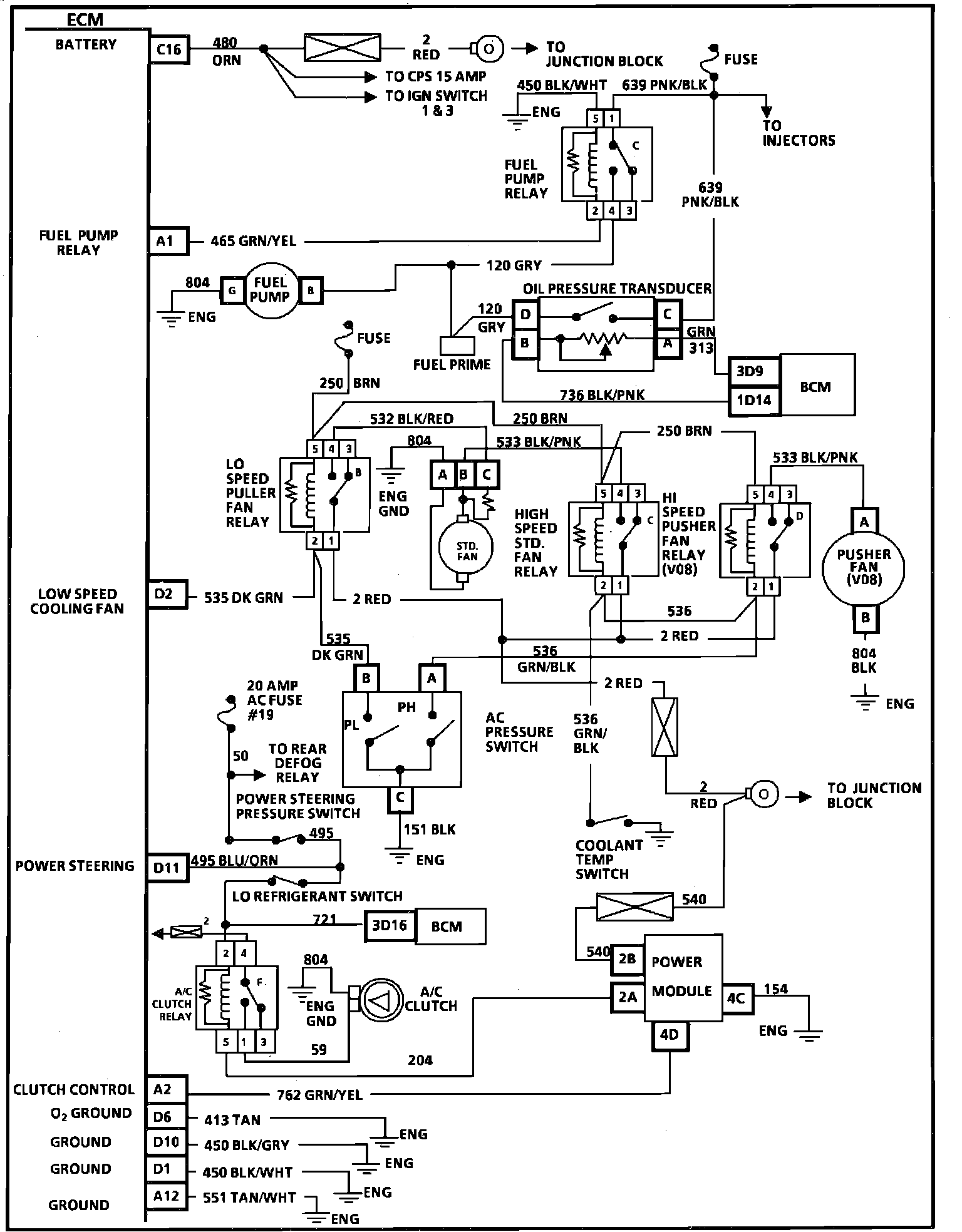

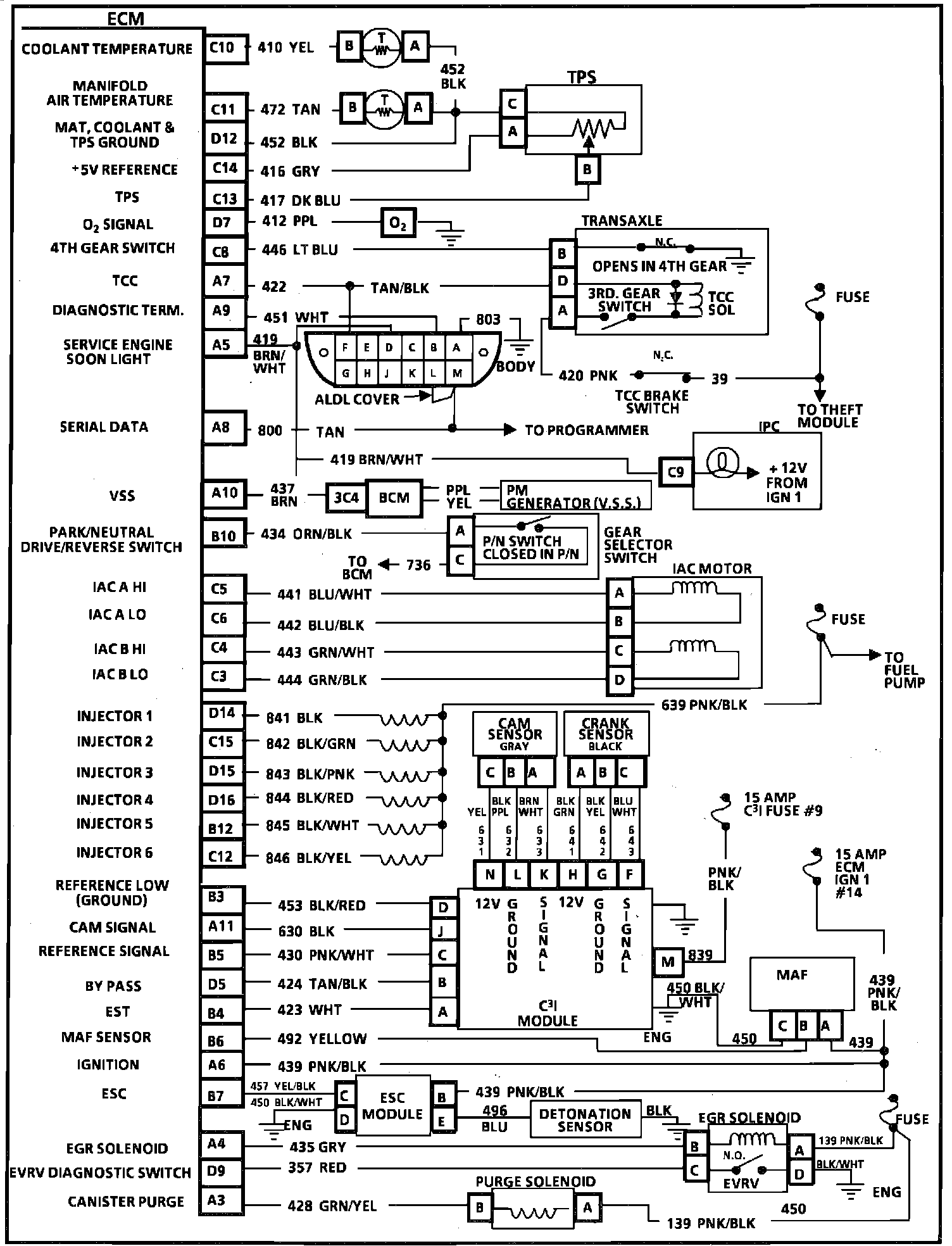

ECM Wiring Diagram (Part 1 of 2):



ECM Wiring Diagram (Part 2 of 2):
