With Electronic Tuning

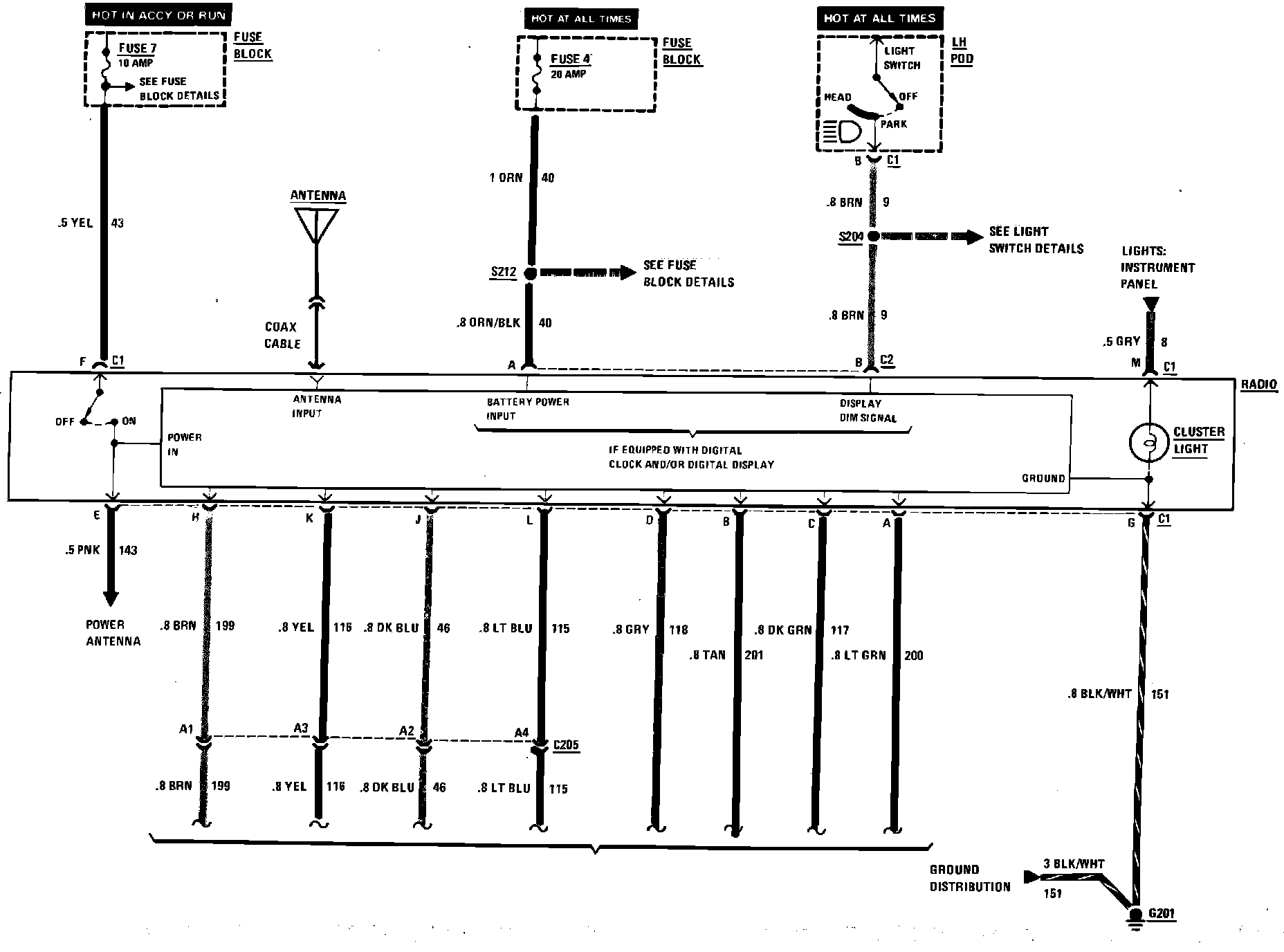

Radio Wiring Circuit (Electronic Tuned):



Radio Wiring Circuit (Electronic Tuned):
