Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
Turn Signal Indicator
Turn Signal Indicator

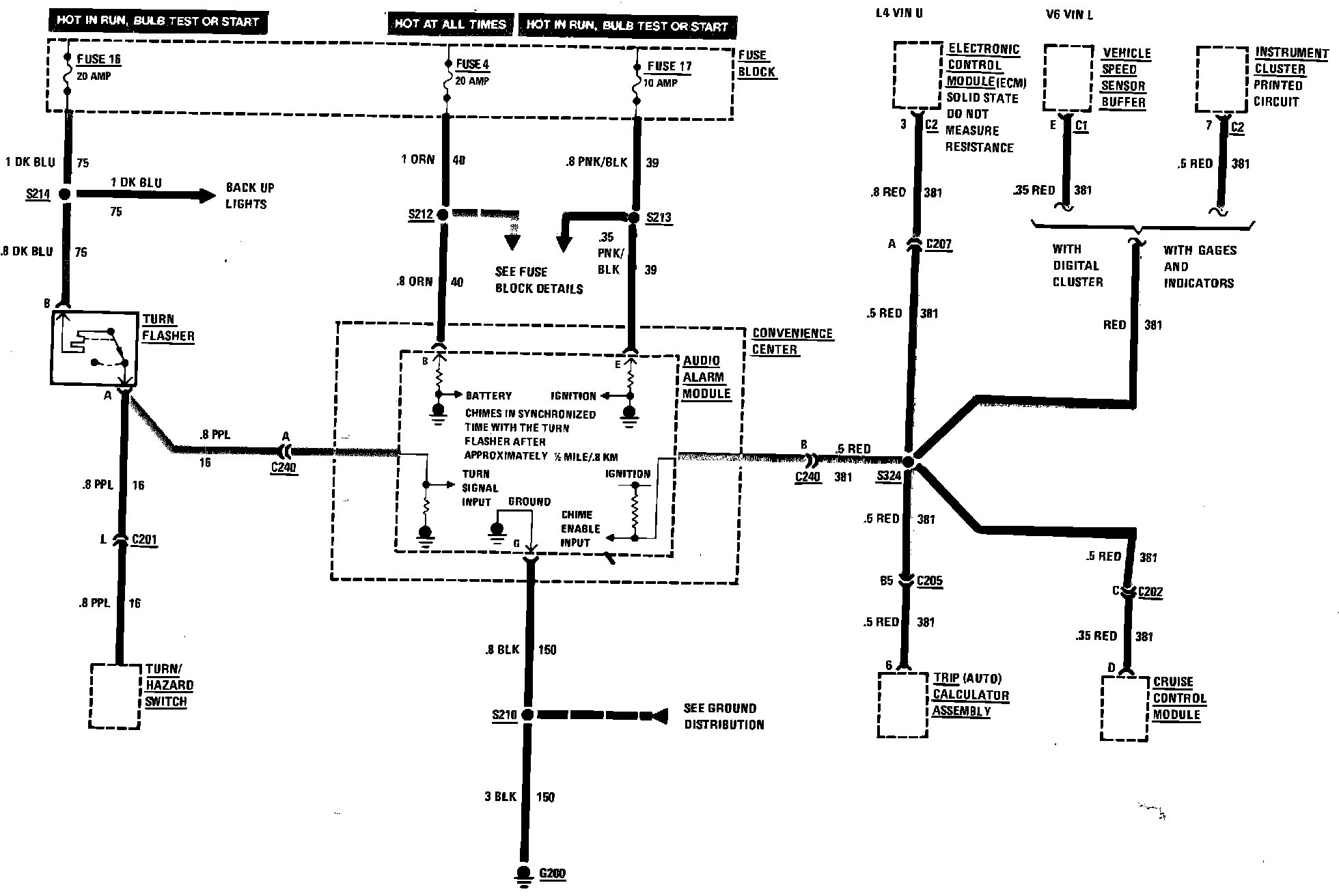

Turn-Signal-On Reminder Wiring Circuit:
