Home >> Oldsmobile >> 1987 >> Calais FWD L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID

Fuse: Application and ID

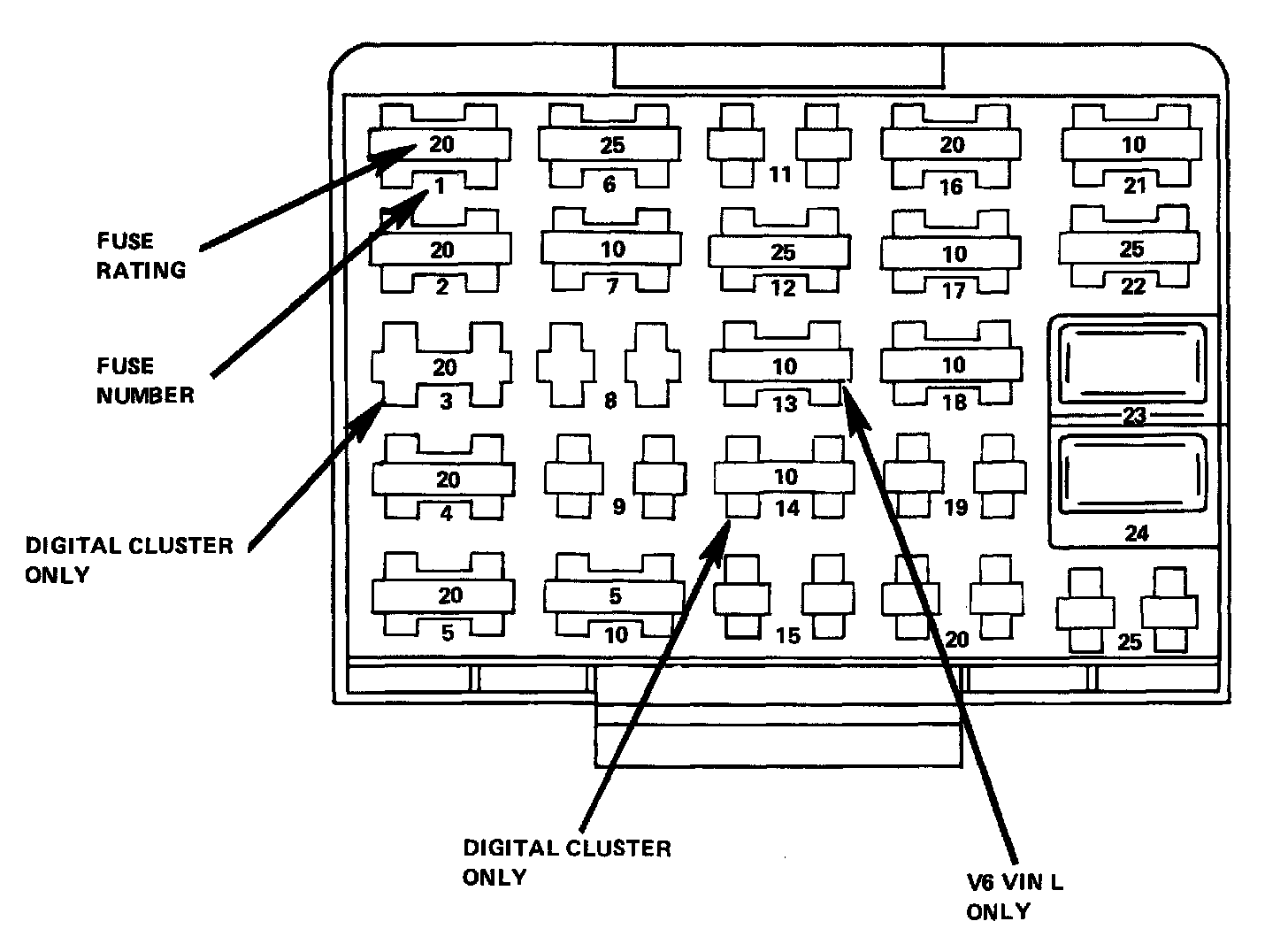

Front View of Fuse Block





Fuse Block Description/Legend
