Grounds, Power, Injectors & Service Engine Soon (SES) Indicators
Grounds, Power, Injectors & Service Engine Soon (SES) Indicators

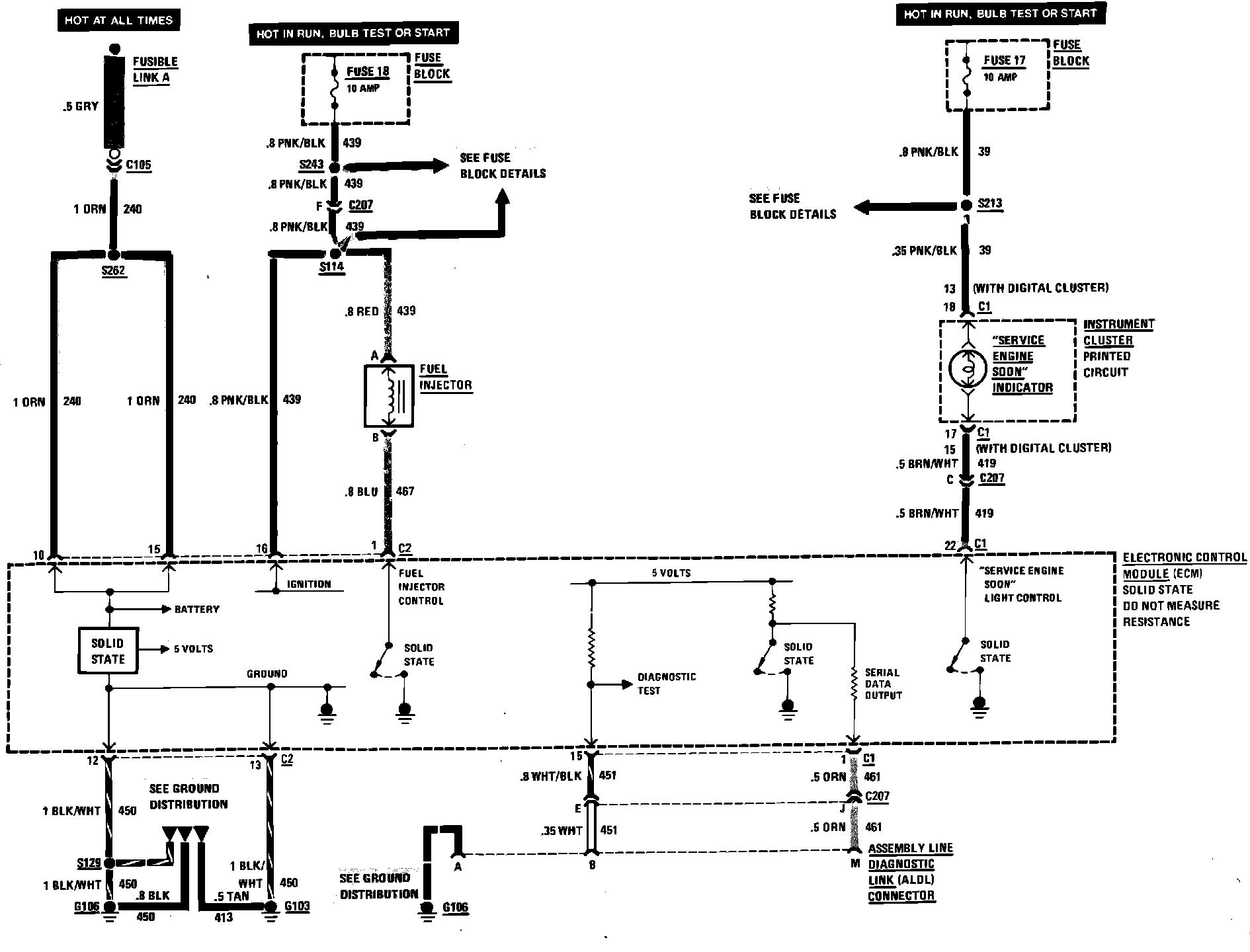

Fuel Injection Wiring Circuit (Power Ground, Injector & Service Engine Soon):
