Diagnostic Dwell Lead

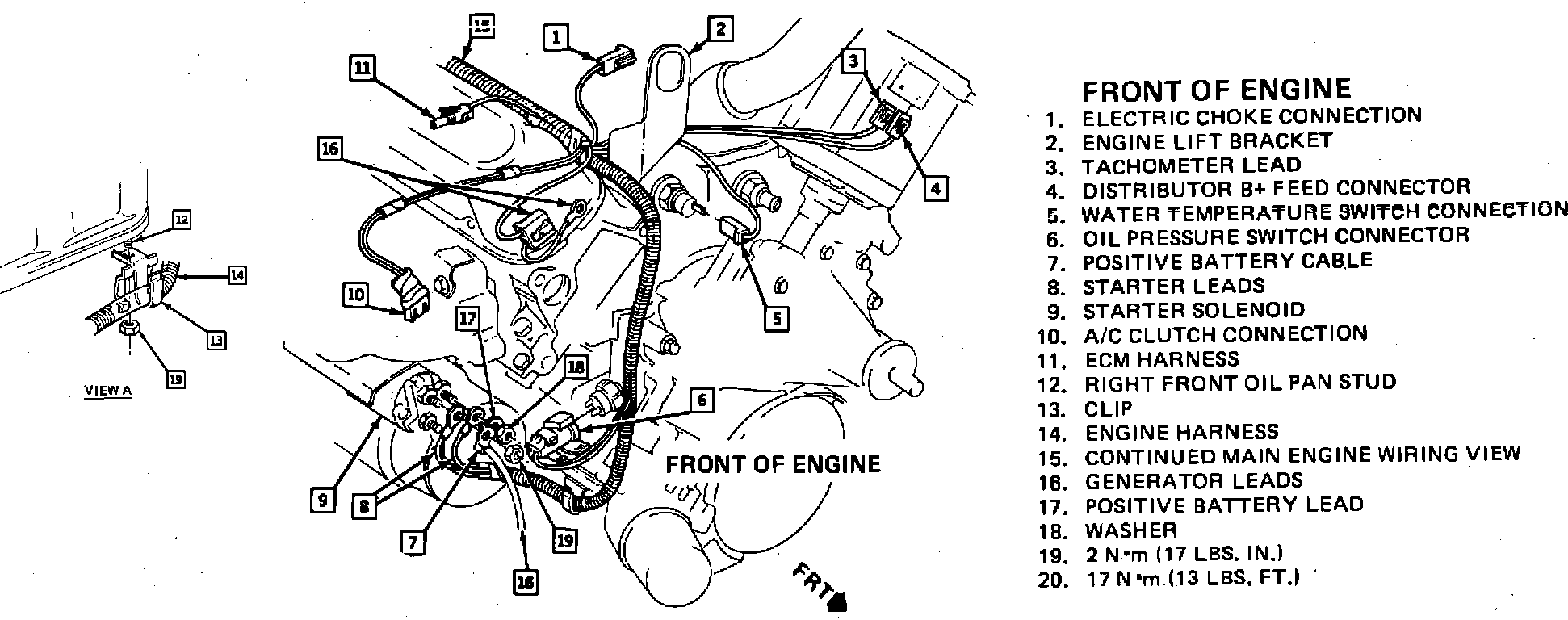

Engine Wiring (Part 1 Of 2).:

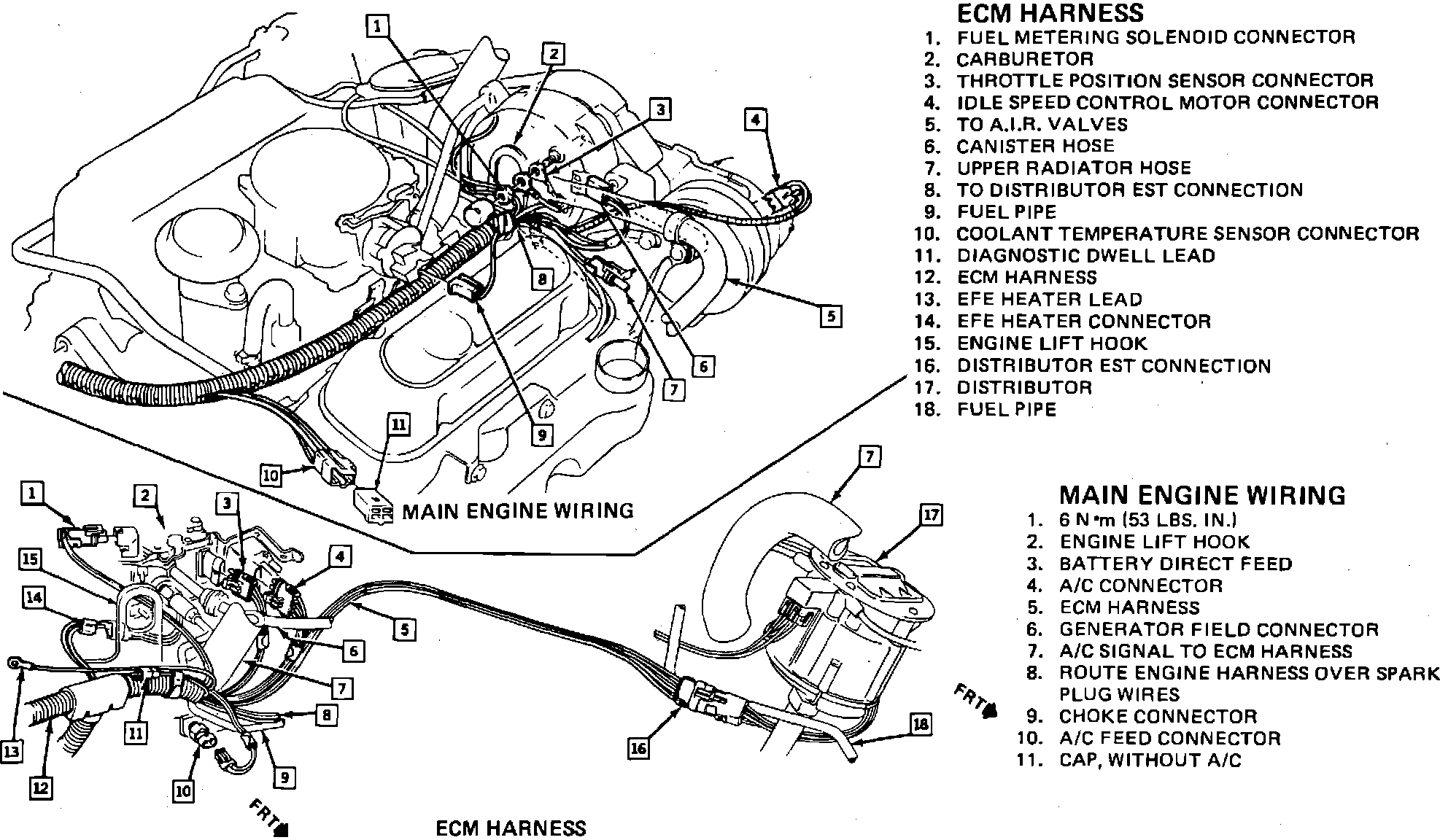

Engine Wiring (Part 2 Of 2).:




Top Front RH Side Of Engine

Applicable to: 1987 V6-231/3.8L VIN A, Cutlass Supreme & Regal
