Home >> Oldsmobile >> 1987 >> Cutlass V8-307 5.0L VIN 9 4-bbl HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Panel Illumination >> With Gauges Cluster

With Gauges Cluster

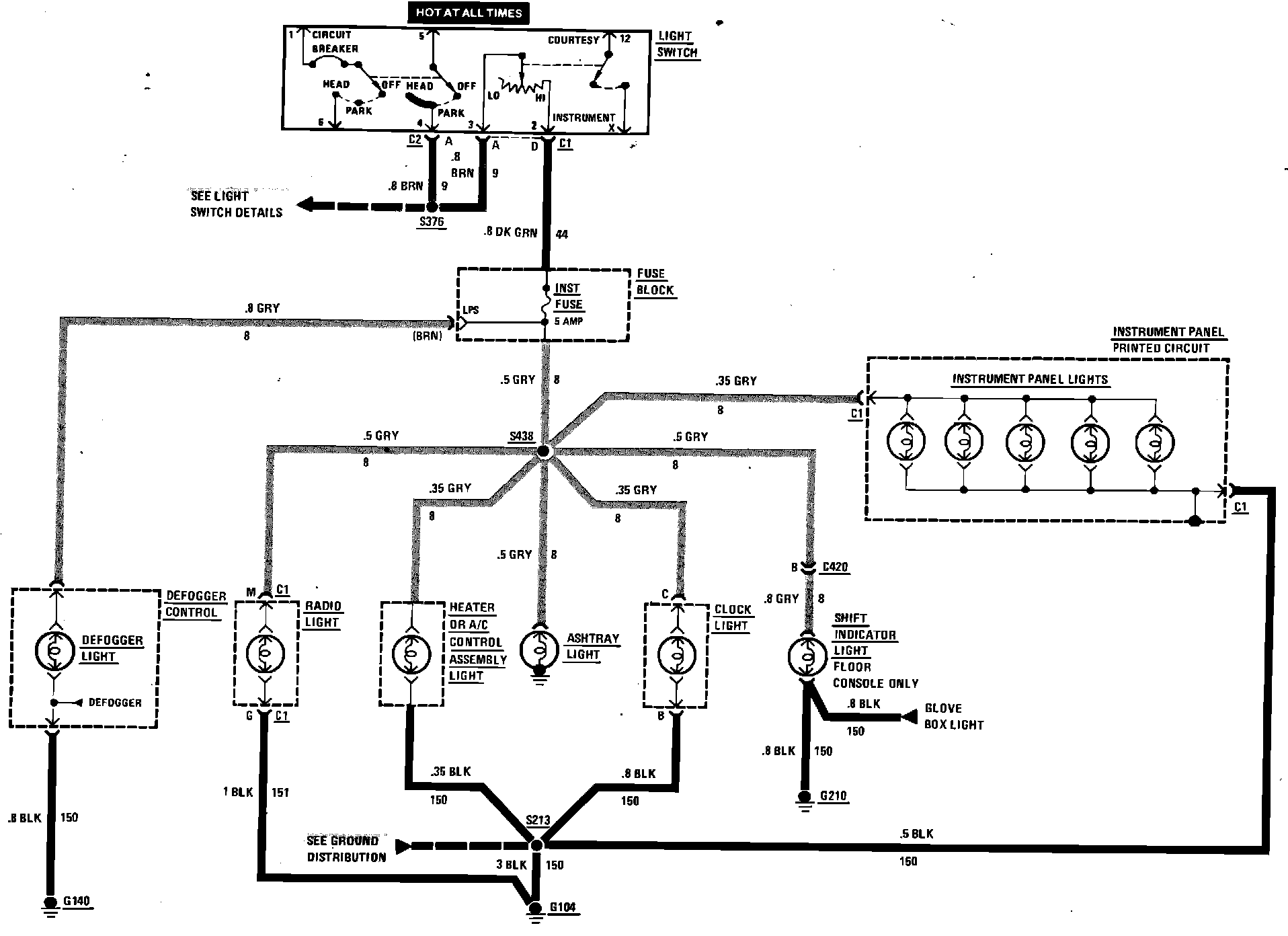

Interior Lamp Dimming Wiring Circuit (W/Gauge Cluster):
