Home >> Oldsmobile >> 1987 >> Cutlass V8-307 5.0L VIN 9 4-bbl HP >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Lighting Diagrams

Lighting Diagrams

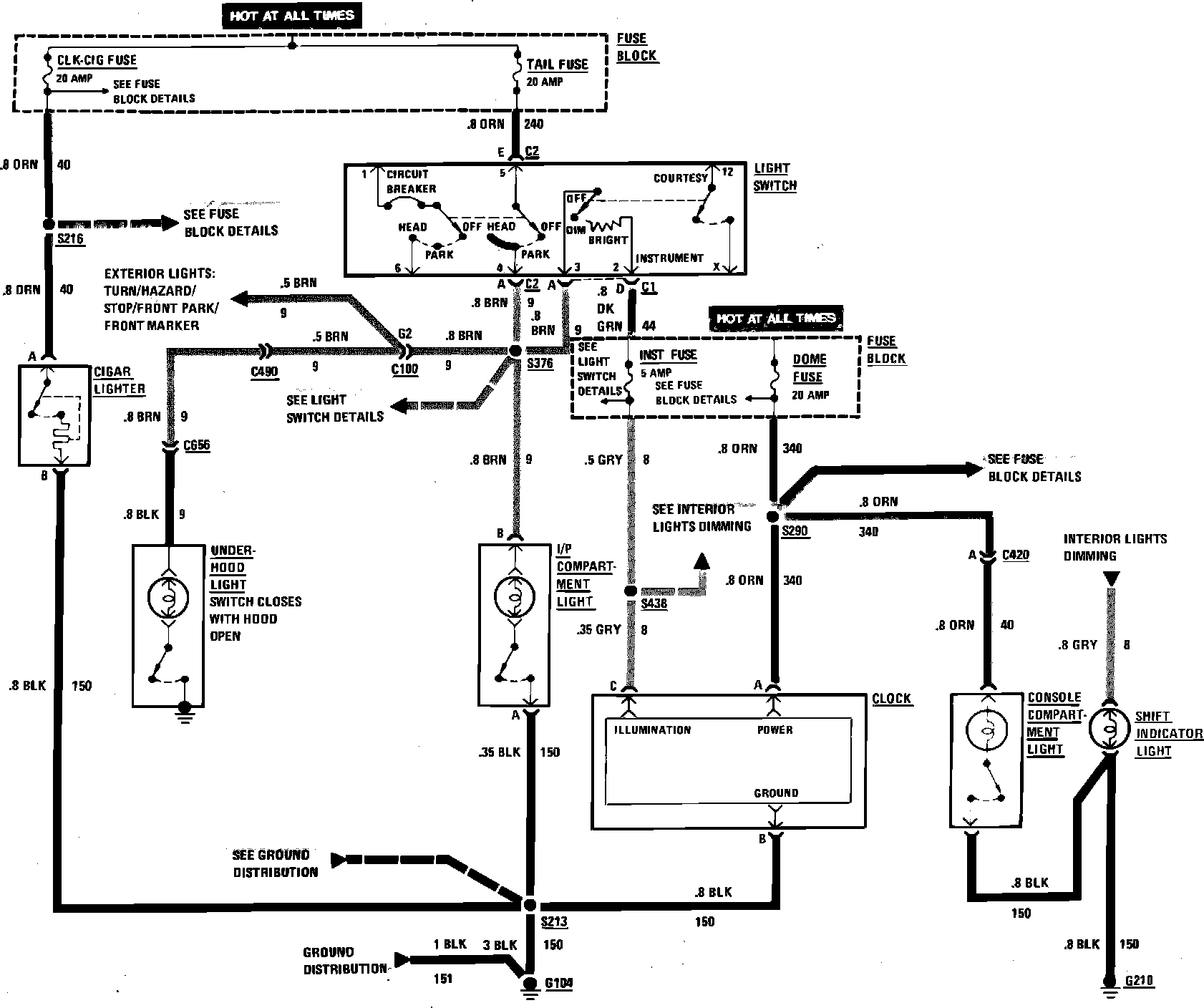

Interior Lamp Wiring Circuit (Cirgar Lighter, Console, I/P, Shift Indicator & Underhood Lamp:
